T itle

S ingle-molecule observations of R NA -R NA kissing

interactions in a D NA nanostructure

A uthor(s )

T akeuchi, Y osuke; E ndo, Masayuki; S uzuki, Y uki; Hidaka,

K umi; D urand, Guillaume; D ausse, E ric; T oulmé, J ean

J acques; S ugiyama, Hiroshi

C itation

B iomaterials S cience (2016), 4: 130-135

Is s ue D ate

2016-01-01

UR L

http://hdl.handle.net/2433/218508

R ig ht

©

2015 T he R oyal S ociety of C hemistry.

T ype

J ournal A rticle

(2)

Science

PAPER

Cite this:Biomater. Sci., 2016,4, 130

Received 25th July 2015, Accepted 25th September 2015

DOI: 10.1039/c5bm00274e

www.rsc.org/biomaterialsscience

Single-molecule observations of RNA

_–

RNA kissing

interactions in a DNA nanostructure

†

Yosuke Takeuchi,

a

Masayuki Endo,*

b

Yuki Suzuki,

a

Kumi Hidaka,

a

Guillaume Durand,

c,d

Eric Dausse,

c,d

Jean-Jacques Toulmé*

c,d

and

Hiroshi Sugiyama*

a,b

RNA molecules uniquely form a complex through speci_ﬁc hairpin loops, called a kissing complex. The kissing complex is widely investigated and used for the construction of RNA nanostructures. Molecular switches have also been created by combining a kissing loop and a ligand-binding aptamer to control the interactions of RNA molecules. In this study, we incorporated two kinds of RNA molecules into a DNA

origami structure and used atomic force microscopy to observe their ligand-responsive interactions at the single-molecule level. We used a designed RNA aptamer called GTPswitch, which has a guanosine tripho-sphate (GTP) responsive domain and can bind to the target RNA hairpin named Aptakiss in the presence of

GTP. We observed shape changes of the DNA/RNA strands in the DNA origami, which are induced by the GTPswitch, into two di_ﬀerent shapes in the absence and presence of GTP, respectively. We also found that the switching function in the nanospace could be improved by using a cover strand over the kissing loop of

the GTPswitch or by deleting one base from this kissing loop. These newly designed ligand-responsive aptamers can be used for the controlled assembly of the various DNA and RNA nanostructures.

Introduction

Structural diversity of RNA is one of the important properties of RNA molecules, which exhibit unique functions such as specific complex formation and catalysis. One of the variations of the complex formation between RNA molecules includes a

“kissing complex,”which enables assembly of complementary RNA loops via Watson–Crick base pairing.1–8

This specific kissing complex formation with native RNA motifs has been used to create various RNA architectures such as polygonal structures and three-dimensional assemblies.9–11

Aptamers with a kissing RNA loop have been artificially developed byin vitro selection.12–15

A ligand-responsive kissing aptamer, called a gua-nosine triphosphate switch (GTPswitch), has been recently reported.16 This GTPswitch has a GTP-binding domain and a kissing domain that binds to a target RNA loop (Aptakiss) in the presence of GTP.16 Herein, we tried to visualize this unique

ligand-responsive switching interaction between the GTPswitch and its counterpart Aptakiss at single-molecule resolution.

Direct observation of interactions between biomolecules by using atomic force microscopy (AFM) is one of the practical methods for characterizing the properties of complex for-mation.17Especially using a high-speed AFM and nano-sized DNA origami scaﬀold called DNA frame,17,18 dynamic for-mation of G-quadruplex structure and double-stranded DNA has been visualized.19–22

This single-molecule observation system should be used to observe the interactions of kissing aptamers for characterizing their properties.

In this study, we placed the GTPswitch and the target kissing loop Aptakiss into the cavity of a DNA frame and directly observed their interaction (Fig. 1a).19–22

The GTPswitch was generated based on a KG51 RNA kissing hairpin, which can bind to the Aptakiss only in the presence of GTP.16 We elongated the 5′ end of each RNA molecule and hybridized these molecules to the supporting DNA strands. These con-structs were incorporated into the DNA frame through four ssDNA linkers (Fig. 1b). When the GTPswitch binds to the Apta-kiss upon the addition of GTP, the configuration change of the supporting DNA strands from the unbound “double-loop” to the“X-shape”should be observed in the DNA frame (Fig. 1c). We investigated the ligand-responsive binding of the GTPswitch to the Aptakiss by observing the structural changes in the sup-porting DNA strands in the DNA frame, and examined the experimental conditions to improve the switching function.

†Electronic supplementary information (ESI) available. See DOI: 10.1039/ c5bm00274e

a_{Department of Chemistry, Graduate School of Science, Kyoto University,}

Kitashirakawa-oiwakecho, Sakyo-ku, Kyoto 606-8502, Japan

b_{Institute for Integrated Cell-Material Sciences (WPI-iCeMS), Kyoto University,}

Yoshida-ushinomiyacho, Sakyo-ku, Kyoto, 606-8501, Japan. E-mail: [email protected], [email protected]

c_{ARNA laboratory, University of Bordeaux, 146 rue Léo Saignat, 33076 Bordeaux,}

France. E-mail: [email protected]

d_{Inserm U869, 146 rue Léo Saignat, 33076 Bordeaux, France}

Open Access Article. Published on 06 October 2015. Downloaded on 01/03/2017 02:49:03.

This article is licensed under a

Creative Commons Attribution 3.0 Unported Licence.

View Article Online

(3)

Experimental section

Preparation of RNA molecules

A template dsDNA containing T7 promoter was used to prepare RNA by in vitro transcription. The sequences are shown in ESI (Fig. S1 and Table S1†). Transcription was per-formed in a solution containing 0.5 µM template dsDNA, 40 mM Tris-HCl ( pH 8.0), 10 mM DTT, 23 mM MgCl2, 2 mM spermidine, 4.0 mM NTPs, and 2.5 U µL−1T7 RNA polymerase (Takara Bio, Kusatsu, Japan) at 37 °C for 20 h. The transcribed RNA was purified by polyacrylamide gel extraction. Gel piece containing target RNA was cut out from the gel and crushed. Then RNA was extracted from the crushed gel pieces using elution buﬀer (0.3 M NaOAc buﬀer pH 5.2, 10 mM EDTA). The eluted RNA was collected by ethanol precipitation. The pro-ducts were confirmed by gel electrophoresis.

Preparation of the DNA frame and incorporation of RNA molecules

The DNA frame and DNA strands containing RNA molecules were prepared separately. Then the DNA frame and two DNA strands were annealed together. The DNA frame was prepared as described previously. Briefly, for the preparation of the DNA frame,22b _{a sample solution containing 25 nM M13mp18,} 125 nM staple strands (5 eq.), 10 mM Tris-HCl ( pH 7.6), and 10 mM MgCl2 was annealed from 75 °C to 15 °C at a rate of −1.0 °C min−1.19For the preparation of DNA strands

contain-ing aptamers, sample solutions containcontain-ing 0.83 μM Aptakiss (or KG51, or GTPswitch), 0.17 μM supporting DNA strands (AC96 and AC32 or BD96 and BD32, see ESI Fig. S1†), 10 mM Tris-HCl ( pH 7.6), and 10 mM MgCl2 were annealed from 75 °C to 15 °C at a rate of−1.0 °C min−1.

After the first annealing, 8.0 µL of DNA frame solution, 6.0 µL of Aptakiss solution, and 6.0 µL of KG51 (or GTPswitch) solution were mixed and then annealed from 40 °C to 15 °C at a rate of−1.0 °C min−1. At this second annealing, the solution

contains 10 nM DNA frame and 50 nM DNA strands contain-ing aptamers. These DNA frames havcontain-ing target RNA/DNA hybrid strands were purified by a gel filtration column (Seph-acryl 400, GE Helthcare, Uppsala, Sweden).

AFM imaging of the kissing interaction

AFM images were obtained using Dimension FastScan (Bruker AXS, Madison, WI) with cantilever, BL-AC40TS-CS (Olympas, Tokyo, Japan). Purified samples were diluted ten times using observation buffer. Observation buffer for Aptakiss-KG51 con-tained 10 mM Tris-HCl pH 7.6, and 10 mM MgCl2; for Apta-kiss-GTPswitch (with cover strand), 10 mM Tris-HCl pH 7.0, and 10 mM MgCl2, (1 mM GTP or ATP); for Aptakiss-GTPswitch mutant, 10 mM MOPS-KOH pH 6.5, 10 mM MgCl2, and 50 mM KCl, (1 mM GTP or ATP). The diluted solution (10 µL) was adsorbed onto mica plate for 5 min at room temperature and then washed three times using the same observation buffer to remove unadsorbed DNA strands and DNA frames. Scanning was performed in the same buffer solution using tapping mode.

Results and discussion

Assembly of the target RNA molecules in the DNA frame

We used a DNA frame to evaluate the ligand-dependent activity of the GTPswitch at the single-molecule level. The DNA frame has a cavity (approximately 40 nm × 40 nm), in which four con-nectors are introduced to anchor the DNA strands. A pair of kissing RNA hairpins was placed in the cavity by incorporation into individual supporting DNA strands (DNA strands AC and BD), which were tethered between the specific connectors. Each strand comprised three parts: long ssDNA (AC96 or BD 96), short ssDNA (AC32 or BD32), and RNA that carried the designated sequence at its 3′end (Fig. 1b). Here, we prepared three RNA/DNA hybrid strands: AC–Aptakiss, BD–KG51, and BD–GTPswitch. A pair of strands (AC–Aptakiss and BD–KG51 or BD–GTPswitch) was incorporated into the DNA frame through ssDNA linkers in the strands (Fig. 1b and S1†). Each linker a′, b′, c′, and d′ was connected to the corresponding connector a, b, c, and d, respectively. The binding of the RNA loops (kissing complex formation) was identified by configur-ation changes of the supporting DNA strands from the double-loop (unkissing) to the X-shape (kissing) (Fig. 1c). The diﬀerence in these structures was resolved in direct AFM imaging and quan-tified by statistical analysis of the AFM images (Fig. S2†).

Fig. 1 Single-molecule observation system for investigation of the interaction of kissing RNA aptamers using a DNA frame. (a) RNA apta-mers used in this study; Aptakiss and its counterpart KG51 aptamer and GTPswitch. The GTPswitch can bind to the Aptakiss in the presence of GTP. (b) Schematic representation of aptamers and DNA strands in-corporated into the DNA frame. (c) Incorporation of the Aptakiss into the a–c site and KG51 or GTPswitch into the b–d site in the DNA frame. When the GTPswitch is incorporated into the DNA frame, GTP should induce conﬁguration change from the double-loop to the X-shape.

Biomaterials Science Paper

(4)

Observation of the interactions between KG51 and the GTPswitch in the DNA frame

First, we examined the interaction of a pair of kissing RNA hairpins, Aptakiss and KG51, in the DNA frame (Fig. 2a). KG51 is known to be capable of binding to the Aptakiss without the need for any additional cofactors and was used as an appropri-ate positive control for evaluating the data using this obser-vation system. Quantitative analysis of micrographs of this sample revealed a high percentage of X-shaped structure (84.9%), suggesting that the KG51–Aptakiss system worked well in the DNA frame.

We next substituted KG51 with the GTPswitch to examine the ligand-dependent binding property of the GTPswitch to the Aptakiss. Contrary to our expectation from the previous bulk experiment, 75.1% of DNA frame were observed to have

the X-shaped structure even in the absence of GTP; this per-centage was only ∼10% lower than that obtained for KG51

(Fig. 2c and Table 1). This unexpected high binding might have occurred because of an interaction between the bases in the kissing loop of the Aptakiss and the complementary bases of the unfolded free aptaswitch that was not previously detected in solution.16_{We note that the two RNA sequences} are located in relatively close positions in the DNA frame. The distance between the Aptakiss and the GTPswitch was esti-mated to be ∼10 nm. Assuming that the motion of each

aptamer is limited to a sphere with a diameter of 10 nm, the hypothetical concentration can be estimated to be ∼1 mM.

Although the molecular movement is constrained by fixation to the nanocavity, the molecules should behave as if they exist at a high concentration. This proximity eﬀect may result in the ligand-independent binding.

Observation of the switching function of the GTPswitch with a cover strand

To improve the ligand dependency of the GTPswitch in the DNA frame, we used a cover strand. Such a strategy was recently demonstrated to be successful and improved the specificity of an aptamer to adenosine.16 _{In our case, the} chosen cover strand binds to the kissing loop of the GTPswitch and extends to part of the central loop that is the GTP binding site of the aptamer (Fig. 3a). This cover strand can be displaced by the addition of GTP, which allows the GTPswitch to bind to the Aptakiss in a ligand-dependent manner. The cover strand was hybridized to the GTPswitch by annealing, and the covered GTPswitch strand was then incorporated into the DNA frame together with the strand carrying the Aptakiss. In the absence of GTP, the percentage of X-shaped structure in the AFM images was calculated as 64.4% (Fig. 3b). This value reflected a ∼20% decrease in the percentage of the X-shape

and is much lower than the values mentioned above for KG51 and the GTPswitch. The results indicate that the cover strand reduced the ligand-independent binding between the GTPswitch and the Aptakiss. Next, we examined the eﬀect of introducing a cover strand-bound GTPswitch to the Aptakiss in the presence of GTP (Fig. 3c). Adenosine triphosphate (ATP) was also used to investigate the ligand specificity of the GTPswitch (Fig. 3d). From the AFM images, 82.5% of the cover strand-bound GTPswitch was in the X-shape in the presence of GTP; this value is similar to that for KG51 (84.9%). By contrast, in the presence of ATP, only 66.5% was in the X-shape; this

Fig. 2 Observations of the interactions between the Aptakiss and its counterpart either KG51 or GTPswitch in the DNA frame. (a) AFM images of the DNA frames with the Aptakiss and KG51. (b) AFM images of the DNA frames with the Aptakiss and the GTPswitch. Red and blue arrows indicate the double-loop and X-shape, respectively. Green rectangles represent an unidentiﬁed DNA frame. (c) Formation of the X-shape and double-loop in the DNA frame. Red and blue bars represent the percen-tages of the double-loop and X-shape formation, respectively.

Table 1 Summary of the X-shape formation using Aptakiss and GTPswitch in the absence and presence of ligands

X-shape (%)

Double-loop

shape (%) ±S.D.

Counted numbers KG51 84.9 15.1 3.3 280 GTPswitch 75.1 24.9 4.3 285 The data are represented as the mean ± S.D of triplicate experiments (n= 3).

(5)

value is close to that in the absence of GTP (64.4%). These results indicate that GTP could selectively induce binding between the GTPswitch and the Aptakiss, whereas ATP could not (Fig. 3e and Table 2).

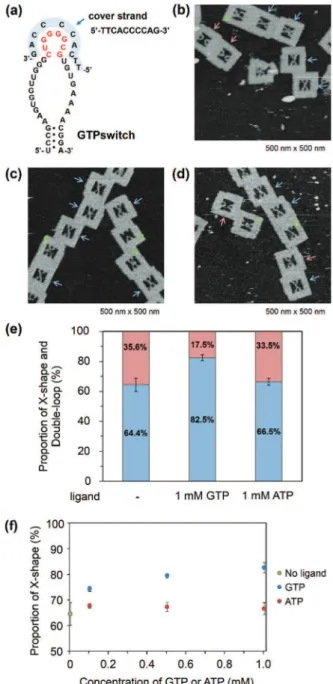

Fig. 3 Observation of the interaction between the Aptakiss and the GTPswitch in the presence of a cover strand. (a) The cover strand for the GTPswitch used to prevent interaction with the counterpart Aptakiss. (b) AFM image of the DNA frames with the Aptakiss and the GTPswitch. Red and blue arrows indicate double-loop and X-shape, respectively. Green rectangles represent unidentiﬁed DNA frames. (c) AFM image of the DNA frames with the Aptakiss and the GTPswitch in the presence of GTP. (d) AFM image of the DNA frames with the Aptakiss and the GTPswitch in the presence of ATP. (e) Formation of the X-shape and double-loop in the DNA frame. Red and blue bars represent the percen-tages of the double-loop and X-shape, respectively. (f ) Proportion of the X-shape formation in the DNA frame at various concentration of GTP and ATP.

Table 2 Summary of the X-shape formation using Aptakiss and GTPswitch with a cover strand in the absence and presence of ligands

GTPswitch/ cover strand

X-shape (%)

Double-loop

shape (%) ±S.D.

Counted numbers No ligand 64.4 35.6 4.4 381 0.1 mM GTP 74.3 25.7 1.0 238 0.5 mM GTP 79.4 20.6 0.8 242 1.0 mM GTP 82.5 17.5 2.1 324 0.1 mM ATP 67.6 32.4 0.9 216 0.5 mM ATP 67.1 32.9 1.7 229 1.0 mM ATP 66.5 33.5 2.3 281 The data are represented as the mean ± S.D of triplicate experiments (n= 3).

Fig. 4 Observation of the interaction between the Aptakiss and the mutant GTPswitch in the DNA frame. (a) One G was deleted from the kissing loop of the GTPswitch to suppress the interaction with the counterpart Aptakiss. (b) AFM image of the DNA frames with the Apta-kiss and the mutant GTPswitch. Red and blue arrows indicate the double-loop and X-shape, respectively. Green rectangles represent uni-dentiﬁed DNA frames. (c) AFM image of the DNA frames with the Apta-kiss and the mutant GTPswitch in the presence of GTP. (d) AFM image of the DNA frames with the Aptakiss and the mutant GTPswitch in the presence of ATP. (e) Formation of the X-shape and double-loop in the DNA frame. Red and blue bars represent the percentages of the double-loop and X-shape formation, respectively.

(6)

Moreover, we observed the binding in the presence of 0.1 and 0.5 mM of GTP and ATP. In the case of ATP, there is no change of the proportion. On the other hand, we found that at 0.1 mM of GTP the proportion of X-shape was decreased by

∼5% from the proportion at 0.5 and 1.0 mM of GTP (Fig. 3f ).

Observation of GTP switching in a mutant GTPswitch

When the Aptakiss and the GTPswitch were placed in the DNA frame, the two RNA hairpins bound easily because of the close packing in the nanospace. We tried to reduce the interaction of RNA hairpins by using a mutant GTPswitch, in which one G was deleted from the kissing loop of the GTPswitch (Fig. 4a). After assembling the Aptakiss and the mutant GTPswitch strands, we used AFM to observe the formation of the X-shape (Fig. 4b–d). In the absence of GTP, the X-shape formation between the Aptakiss and the mutant GTPswitch was 44.0%, which indicated a significant suppression of the interaction compared with the X-shape formed with the usual GTPswitch (75.1%). To examine the switching ability, formation of the X-shape was observed in the presence of GTP. The percentage in the X-shape was observed as 65.2%, which indicated a 21% increase in the binding of the GTPswitch and the Aptakiss when GTP was added. To confirm the ligand selectivity, we added ATP instead of GTP. In the presence of ATP, the percen-tage of the X-shape decreased by 19% to be 46.4% compared with that observed in the presence of GTP (Fig. 4e and Table 3) These results indicate that the mutant GTPswitch preserved the switching ability and ligand selectivity. These findings indicate that adjusting the association and dissociation of the kissing interaction of the RNA hairpins by deleting the nucleo-tide in the kissing domain was successful without losing the switching ability.

Conclusions

We performed single-molecule observations of kissing com-plexes in the nanocavity of the DNA origami frame. Intrigu-ingly, in the closely spaced condition, the GTPswitch could bind to the Aptakiss even in the absence of GTP in contrast to previous work.13,16 _{This GTP-independent binding could be} suppressed by the addition of a cover strand against the kissing loop of the GTPswitch, and the GTP-dependent binding of the GTPswitch and Aptakiss was observed. The

mutant GTPswitch also worked to control the kissing inter-action and exhibited preserved switching ability and ligand selectivity. Although further optimization in the switching response is required, these findings support the potential applications of ligand-responsive kissing aptamers for dynamic systems that can be organized on DNA origami nano-structures. We believe that ligand-responsive kissing aptamers will enable us to regulate more global changes in nucleic acid nanostructures, such as programmed oligomerization into pre-scribed patterns.

Acknowledgements

This work was supported by JSPS KAKENHI (grant numbers 15H03837, 24104002, 24225005, 26620133) to ME and HS. Financial supports from the Sekisui Chemical Research Grant and the Kurata Memorial Hitachi Science and Technology Foundation to ME are also acknowledged. We acknowledge the financial support of the Aquitaine Regional Government and ANR program VIBBnano (ANR-10-NANO-04) to JJT (Bordeaux).

Notes and references

1 F. Beaurain, C. Di Primo, J. J. Toulmé and M. Laguerre, Nucleic Acids Res., 2003,31, 4275–4284.

2 I. Lebars, P. Legrand, A. Aime, N. Pinaud, S. Fribourg and C. Di Primo,Nucleic Acids Res., 2008,36, 7146–7156. 3 J. C. Paillart, E. Skripkin, B. Ehresmann, C. Ehresmann

and R. Marquet, Proc. Natl. Acad. Sci. U. S. A., 1996, 93, 5572–5577.

4 J. I. Tomizawa,Cell, 1986,47, 89–97.

5 C. Persson, E. G. H. Wagner and K. Nordström,EMBO J., 1990,9, 3761–3775.

6 L. Argaman and S. Altuvia, J. Mol. Biol., 2000,300, 1101–

1112.

7 C. Brunel, R. Marquet, P. Romby and C. Ehresmann, Biochi-mie, 2002,84, 925–944.

8 E. Goux, S. Lisi, C. Ravelet, G. Durand, E. Fiore, E. Dausse, J. J. Toulmé and E. Peyrin,Anal. Bioanal. Chem., 2015,407, 6515–6524.

9 H. Van Melckebeke, M. Devany, C. Di Primo, F. Beaurain, J. J. Toulmé, D. L. Bryce and J. Boisbouvier, Proc. Natl. Acad. Sci. U. S. A., 2008,105, 9210–9215.

10 W. W. Grabow and L. Jaeger, Acc. Chem. Res., 2014, 47, 1871–1880.

11 A. Chworos, I. Severcan, A. Y. Koyfman, P. Weinkam, E. Oroudjev, H. G. Hansma and L. Jaeger, Science, 2004,

306, 2068–2072.

12 P. Guo,Nat. Nanotechnol., 2010,5, 833–842.

13 F. Ducongé and J. J. Toulmé,RNA, 1999,5, 1605–1614. 14 K. Kikuchi, T. Umehara, K. Fukuda, J. Hwang, A. Kuno,

T. Hasegawa and S. Nishikawa,J. Biochem., 2003,133, 263–

270.

Table 3 Summary of the X-shape formation using Aptakiss and GTPswitch mutant in the absence and presence of ligands

GTPswitch mutant

X-shape (%)

Double-loop

shape (%) ±S.D.

Counted numbers No ligand 44.0 56.0 2.0 202 1.0 mM GTP 65.2 34.8 0.5 230 1.0 mM ATP 46.4 53.6 2.5 214 The data are represented as the mean ± S.D of triplicate experiments (n= 3).

(7)

15 S. Da Rocha Gomes, E. Dausse and J. J. Toulmé,Biochem. Biophys. Res. Commun., 2004,322, 820–826.

16 G. Durand, S. Lisi, C. Ravelet, E. Dausse, E. Peyrin and J. J. Toulmé,Angew. Chem., Int. Ed., 2014,53, 6942–6945. 17 M. Endo and H. Sugiyama,Acc. Chem. Res., 2014,47, 1645–

1653.

18 A. Rajendran, M. Endo and H. Sugiyama,Chem. Rev., 2014,

114, 1493–1520.

19 (a) Y. Sannohe, M. Endo, Y. Katsuda, K. Hidaka and H. Sugiyama, J. Am. Chem. Soc., 2010, 132, 16311–16313; (b) A. Rajendran, M. Endo, K. Hidaka and H. Sugiyama, Angew. Chem., Int. Ed., 2014,53, 4107–4112.

20 (a) A. Rajendran, M. Endo, K. Hidaka and H. Sugiyama, J. Am. Chem. Soc., 2013, 135, 1117–1123; (b) M. Endo,

M. Inoue, Y. Suzuki, C. Masui, H. Morinaga, K. Hidaka and H. Sugiyama,Chem.–Eur. J., 2013,19, 16887–16890.

21 (a) M. Endo, Y. Yang, Y. Suzuki, K. Hidaka and H. Sugiyama, Angew. Chem., Int. Ed., 2012, 51, 10518–

10522; (b) Y. Yang, M. Endo, Y. Suzuki, K. Hidaka and H. Sugiyama,Chem. Commun., 2014,50, 4211–4213. 22 (a) M. Endo, Y. Katsuda, K. Hidaka and H. Sugiyama,J. Am.

Chem. Soc., 2010,132, 1592–1597; (b) M. Endo, Y. Katsuda, K. Hidaka and H. Sugiyama,Angew. Chem., Int. Ed., 2010,

49, 9412–9416; (c) Y. Suzuki, M. Endo, Y. Katsuda, K. Ou, K. Hidaka and H. Sugiyama,J. Am. Chem. Soc., 2014,136, 211–218; (d) Y. Suzuki, M. Endo, C. Cañas, S. Ayora, J. C. Alonso, H. Sugiyama and K. Takeyasu,Nucleic Acids Res., 2014,42, 7421–7428.
