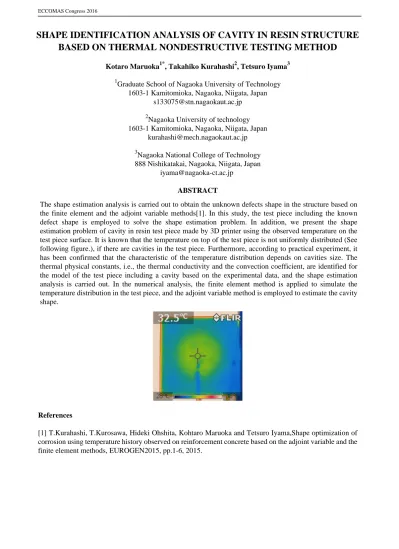

ECCOMAS Congress 2016
SHAPE IDENTIFICATION ANALYSIS OF CAVITY IN RESIN STRUCTURE BASED ON THERMAL NONDESTRUCTIVE TESTING METHOD
Kotaro Maruoka
1*, Takahiko Kurahashi
2, Tetsuro Iyama
31
Graduate School of Nagaoka University of Technology 1603-1 Kamitomioka, Nagaoka, Niigata, Japan
[email protected]
2
Nagaoka University of technology 1603-1 Kamitomioka, Nagaoka, Niigata, Japan
[email protected]
3
Nagaoka National College of Technology 888 Nishikatakai, Nagaoka, Niigata, Japan
[email protected]
ABSTRACT
The shape estimation analysis is carried out to obtain the unknown defects shape in the structure based on the finite element and the adjoint variable methods[1]. In this study, the test piece including the known defect shape is employed to solve the shape estimation problem. In addition, we present the shape estimation problem of cavity in resin test piece made by 3D printer using the observed temperature on the test piece surface. It is known that the temperature on top of the test piece is not uniformly distributed (See following figure.), if there are cavities in the test piece. Furthermore, according to practical experiment, it has been confirmed that the characteristic of the temperature distribution depends on cavities size. The thermal physical constants, i.e., the thermal conductivity and the convection coefficient, are identified for the model of the test piece including a cavity based on the experimental data, and the shape estimation analysis is carried out. In the numerical analysis, the finite element method is applied to simulate the temperature distribution in the test piece, and the adjoint variable method is employed to estimate the cavity shape.
References
[1] T.Kurahashi, T.Kurosawa, Hideki Ohshita, Kohtaro Maruoka and Tetsuro Iyama,Shape optimization of corrosion using temperature history observed on reinforcement concrete based on the adjoint variable and the finite element methods, EUROGEN2015, pp.1-6, 2015.
