［例］ 表示言語を英語にする
メニュー画面から「本体設定」ー
「 Language（言語設定）」を選び、
を押す
で「English」を選び、
を
押す
• 画面表示が英語になります。
本体設定 … Language（言語設定）］ 音声調整 省エネ設定 本体設定 機能切換 地域設定 チャンネル設定 アンテナ設定 スピーカー設定 入力スキップ設定 位置調整 オートワイド 映像反転 ［しない］ クイック起動設定 ［しない］ Language（言語設定）［日本語］ 個人情報初期化 リモコンのボタン 日本語 EnglishDisplay language setting
■ メニューなどの画面表示を日本語にするか英
語にするか選ぶことができます。
① Press
(menu) to
display the menu screen.
② Press
to select
“本体設
定”(Setup).
Press
to select
“Language
（言語設定）”, then press
(enter).
Press
to select
“English”,
then press
(enter).
• The menu screen is now displayed in
English.
映像調整 デジタル ■メニュー ［本体設定］ 音声調整 省エネ設定 本体設定 機能切換 地域設定 チャンネル設定 アンテナ設定 ピ 定 日本語 EnglishDisplay language setting
■ Using the menu screen, you can switch the
on-screen display language to English.
本体設定 … Language（言語設定）］ 音声調整 省エネ設定 本体設定 機能切換 地域設定 チャンネル設定 アンテナ設定 スピーカー設定 入力スキップ設定 位置調整 オートワイド 映像反転 ［しない］ クイック起動設定 ［しない］ Language（言語設定）［日本語］ 個人情報初期化 RC Buttons

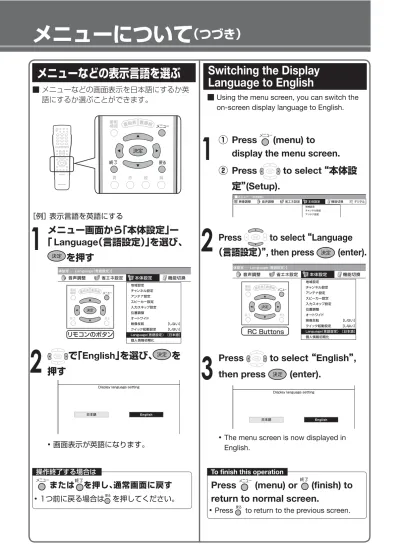

メニューなどの表示言語を選ぶ
Switching the Display
Language to English
操作終了する場合は
または
を押し、通常画面に戻す
• 1つ前に戻る場合は
を押してください。
1
1
2
3
2
To finish this operation
Press
(menu) or
(finish) to
return to normal screen.
English Guide
Part Names - Main Unit
IC chip B-CAS Card
Speaker section
Power indicator……… Remote sensor window………
• When using the remote control, point its head toward this window.
Ambient illumination
sensor window………
Headphones jack………
Timer program indicator… Ambient illumination sensor indicator…………152 23 36 102 152
Volume down (–) /up (+) buttons Channel down (∨) /up (∧) buttons
Main power switch………… Input select button………
36
■ The number shown in each is the page number where the part’s function and/or use are explained either
in English or Japanese.
Front view
Top view
Stand……… Stand………… Speaker sectionLC-52GX1W
LC-52GX2W
LC-52GX1W
LC-52GX2W
28 28 20 90 57B-CAS card slot……
•Open the cover and insert the B-CAS card in the direction shown below.
Part Names - Main Unit English Guide 207 135 142 112 132 108・136 110・116 104 66 34 33 35 33 33 104 106・166 120 174 Terminal cover for Factory Adjustment
Digital audio output jack (optical)……… Digital module reset button……… Center speaker jack………
AV in 1
.
2………… Monitor out / AV in 4 / (Digital out)…AV in 7 (DVI-I)……… VCR controller connector………
BS/CS 110 antenna input terminal……… LAN jack…………
i.LINK (TS) jacks…
Terrestrial digital antenna input terminal… Telephone line jack…
▼Inside the terminal covers
Opening the terminal covers
AV in 3…Power cable connector (AC 100V)………
Holding the lock at the top of the cover downward, pull the cover off the back of the main unit. AV in 5 and 6 （HDMI）………… RS-232C terminal……… VHF/UHF antenna input terminal…… VHF/UHF antenna output terminal……
English Guide
Part Names - Remote Control Unit
CATV………
Cover closed
Display………Press to display or turn off the channel call, etc.
Active/Standby………
Press to engage the TV set in the active or standby mode.
When selecting a CATV channel by entering the channel number, press this button first, then enter the 2-digit number with the TV channel select buttons (1-10/0).
Terrestrial analog select……
Press to select the terrestrial analog network.
Terrestrial digital select……
Press to select the terrestrial digital network.
* Use this button after the TV set is tuned to receive terrestrial digital broadcasts.
Volume up (
+
)/down (-
)Press to adjust the volume.
Mute
Press to temporarily turn off the sound. Press again to return the sound volume to the previous level.
EPG………
Press to display or turn off the Electronic Program Guide (EPG: 番組表) when receiving a digital broadcast.
Program info………
Press to display detailed information (e.g. title, genre, on-air time, cast, writer, etc.) on the current digital program.
Enter/Confirm………
Press to confirm a selected setting or menu item.
Cursor
(up, down, left, right)………
Use to select a menu item, column, etc.
Press to end the picture freeze mode, turn off the EPG display, or finish menu operation, etc.
Finish………
This button can be conveniently used when you are at a loss during menu or EPG operation, etc.
Color (blue, red, green, yellow)
Use to operate EPGs and data program screens.
Favorite channel select/register……
Press to select a user-registered channel and to turn on/off the favorite channel register/registered channel table screen.
Digital channel number input
When selecting a digital channel by entering the 3-digit channel number, press this button first, then enter the channel number with the channel select buttons (1-10/0).
Channel select………
• Press to select a channel after selecting the desired network (terrestrial analog [地上A], terrestrial digital [地上D], BS, CS) and media (TV, radio, or data). • Use to input a number for various
settings.
CS select………
Press to select the CS digital networks.
BS select………
Press to select the BS digital network.
Press to select channels in the current network, media and CATV channels in the ascending or descending order. * CATV channels are factory set to be
skipped.
Channel up (∧)/down (∨)……
Input select………
Press to select the desired input.
Other on-air programs…………
Press to display the EPG for currently on-air programs only (裏番組).
Return………
Press to go back to the previous screen. Press this button instead of the Enter/Confirm (決定) button when you have selected the wrong item or input the wrong number, etc.
Menu………
Press to display or turn off the menu screen.
The menus can be displayed in English. See page 44 for instructions on how to switch the display language.
82 36 75 61・74 47・74 74・82 Note 42 42 80 42 80・82 75・162 75 74 74 74 74 74 105・118 120・121 44・48 42 42 86 Media select………
Press to select the desired media (TV, radio, or data).
(linked data broadcast)……
Press to call the data broadcast linked with the current digital TV program.
80
AQUOS.jp………
Press to connect to the internet.
178
i.LINK………
Press to select the i.LINK mode. Press to display or turn off the D-VHS VCR, AV-HDD recorder, Blu-ray Disc recorder or Hi-Vision Video camera control panel.
Part Names - Remote Control Unit
English Guide
HDMI CONTROL………
Press to select the desired picture when watching a digital multi-picture program.
Press to operate HDMI CONTROL Recorders and AQUOS Surround connected via HDMI cables.
165
Freeze………
Press to freeze the picture.
161 79
Picture select………
AV mode select………
Press to select the picture/sound setting (dynamic [locked], dynamic, standard, cinema, game, or AV memory) that best matches the current program.
151
………
Press to display, select, or turn off captions when watching a digital program with captions.
Operable screen………
Press to switch the operable screen (screen with the mark) when the TV set is in the split screen mode.
160 195
Audio select………
Press to select the desired audio (e.g. Japanese or English in bilingual broadcast, the main sound or a sub sound in digital multi-sound broadcast, etc.).
79・156
To open the cover
Hold the cover by the projections on both sides and lift upwards.
Screen mode………
Press to select the desired screen mode.
138・147
Split screen………
Press to switch between the split screen mode and the normal screen mode.
160
① Press
to select terrestrial analog broadcast.
② Press
-
to select the desired channel.
① Press
,
or
to select the desired
digital broadcast network.
② Press
-
to select the desired channel.
Types of broadcast
• Terrestrial analog: Conventional VHF/UHF broadcast • Terrestrial digital: Terrestrial digital broadcast • BS: BS digital broadcast
• CS: CS 110 digital broadcast
