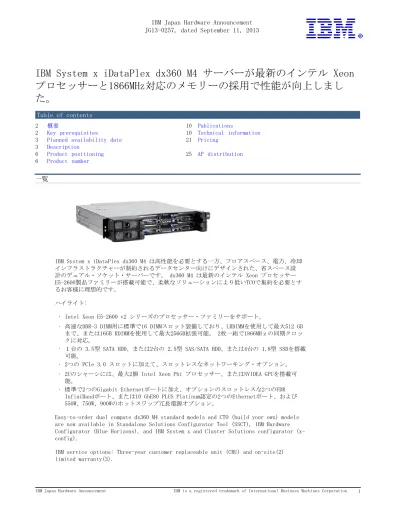

IBM�Japan�Hardware�Announcement

JG13-0257,�dated�September�11,�2013

IBM�System�x�iDataPlex�dx360�M4�サーバーが最新のインテル�Xeon

プロセッサーと1866MHz対応のメモリーの採用で性能が向上しまし

た。

Table�of�contents

2 概要� 10 Publications�

2 Key� prerequisites� 10 Technical� information�

3 Planned� availability� date� 21 Pricing�

3 Description�

6 Product� positioning� 25 AP� distribution�

6 Product� number�

一覧

IBM�System�x�iDataPlex�dx360�M4�は高性能を必要とする一方、フロアスペース、電力、冷却 インフラストラクチャーが制約されるデータセンター向けにデザインされた、省スペース設 計のデュアル・ソケット・サーバーです。�dx360�M4�は最新のインテル�Xeon�プロセッサー E5-2600製品ファミリーが搭載可能で、柔軟なソリューションにより低いTCOで集約を必要とす るお客様に理想的です。 ハイライト: • Intel�Xeon�E5-2600�v2�シリーズのプロセッサー・ファミリーをサポート。 • 高速なDDR-3�DIMM用に標準で16�DIMMスロット装備しており、LRDIMMを使用して最大512�GB まで、または16GB�RDIMMを使用して最大256GB拡張可能。�2枚一組で1866MHzの同期クロッ クに対応。 • 1台の�3.5型�SATA�HDD、または2台の�2.5型�SAS/SATA�HDD、または4台の�1.8型�SSDを搭載 可能。 • 2つの�PCIe�3.0�スロットに加えて、スロットレスなネットワーキング・オプション。 • 2Uのシャーシには、最大2個�Intel�Xeon�Phi�プロセッサー、またはNVIDEA�GPUを搭載可 能。 • 標準で2つのGigabit�Ethernetポートに加え、オプションのスロットレスな2つのFDR InfiniBandポート、または10�GbE80�PLUS�Platinum認定の2つのEthernetポート、および 550W、750W、900Wのホットスワップ冗長電源オプション。 Easy-to-order�dual�compute�dx360�M4�standard�models�and�CTO�(build�your�own)�models are�now�available�in�Standalone�Solutions�Configurator�Tool�(SSCT),�IBM�Hardware Configurator�(Blue�Horizons),�and�IBM�System�x�and�Cluster�Solutions�configurator�(x-config). IBM�service�options:�Three-year�customer�replaceable�unit�(CRU)�and�on-site(2) limited�warranty(3).

(2)

概要

IBM�System�x�iDataPlex�はハイパフォーマンス・コンピューティング(HPC)クラスター、グ リッド・デプロイメント、大規模なクラウドと仮想化インフラストラクチャーにおいて省電 力、冷却性能、また省スペースを期待するユーザーのために革新的なデータセンターソリュー ションです。�サーバーレベルやラックレベル、そしてデータセンターレベルのイノベーション を通して、データセンターで最も有用な設置密度に対する新しいアプローチを示します。 iDataPlex�ソリューションがサーバー、シャーシ、ネットワーキング・スイッチを容易に統合 し、柔軟な機器構成を作成するために業界標準のコンポーネントで構築されます。アプリケー ションのためにカスタマイズされたソリューションが最大の計算性能、GPU�アクセラレーショ ン、適切な�I/O�とネットワーキングを必要とする特定のビジネスにおいて適切に構成すること ができます。 サーバーレベルの柔軟性に加えて、�iDataPlex�はラックレベルでも柔軟性を提供しま す。iDataPlex�は底部(レイズドフロア上に置かれる場合)を通して、または天井からケーブ ル接続することができます。フロントアクセスによるケーブル接続とダイレクト・ドック・パ ワーにより速く、容易にネットワーキング、パワーコネクション、ストレージの変更をするこ とが可能です。ラックはイーサネット、InfiniBand、ファイバーチャネルの多重のネットワー キング・トポロジーをサポートします。 iDataPlex�Integrated�Solution�は、IBM�製造工場において全てのコンポーネントを組み込ん だ上で、完全なソリューションとしてテストをした上でお客様に出荷します。お客様はラック が納入される時に、適切な場所に設置してネットワークに接続し電源を入れるだけです。 オプションのBroadcom�NetXtreme�IIデュアルポート10GbaseT�PCIeアダプターは、アナリ ティックス、パブリックおよびプライベートクラウド、仮想化などのアプリケーションに必要 な10Gbイーサネットに低コストでの移行が可能になります。 オプションの�IBM�リアドア・ヒート・エクスチェンジャーを�iDataPlex�ソリューションの一 部として採用することで、冷却課題を軽減することができる高密度データセンター環境を構築 できます。さらなる調整でリアドア・ヒート・エクスチェンジャー�はラック内の機器からの発 熱分以上にサーバールーム全体を冷やすことが可能です。データセンターで必要な空調による 温度調節を軽減することにつながります。 �Trademarks: � For�a�list�of�additional�trademarks,�visit Required�Cleanup�-->

��

www.ibm.com/legal/copytrade.shtml <--�Required�Cleanup � �(1)��The�Intel�QuickPath�Interconnect�(QPI)�is�a�point-to-point ������processor�interconnect�developed�by�Intel.��Performance�numbers ������for�QuickPath�are�reported�as�Gigatransfers�per�second�(GT/s) ������per�direction. �(2)��You�may�be�asked�certain�diagnostic�questions�before�a ������technician�is�sent. �(3)��For�information�on�IBM's�Statement�of�Limited�Warranty, ������contact�your�IBM�representative.��Copies�are�available ������upon�request. Note: The�information�in�IBM�announcement�letters�is�subject�to change�without�notice,�consult�the�IBM�Sales�Manual,�or�your IBM�marketing�representative.��Copies�are�available upon�request. � �(c)�Copyright�International�Business�Machines�Corporation,�2004. �����All�rights�reserved.

Key�prerequisites

(3)

• Supported�operating�system • USB�CD-RW/DVD�drive • Device�drivers,�as�required

Planned�availability�date

October�11,�2013

Description

The�iDataPlex�dx360�M4�system-board�tray�uses�the�following�features�and technologies: • Two�PCI�Express�x16�adapter�capabilities The�system-board�tray�has�two�connectors�for�PCI�Express�adapters.�These connectors�accept�standard�x16�or�x8�adapters. • Dynamic�System�Analysis�(DSA)�programs The�DSA�programs�collect�and�analyze�system�information�to�aid�in�diagnosing problems.�The�diagnostic�programs�collect�a�large�amount�of�information,�some�of which�is�listed�below: – System�configuration – Network�interfaces�and�settings – Installed�hardware – Service�processor�status�and�configuration – Vital�product�data,�firmware,�and�uEFI�configuration – RAID�controller�configuration�and�status – Event�logs�for�ServeRAID�controllers�and�service�processors – Operating�system�configuration* – Installed�device�drivers* – System�services* *Online�DSA�only DSA�comes�in�both�online�(runs�under�the�operating�system)�and�preboot�(runs�its own�media)�versions.�Online�DSA,�which�is�a�web�download,�collects�additional software�information�and�operating�system�vital�product�data.�DSA�Preboot�runs additional�diagnostics,�such�as�the�memory�test�which�can�help�to�detect�faulty hardware.�Both�versions�can�transmit�data�back�to�IBM�for�analysis�by�service�and support�or�can�have�the�results�analyzed�locally. • Integrated�Management�Module The�Integrated�Management�Module�(IMM)�combines�the�baseboard�management controller�(BMC)�and�video�controller�functions�in�a�single�chip�that�provides basic�service-processor�environmental�monitoring�functions.�If�an�environmental condition�exceeds�a�threshold�or�if�a�system�component�fails,�LEDs�are�illuminated on�the�BMC�to�help�you�diagnose�the�problem�and�the�error�is�recorded�in�the error�log.�The�BMC�also�provides�remote�server�management�capabilities,�using�the Intelligent�Platform�Management�Interface�(IPMI)�version�2.0�protocol. Note:In�messages�and�documentation,�the�term�"service�processor"�refers�to�the baseboard�management�controller. • Integrated�network�support

(4)

The�system-board�tray�comes�with�an�integrated�Intel�dual-port�Gigabit�Ethernet controller,�which�supports�connection�to�a�10�Mbps,�100�Mbps,�or�1000�Mbps network. • Storage�capacity The�system-board�tray�supports�one�3.5-inch�simple-swap�SATA,�or�two�2.5-inch simple-swap�SATA/SAS/SSDs,�or�four�1.8-inch�simple-swap�solid-state�HDDs.�An optional�SAS�controller�must�be�installed�for�specific�configurations. • Supported�memory�options The�dx360�M4�server�system-board�tray�can�address�up�to�512�GB�of�system�memory. The�memory�controller�supports�up�to�16�industry-standard,�registered�ECC�double-data-rate�3�(DDR3)�-1066�DIMMs,�-1333�DIMMs,�-1600�DIMMs,�and�-1866�DIMMs�or unbuffered�ECC�double-data-rate�3�(DDR3)�-1066�DIMMs,�-1333�DIMMs,�-1600�DIMMs, and�-1866�DIMMs. • Memory�mirroring Memory�mirroring�stores�data�in�two�pairs�of�DIMMs�simultaneously. • Redundant�connection The�addition�of�an�optional�network�interface�card�(NIC)�provides�a�failover capability�to�a�redundant�Ethernet�connection.�If�a�problem�occurs�with�the primary�Ethernet�connection,�all�Ethernet�traffic�that�is�associated�with the�primary�connection�is�automatically�switched�to�the�redundant�NIC.�If�the applicable�device�drivers�are�installed,�this�switching�can�occur�without�data loss�and�without�user�intervention. • ServeRAID�support The�dx360�M4�server�system-board�tray�supports�ServeRAID�adapters�to�create redundant�array�of�independent�disks�(RAID)�configurations. IBM�System�x�iDataPlex�dx360�M4�Server�Rack�(7825) This�specially�designed�rack�is�used�in�iDataPlex�dx360�M4�server�configurations. The�iDataPlex�dx360�M4�Server�Rack�is�designated�as�IBM-installed�for�easy�on-site installation.�This�designation,�coupled�with�the�factory�integration�services�and optional�on-site�installation�and�verification�of�software,�results�in�a�ready-to-run cluster�system. The�iDataPlex�solution�offers�increased�density�in�a�holistic�rack�design�for�up to�100U:�84U�of�compute�and�16U�for�network�and�PDU�infrastructure.�The�mechanical design�is�optimized�for�cooling�efficiency�with�half�the�airflow�distance�to�reduce the�amount�of�heat�produced�and�cooling�required. For�ease�of�serviceability,�all�hard�drive,�planar,�and�I/O�access�is�from�the�front of�the�rack. IBM�System�x�iDataPlex�2U�chassis�(7913) • SAS,�SATA,�and�SSD�hard�drive�support • Shared�high-efficiency�power�supply�(optional�redundant�supply) • Shared�low-power�consuming�fans • Choice�of�SAS,�Ethernet,�or�iSCSI�host�interface Power�and�cooling�advantages The�iDataPlex�dx360�M4�server�helps�pack�more�processors�into�the�same�power�and cooling�envelope,�better�utilizing�floor�space,�and�"right�size"�data�center�design. With�the�iDataPlex�dx360�M4�server�solution,�less�power�per�processor�means�more processing�capacity�per�kilowatt.�The�iDataPlex�dx360�M4�server�can�run�cooler�to deliver�greater�reliability.

(5)

IBM�System�x�iDataPlex�dx360�M4�server�Rear�Door�Heat�eXchanger�(43V6048) For�dense�data�center�environments,�IBM�offers�smart�rack-level�heat�management solutions�such�as�the�super-efficient�IBM�Rear�Door�Heat�eXchanger.�The�water-cooled door�is�designed�to�dissipate�heat�generated�from�the�back�of�the�rack�to�reduce�the overall�room�temperature.�With�this�combination�of�benefits�at�the�server�and�data center�level,�IBM�systems�deliver�strong�power�and�cooling�benefits�to�iDataPlex dx360�M4�server�clients. The�iDataPlex�dx360�M4�server�Rear�Door�Heat�eXchanger�for�iDataPlex�dx360�M4�server racks�helps�reduce�the�air�temperature�in�your�growing�data�center�to�approximately the�same�air�temperature�as�that�entering�the�rack,�alleviating�the�need�to�add�air conditioning�units.�This�unobtrusive�solution�brings�more�cooling�capacity�to�areas where�the�heat�is�greatest,�around�racks�of�servers�with�multiple,�more�powerful processors. This�cooling�efficiency�can�help�alleviate�or�possibly�eliminate�the�need�for additional�air�conditioning�power�and�the�associated�construction�cost. Lab�services iDataPlex�dx360�M4�server�installation�planning Features: • Assess�the�client's�air�conditioning�and�air�distribution�in�support�of�iDataPlex systems • Evaluate�the�need�for�any�Rear�Door�Heat�eXchanger�installations�and�offer necessary�guidance • Review�the�iDataPlex�power�specifications�based�on�the�client's�hardware configurations�and�offer�necessary�guidance Typical�benefits: • Offers�accurate�environmental�information�as�required�for�supporting�iDataPlex systems�most�reliably • Identifies�the�most�efficient�approach�to�the�iDataPlex�system�cooling�and ventilation�needs • Reduces�potential�installation�shortfalls�with�open�and�ongoing�communication�with the�client�surrounding�their�specific�iDataPlex�system�requirements iDataPlex�Systems�Management The�System�x�iDataPlex�product�family�offers�systems�management�support�through standards-based,�scriptable�interfaces.�This�support�starts�with�the�embedded Intelligent�Platform�Management�Interface�(IPMI)�baseboard�management�controller (BMC). For�rapid�diagnosis�of�problems,�iDataPlex�supports�IBM�Dynamic�System�Analysis (DSA)�preboot�diagnostics�and�online�data�collection�for�problem�determination�in supported�Microsoft�Windows�and�Linux�environments.�Refer�to�the�Dynamic�System Analysis�product�documentation�for�additional�detail�on�DSA�features. iDataPlex�compute�nodes�support�IBM�Systems�Director�with�limited�function.�Refer to�IBM�Systems�Director�product�documentation�for�specific�details�on�supported functions�on�iDataPlex�hardware. The�compute�nodes�have�been�tested�with�the�Extreme�Cluster�Administration�Toolkit (xCAT),�an�open�source�community-based�cluster�administration�tool�set�tailored�to scale-out�compute�environments.�You�can�download�xCAT�from�SourceForge�at http://sourceforge.net/projects/xcat/ For�additional�information�on�xCAT,�contact�your�IBM�Sales�and�Support�Team,�or�visit

(6)

http://www.xcat.org/ Accessibility�by�people�with�disabilities A�US�Section�508�Voluntary�Product�Accessibility�Template�(VPAT)�containing�details on�accessibility�compliance�can�be�requested�at http://www.ibm.com/able/product_accessibility/index.html

Product�positioning

IBM�delivers�innovations�that�meet�your�specific�needs.�The�right�choice�depends�on your�business�requirements,�target�applications,�and�operating�environment.�iDataPlex focuses�on: • Compute�performance�in�gigaflops�per�dollar�and�performance�per�watt • Rapid�scaling�and�large�scale-out�deployments • Maximum�useable�compute�density�in�the�data�center • Software-resilient�workloads�such�as�HPC,�grid,�and�cloud�computing • Optional�redundant�power�supply�for�nongrid�workloads The�iDataPlex�hardware�platform�is�positioned�for�large-scale�enterprise�deployments that�rely�on�recovery-oriented�architecture�that�primarily�enables�redundancy�through the�software�layer�instead�of�redundant�hardware.

Product�number

To�order�please�specify: Fulfillment�Organization: The�product�structures�in�the�section�below�are�to�be�enabled�in�the following�manner: -�US�/�CA�and�LA�will�continue�to�be�enabled�via�ePIMS�/�SAP�CBS�for�XCC; -�All�countries�will�be�enabled�via�EACM�as�part�of�the�country�by country�deployment�of�Blue�Harmony�R1.0. RFA�Editor: Remove�this�notes�section�prior�to�publishing�the�announcement. The�following�are�features�already�announced�for�the�3331,�7912�machine�type: Description�����������������������������������������MT��Model�Feature ---�----�---�---Broadcom�NetXtreme�II�Dual�Port�10GBaseT�Adapter for�IBM�System�x�����������������������������������7912��AC1�����A18Y ���������������������������������������������������������MC1 Intel�Xeon�Phi�7120P�������������������������������3331��HC1�����A3GP Intel�Xeon�Phi�7120P�������������������������������7912��AC1 ���������������������������������������������������������MC1 4GB�(1x4GB,�2Rx8,�1.35V)�PC3L-12800�CL11�ECC�DDR3 1600MHz�LP�UDIMM�����������������������������������7912��AC1�����A3QB ���������������������������������������������������������MC1 4GB�(1x4GB,�1Rx4,�1.5V)�PC3-14900�CL13�ECC�DDR3 1866MHz�LP�RDIMM�����������������������������������7912��AC1�����A3QD ���������������������������������������������������������MC1 4GB�(1x4GB,�1Rx4,�1.35V)�PC3L-12800�CL11�ECC�DDR3 1600MHz�LP�RDIMM�����������������������������������7912��AC1�����A3QE ���������������������������������������������������������MC1 4GB�(1x4GB,�2Rx8,�1.5V)�PC3-14900�CL13�ECC�DDR3 1866MHz�LP�RDIMM�����������������������������������7912��AC1�����A3QF ���������������������������������������������������������MC1 8GB�(1x8GB,�1Rx4,�1.5V)�PC3-14900�CL13�ECC�DDR3 1866MHz�LP�RDIMM�����������������������������������7912��AC1�����A3QG ���������������������������������������������������������MC1 8GB�(1x8GB,�1Rx4,�1.35V)�PC3L-12800�CL11�ECC�DDR3

(7)

1600MHz�LP�RDIMM�����������������������������������7912��AC1�����A3QH ���������������������������������������������������������MC1 8GB�(1x8GB,�2Rx8,�1.5V)�PC3-14900�CL13�ECC�DDR3 1866MHz�LP�RDIMM�����������������������������������7912��AC1�����A3QJ ���������������������������������������������������������MC1 8GB�(1x8GB,�2Rx8,�1.35V)�PC3L-12800�CL11�ECC�DDR3 1600MHz�LP�RDIMM�����������������������������������7912��AC1�����A3QK ���������������������������������������������������������MC1 16GB�(1x16GB,�2Rx4,�1.5V)�PC3-14900�CL13�ECC�DDR3 1866MHz�LP�RDIMM�����������������������������������7912��AC1�����A3QL ���������������������������������������������������������MC1 16GB�(1x16GB,�2Rx4,�1.35V)�PC3L-12800�CL11�ECC DDR3�1600MHz�LP�RDIMM������������������������������7912��AC1�����A3QM ���������������������������������������������������������MC1 Intel�Xeon�Processor�E5-2697�v2�12C�2.7GHz�30MB Cache�1866MHz�130W���������������������������������7912��AC1�����A3TY ���������������������������������������������������������MC1 Intel�Xeon�Processor�E5-2695�v2�12C�2.4GHz�30MB Cache�1866MHz�115W���������������������������������7912��AC1�����A3TZ ���������������������������������������������������������MC1 Intel�Xeon�Processor�E5-2620�v2�6C�2.1GHz�15MB Cache�1600MHz�80W����������������������������������7912��AC1�����A3ZA ���������������������������������������������������������MC1 Intel�Xeon�Processor�E5-2660�v2�10C�2.2GHz�25MB Cache�1866MHz�95W����������������������������������7912��AC1�����A3ZB ���������������������������������������������������������MC1 Intel�Xeon�Processor�E5-2680�v2�10C�2.8GHz�25MB Cache�1866MHz�115W���������������������������������7912��AC1�����A3ZC ���������������������������������������������������������MC1 4GB�(1x4GB,�2Rx8,�1.35V)�PC3L-12800�CL11�ECC�DDR3 1600MHz�LP�RDIMM�����������������������������������7912��AC1�����A3ZD ���������������������������������������������������������MC1 ���������������������������������������������������3331��HC1 � Intel�Xeon�Processor�E5-2650�v2�8C�2.6GHz�20MB Cache�1866MHz�95W����������������������������������7912��AC1�����A40M ���������������������������������������������������������MC1 Intel�Xeon�Processor�E5-2670�v2�10C�2.5GHz�25MB Cache�1866MHz�115W���������������������������������7912��AC1�����A40N ���������������������������������������������������������MC1 Intel�Xeon�Processor�E5-2603�v2�4C�1.8GHz�10MB Cache�1333MHz�80W����������������������������������7912��AC1�����A455 ���������������������������������������������������������MC1 Intel�Xeon�Processor�E5-2609�v2�4C�2.5GHz�10MB Cache�1333MHz�80W����������������������������������7912��AC1�����A456 ���������������������������������������������������������MC1 Intel�Xeon�Processor�E5-2630�v2�6C�2.6GHz�15MB Cache�1600MHz�80W����������������������������������7912��AC1�����A457 ���������������������������������������������������������MC1 Intel�Xeon�Processor�E5-2640�v2�8C�2.0GHz�20MB Cache�1600MHz�95W����������������������������������7912��AC1�����A458 ���������������������������������������������������������MC1 Intel�Xeon�Processor�E5-2690�v2�10C�3.0GHz�25MB Cache�1866MHz�130W���������������������������������7912��AC1�����A459 ���������������������������������������������������������MC1 Intel�Xeon�Processor�E5-2637�v2�4C�3.5GHz�15MB Cache�1866MHz�130W���������������������������������7912��AC1�����A45A ���������������������������������������������������������MC1 Intel�Xeon�Processor�E5-2643�v2�6C�3.5GHz�25MB Cache�1866MHz�130W���������������������������������7912��AC1�����A45B ���������������������������������������������������������MC1 Intel�Xeon�Processor�E5-2667�v2�8C�3.3GHz�25MB Cache�1866MHz�130W���������������������������������7912��AC1�����A45C ���������������������������������������������������������MC1 Intel�Xeon�Processor�E5-2630L�v2�6C�2.4GHz�15MB Cache�1600MHz�60W����������������������������������7912��AC1�����A45D ���������������������������������������������������������MC1 Intel�Xeon�Processor�E5-2650L�v2�10C�1.7GHz�25MB Cache�1600MHz�70W����������������������������������7912��AC1�����A45E ���������������������������������������������������������MC1 Intel�Xeon�Processor�E5-2618L�v2�6C�2.0GHz�15MB Cache�1333MHz�50W����������������������������������7912��AC1�����A45F ���������������������������������������������������������MC1 Intel�Xeon�Processor�E5-2628L�v2�8C�2.2GHz�20MB

(8)

Cache�1600MHz�70W����������������������������������7912��AC1�����A45G ���������������������������������������������������������MC1 Intel�Xeon�Processor�E5-2648L�v2�10C�2.0GHz�25MB Cache�1866MHz�70W����������������������������������7912��AC1�����A45H ���������������������������������������������������������MC1 Intel�Xeon�Processor�E5-2658�v2�10C�2.4GHz�25MB Cache�1866MHz�95W����������������������������������7912��AC1�����A45J ���������������������������������������������������������MC1 Intel�Carton�Label���������������������������������7912��AC1�����A498 ���������������������������������������������������������MC1 IBM�System�x�iDataPlex�dx360�M4�(Base�3)�����������7912��AC1�����A4BV ���������������������������������������������������������MC1 2�2PM�SAS�TO�4X�HD,�900MM��������������������������7912��AC1�����A4C4 ���������������������������������������������������������MC1 1�2PM�SAS�TO�4X�HD,�480MM��������������������������7912��AC1�����A4C5 ���������������������������������������������������������MC1 1�4PM�MICRO�SATA�TO�4X�HD,�910MM�������������������7912��AC1�����A4C6 ���������������������������������������������������������MC1 1�4PM�MICRO�SATA�TO�4X�HD,�520MM�������������������7912��AC1�����A4C7 ���������������������������������������������������������MC1 2�1PM�SAS�TO�4X�HD,�900MM��������������������������7912��AC1�����A4EZ ���������������������������������������������������������MC1 Note:The�Type,�Model,�and�Feature�information�is�to�be�included�in�announcement letters�for�US,�LA,�CAN.�In�EMEA,�this�applies�to�Germany�only�and�for�AP,�this applies�to�China�only. �����������������������������������������������Feature���������Part Description�������������������������Type�Model�Code����SEO�����Number ---��---�----���---�---Intel�Xeon�Phi�7120P����������������3331�HC1���A3GP���00J6162��00J6162 � 4GB�(1x4GB,�2Rx8,�1.35V)�PC3L-12800�CL11�ECC�DDR3 ��1600MHz�LP�RDIMM������������������3331�HC1���A3ZD���46W0735��46W0735 Starting�Point�models: �����������������������������������������������������Part Description������������������������������������������number ---�����������---iDataPlex�dx360�M4�server�Starting�Point�������������7912-FT3 Note:��All�models�are�GAVs. � � ����������������������������������������������������Part Description����������������������������MT����Mod����number ---����������----��---����---iDataPlex�dx360�M4�server ���������������������������������������7912��13J����791213J � ���������������������������������������7912��63J����791263J � ���������������������������������������7912��83J����791283J � Note:�xxJ�=�Japan�(Japanese) Options Part number��Description ---�---Pseudo�parts Note:The�following�Pseudo�part�numbers�cannot�be�ordered�as�stand-alone�parts�and�can only�be�ordered�as�part�of�a�configuration�created�in�ASIT. Pseudo part numbers�Description ---�---00Y7103�Intel�Xeon�Processor�E5-2695�v2�12C�2.4GHz�30MB�Cache�1866MHz ����������115W

(9)

00Y7104�Intel�Xeon�Processor�E5-2697�v2�12C�2.7GHz�30MB�Cache�1866MHz ����������130W 00Y7811�Intel�Xeon�Phi�7120P 00Y7216�Intel�Xeon�Processor�E5-2603�v2�4C�1.8GHz�10MB�Cache�1333MHz ����������80W 00Y7217�Intel�Xeon�Processor�E5-2609�v2�4C�2.5GHz�10MB�Cache�1333MHz ����������80W 00Y7218�Intel�Xeon�Processor�E5-2620�v2�6C�2.1GHz�15MB�Cache�1600MHz ����������80W 00Y7219�Intel�Xeon�Processor�E5-2630�v2�6C�2.6GHz�15MB�Cache�1600MHz ����������80W 00Y7220�Intel�Xeon�Processor�E5-2640�v2�8C�2.0GHz�20MB�Cache�1600MHz ����������95W 00Y7221�Intel�Xeon�Processor�E5-2650�v2�8C�2.6GHz�20MB�Cache�1866MHz ����������95W 00Y7222�Intel�Xeon�Processor�E5-2660�v2�10C�2.2GHz�25MB�Cache�1866MHz ����������95W 00Y7223�Intel�Xeon�Processor�E5-2670�v2�10C�2.5GHz�25MB�Cache�1866MHz ����������115W 00Y7224�Intel�Xeon�Processor�E5-2680�v2�10C�2.8GHz�25MB�Cache�1866MHz ����������115W 00Y7225�Intel�Xeon�Processor�E5-2690�v2�10C�3.0GHz�25MB�Cache�1866MHz ����������130W 00Y7227�Intel�Xeon�Processor�E5-2637�v2�4C�3.5GHz�15MB�Cache�1866MHz ����������130W 00Y7228�Intel�Xeon�Processor�E5-2643�v2�6C�3.5GHz�25MB�Cache�1866MHz ����������130W 00Y7229�Intel�Xeon�Processor�E5-2667�v2�8C�3.3GHz�25MB�Cache�1866MHz ����������130W 00Y7230�Intel�Xeon�Processor�E5-2630L�v2�6C�2.4GHz�15MB�Cache�1600MHz ����������60W�E,AP,JPN 00Y7231�Intel�Xeon�Processor�E5-2650L�v2�10C�1.7GHz�25MB�Cache�1600MHz ����������70W�E,AP,JPN 00Y7232�Intel�Xeon�Processor�E5-2618L�v2�6C�2.0GHz�15MB�Cache�1333MHz ����������50W 00Y7233�Intel�Xeon�Processor�E5-2628L�v2�8C�2.2GHz�20MB�Cache�1600MHz ����������70W 00Y7235�Intel�Xeon�Processor�E5-2648L�v2�10C�2.0GHz�25MB�Cache�1866MHz ����������70W 00Y7236�Intel�Xeon�Processor�E5-2658�v2�10C�2.4GHz�25MB�Cache�1866MHz ����������95W 00Y8394�2�2PM�SAS�TO�4X�HD,�900MM 00Y8395�1�2PM�SAS�TO�4X�HD,�480MM 00Y8396�1�4PM�MICRO�SATA�TO�4X�HD,�910MM 00Y8397�1�4PM�MICRO�SATA�TO�4X�HD,�520MM 00Y8642�2�1PM�SAS�TO�4X�HD,�900MM 46W0736�4GB�(1x4GB,�2Rx8,�1.35V)�PC3L-12800�CL11�ECC�DDR3�1600MHz�LP ���������RDIMM

Discretionary�information

IBM�System�x�iDataPlex Product�customization�services The�following�product�customization�services�are�included�with�iDataPlex�dx360�M4 server. For�information,�refer�to�the�following�and�contact�your�IBM�representative. � �Description������������������������������������������������Feature �---��������---�iDataPlex�Rack�Assembly�(100U)�����������������������������2312 �Rack�Installation�of�1U�Component�in�iDataPlex�������������2313 �Rack�Installation�of�>1U�Component�in�iDataPlex������������2314 �iDataPlex�Hardware�/�Configuration�Verification������������2315

(10)

Applicable�quantities�are�configuration-dependent�and�will�be�determined�in�the configuration�process.

Publications

The�User's�Guide,�Maintenance�Guide�,�and�Problem�Determination�and�Serice�Guide�, for�iDataPlex�dx360�M4�server�solutions,�in�US�English�versions,�are�available�from https://www-304.ibm.com/systems/support/ Under�Product�Support,�select�System�x,�and�under�Popular�links,�select�Publications lookup.�Select�the�Product�family�and�click�on�continue. IBM�Systems�Information�Center�provides�you�with�a�single�information�center�where you�can�access�product�documentation�for�IBM�systems�hardware,�operating�systems,�and server�software.�Through�a�consistent�framework,�you�can�efficiently�find�information and�personalize�your�access.�The�IBM�Systems�information�Center�is�at http://publib14.boulder.ibm.com/infocenter/systems The�languages�that�are�available�are: • English • French • German • Italian • Japanese • Brazilian�Portuguese • Simplified�Chinese • Traditional�Chinese

Services

Global�Technology�Services IBM�services�include�business�consulting,�outsourcing,�hosting�services, applications,�and�other�technology�management. These�services�help�you�learn�about,�plan,�install,�manage,�or�optimize�your�IT infrastructure�to�be�an�On�Demand�Business.�They�can�help�you�integrate�your�high-speed�networks,�storage�systems,�application�servers,�wireless�protocols,�and�an array�of�platforms,�middleware,�and�communications�software�for�IBM�and�many�non-IBM offerings.�IBM�is�your�one-stop�shop�for�IT�support�needs. For�details�on�available�services,�contact�your�IBM�representative�or�visit http://www.ibm.com/services/ For�details�on�available�IBM�Business�Continuity�and�Recovery�Services,�contact�your IBM�representative�or�visit http://www.ibm.com/services/continuity For�details�on�education�offerings�related�to�specific�products,�visit http://www.ibm.com/services/learning/index.html Select�your�country,�and�then�select�the�product�as�the�category.

Technical�information

(11)

Specified�operating�environment Physical�specifications System�x�iDataPlex�dx360�M4�server ���������������������������7912-13x ��������������������������---Processor�-����������������E5-2620�v2�6C�2.1�GHz�(80W) �Intel�QPI�����������������7.2�GT/s�(1) �Number�standard�-���������2 �Maximum�-�����������������2 Cache����������������������15�MB Memory�(DDR3)��������������1600 �DIMMs�standard�-����������4�x�4�GB �DIMM�sockets�-������������16 �Address�capability��������256�GB Video�-��������������������RH7757 �Memory�-������������������16�MB�(shared�with�IMM) HDD�controller�������������SATA �Channels�-����������������2 �Connector�internal�-������2 �Connector�external�-������0 Total�slots�-��������������2 �PCI�2.2�(32/33�MHz)�������0 �PCI-X�(64/133�MHz)��������0 �PCI_E�slot�Gen�3�x16������2 Slots�available�-����������2 Management�proc�-����������IMM Ethernet�controller�-������2�x�1�Gb DVD-ROM�-������������������None � ���������������������������7912-62x ��������������������������---Processor�-����������������E5-2650�v2�8C�2.6�GHz�(95W) �Intel�QPI�����������������8.0�GT/s�(1) �Number�standard�-���������2 �Maximum�-�����������������2 Cache����������������������20�MB Memory�(DDR3)��������������1866 �DIMMs�standard�-����������4�x�8�GB �DIMM�sockets�-������������16 �Address�capability��������256�GB Video�-��������������������RH7757 �Memory�-������������������16�MB�(shared�with�IMM) HDD�controller�������������SATA �Channels�-����������������2 �Connector�internal�-������2 �Connector�external�-������0 Total�slots�-��������������2 �PCI�2.2�(32/33�MHz)�������0 �PCI-X�(64/133�MHz)��������0 �PCI_E�slot�Gen�3�x16������2 Slots�available�-����������2 Management�proc�-����������IMM Ethernet�controller�-������2�x�1�Gb DVD-ROM�-������������������None � ���������������������������7912-83x ��������������������������---Processor�-����������������E5-2670�v2�10C�2.5�GHz�(115W) �Intel�QPI�����������������8.0�GT/s�(1) �Number�standard�-���������2 �Maximum�-�����������������2 Cache����������������������25�MB Memory�(DDR3)��������������1866 �DIMMs�standard�-����������4�x�8�GB �DIMM�sockets�-������������16 �Address�capability��������256�GB Video�-��������������������RH7757 �Memory�-������������������16�MB�(shared�with�IMM)

(12)

HDD�controller�������������SATA �Channels�-����������������2 �Connector�internal�-������2 �Connector�external�-������0 Total�slots�-��������������2 �PCI�2.2�(32/33�MHz)�������0 �PCI-X�(64/133�MHz)��������0 �PCI_E�slot�Gen�3�x16������2 Slots�available�-����������2 Management�processor�-�����IMM Ethernet�controller�-������2�x�1�Gb DVD-ROM�-������������������None Supported�Xeon�processors • Intel�Xeon�Processor�E5-2603�4C�1.8�GHz�10�MB�Cache�1066�MHz�80W • Intel�Xeon�Processor�E5-2637�2C�3.0�GHz�5�MB�Cache�1600�MHz�80W • Intel�Xeon�Processor�E5-2609�4C�2.40�GHz�10�MB�Cache�1066�MHz�80W • Intel�Xeon�Processor�E5-2620�6C�2.0�GHz�15�MB�Cache�1333M�Hz�95W • Intel�Xeon�Processor�E5-2630�6C�2.3�GHz�15�MB�Cache�1333�MHz�95W • Intel�Xeon�Processor�E5-2640�6C�2.5�GHz�15�MB�Cache�1333�MHz�95W • Intel�Xeon�Processor�E5-2650�8C�2.0�GHz�20�MB�Cache�1600�MHz�95W • Intel�Xeon�Processor�E5-2660�8C�2.2�GHz�20�MB�Cache�1600�MHz�95W • Intel�Xeon�Processor�E5-2680�8C�2.7�GHz�20�MB�Cache�1600�MHz�130W • Intel�Xeon�Processor�E5-2667�6C�2.9�GHz�15�MB�Cache�1600�MHz�130W • Intel�Xeon�Processor�E5-2630L�6C�2.0�GHz�15�MB�Cache�1333�MHz�60W • Intel�Xeon�Processor�E5-2650L�8C�1.8�GHz�20�MB�Cache�1600�MHz�70W • Intel�Xeon�Processor�E5-2670�8C�2.6�GHz�20�MB�Cache�1600�MHz�115W • Intel�Xeon�Processor�E5-2665�8C�2.4�GHz�20�MB�Cache�1600�MHz�115W Note:Processors�greater�than�95W�are�supported�only�in�special�bid�configurations generated�in�the�x-config�configurator�due�to�limitations�in�tracking�chassis�power requirements. iDataPlex�dx360�M4�server�specifications Electrical • 100�-�127�(nominal)�V�ac;�50�Hz�or�60�Hz;�11.72�A • 200�-�240�(nominal)�V�ac;�50�Hz�or�60�Hz;�5.36�A • Input�kilovolt-amperes�(kVA)�(approximately): – Minimum�configuration:�0.150�kVA – Maximum�configuration:�1.148�kVA • Btu�output: – Ship�configuration:�512.28�Btu/hr�(150�watts) – Full�configuration:�3,920.63�Btu/hr�(1,148�watts) Power�requirements�(per�rack)�max�configuration • Operating�voltage:�100�-�240�V�ac�at�50�Hz�or�60�Hz Note:For�nonredundant�power�supply. • Electrical�output:�41.5�kW�(maximum) • Power�source�loading:�51.9�kVA�(maximum)�-�Three�60�A�3ph�PDUs�at�17.3�kVA�each • Thermal�output:�41.5�kW�(141,460�Btu/hr)�(maximum�configuration) 900-watt�PSU�electrical�power�specifications: • 100�-�240�V�ac�auto-ranging�operation

(13)

• Built-in�overload�and�surge�protection • 100�-�127�(nominal)�V�ac;�50�or�60�Hz;�10.0�A�(maximum) • 200�-�240�(nominal)�V�ac;�50�or�60�Hz;�5.0�A�(maximum) 750-watt�PSU�electrical�power�specifications: • 100�-�240�V�ac�auto-ranging�operation • Built-in�overload�and�surge�protection • 100�-�127�(nominal)�V�ac;�50�or�60�Hz;�8.9�A�(maximum) • 200�-�240�(nominal)�V�ac;�50�or�60�Hz;�4.5�A�(maximum) 550-watt�PSU�electrical�power�specifications: • 100�-�240�V�ac�auto-ranging�operation • Built-in�overload�and�surge�protection • 100�-�127�(nominal)�V�ac;�50�or�60�Hz;�6.5�A�(maximum) • 200�-�240�(nominal)�V�ac;�50�or�60�Hz;�3.3�A�(maximum) Standards Equipment�approvals�and�safety • Japan�VCCI,�Class�A • IEC�60950-1�(CB�Certificate�and�CB�Test�Report) • China�CCC�GB4943.1,�GB9254,�Class�A,�GB17625.1 • Taiwan�BSMI�CNS13438,�Class�A;�CNS14336-1 • Australia/New�Zealand�AS/NZS�CISPR�22,�Class�A • Korea�KN22,�Class�A,�KN24 Operating�environment Environment The�IBM�System�dx360M4�compute�node�complies�with�ASHRAE�class�A3�specifications. Power�on: • Temperature:�5�C�to�40�C�(41�F�to�104�F)�up�to�950mm�(3,117�ft)�-�Above�950m,�de-rated�maximum�air�temperature�1C�/�175m • Humidity,�non-condensing:�-12�C�dew�point�(10.4�F)�and�8%�-�85%�relative�humidity • Maximum�dew�point:�24�C�(75�F) • Maximum�altitude:�3050�m�(10,000�ft)�and�5�C�-�28�C�(41�F�-�82�F) • Maximum�rate�of�temperature�change:�20�C/hr�(68�F/hr)�for�HDDs Power�off: • Temperature:�5�C�to�45�C�(41�F�-�113�F) • Relative�humidity:�8%�-�85% • Maximum�dew�point:�27�C�(80.6�F) Storage�(non-operating): • Temperature:�1�C�to�60�C�(33.8�F�-�140�F) • Altitude:�3050�m�(10,000�ft) • Relative�humidity:�5%�-�80% • Maximum�dew�point:�29�C�(84.2�F) Shipment�(non-operating):

(14)

• Temperature:�-40�C�to�60�C�(-40�F�-�140�F) • Altitude:�10,700�m�(35,105�ft) • Relative�humidity:�5%�-�100% • Maximum�dew�point:�29�C�(84.2�F) Particulate�contamination Attention: The�IBM�System�dx360M4�server�is�designed�to�ASHRAE�Class�A3,�Temperature:�36�C�-�40 C�(96.8�F�-�104�F)�with�relaxed�support: • The�dx360�M4�server�supports�cloud-like�workload�with�no�performance�degradation acceptable�(Turbo-Off). • Under�no�circumstance�can�any�combination�of�worst�case�workload�and�configuration result�in�system�shutdown�or�design�exposure�at�40�C. • The�worst�case�workload�(like�Linpack,�Turbo-On)�may�have�performance�degradation Specific�processors�supported�environment: • Processor�E5-2690�:�Temperature:�5�C�-�35�C�(41�F�-�95�F);�Altitude�:�0-�950�m (31,17�ft) • GPGPU�node�:�Temperature:�5�C�-�35�C�(41�F�-�95�F);�Altitude�:�0-�950�m�(31,17�ft) • Intel�MIC�7120P�:�Temperature:�5�C�-�27�C�(41�F�-�80.6�F);�Altitude�:�0�-�304.8�m (1000�ft) Japan�energy�saving�standard Energy�value�tables�-�iDataPlex�dx360�M4 � CFF�900W ����������������������������������2011�����W1 Processor������CTP������W1/CTP����Criteria�Judement ---���---��---���---��---E5-2628L�60W���173067���0.00053���0.0019���0.00137 E5-2630L�60W���142400���0.00062���0.0019���0.00128 E5-2648L�70W���196000���0.00047���0.0019���0.00143 E5-2650L�70W���166600���0.00056���0.0019���0.00134 E5-2603��80W���70800����0.00122���0.0019���0.00068 E5-2609��80W���98334����0.00087���0.0019���0.00103 E5-2620��80W���124600���0.00075���0.0019���0.00115 E5-2630��80W���154266���0.00055���0.0019���0.00135 E5-2640��95W���157334���0.00061���0.0019���0.00129 E5-2650��95W���204534���0.00048���0.0019���0.00142 E5-2658��95W���235200���0.00041���0.0019���0.00149 E5-2660��95W���215600���0.00044���0.0019���0.00146 E5-2670�115W���245000���0.00037���0.0019���0.00153 E5-2680�115W���274400���0.00033���0.0019���0.00157 E5-2695�115W���281600���0.00036���0.0019���0.00154 E5-2637�130W���137667���0.00064���0.0019���0.00126 E5-2643�130W���207667���0.00045���0.0019���0.00145 E5-2667�130W���259600���0.00036���0.0019���0.00154 E5-2690�130W���294000���0.00031���0.0019���0.00159 E5-2697�130W���316800���0.00031���0.0019���0.00159 � � CFF�750W ����������������������������������2011�����W1 Processor������CTP������W1/CTP����Criteria�Judement ---���---��---���---��---E5-2628L�60W���173067���0.00050���0.0019���0.00140 E5-2630L�60W���142400���0.00060���0.0019���0.00130 E5-2648L�70W���196000���0.00045���0.0019���0.00145 E5-2650L�70W���166600���0.00053���0.0019���0.00137 E5-2603��80W���70800����0.00119���0.0019���0.00071 E5-2609��80W���98334����0.00085���0.0019���0.00105 E5-2620��80W���124600���0.00073���0.0019���0.00117 E5-2630��80W���154266���0.00054���0.0019���0.00136

(15)

E5-2640��95W���157334���0.00058���0.0019���0.00132 E5-2650��95W���204534���0.00045���0.0019���0.00145 E5-2658��95W���235200���0.00039���0.0019���0.00151 E5-2660��95W���215600���0.00042���0.0019���0.00148 E5-2670�115W���245000���0.00036���0.0019���0.00154 E5-2680�115W���274400���0.00032���0.0019���0.00158 E5-2695�115W���281600���0.00035���0.0019���0.00155 � � CFF�550W ����������������������������������2011�����W1 Processor������CTP������W1/CTP����Criteria�Judement ---���---��---���---��---E5-2628L�60W���173067���0.000506��0.0019���0.001393 E5-2630L�60W���142400���0.000600��0.0019���0.001299 E5-2648L�70W���196000���0.000451��0.0019���0.001448 E5-2650L�70W���166600���0.000526��0.0019���0.001373 E5-2603��80W���70800����0.001193��0.0019���0.000706 E5-2609��80W���98334����0.000855��0.0019���0.001044 E5-2620��80W���124600���0.000733��0.0019���0.001166 E5-2630��80W���154266���0.000543��0.0019���0.001356 Homologation Hardware�requirements For�service,�the�iDataPlex�dx360�M4�server�requires�a�compatible: • Monitor • Combination�USB�keyboard�and�pointing�device,�such�as�IBM�part�number�40K5372 • USB�CD-RW/DVD�drive,�such�as�the�IBM�and�Lenovo�part�number�73P4515�or�73P4516 Note:Rack�must�have�784.86�mm�(30.9�in)�minimum�clearance�on�the�front�and�back�sides of�the�rack�to�allow�service. Software�requirements The�following�network�operating�systems�are�supported�in�the�iDataPlex�dx360�M4 server: • Microsoft – Microsoft�Windows�Server�2008�R2 – Microsoft�Windows�Server�2008,�Datacenter�x64�Edition – Microsoft�Windows�HPC�Server�2008 • Linux – Red�Hat�Enterprise�Linux�5�Server�with�Xen�x64�Edition – Red�Hat�Enterprise�Linux�5�Server�x64�Edition – Red�Hat�Enterprise�Linux�6�Server�x64�Edition – SUSE�Linux�Enterprise�Server�10�x64�Edition – SUSE�Linux�Enterprise�Server�11�with�Xen�x64�Edition – SUSE�Linux�Enterprise�Server�11�x64�Edition • VMware – ESX�4.1,�ESXi�4.1,�5.0,�and�5.1 Note:For�additional�support,�certification,�and�version�information�on�network operating�systems,�visit http://www-03.ibm.com/servers/eserver/serverproven/compat/us/ Compatibility All�components�of�the�System�x�iDataPlex�dx360�M4�server�are�compatible�when purchased�as�a�supported�iDataPlex�dx360�M4�server�solution.

(16)

Limitations System�x�iDataPlex�dx360�M4�server�options�are�supported�only�when�ordered�and deployed�in�an�iDataPlex�dx360�M4�server�solution.�They�will�not�be�supported�when ordered�without�a�corresponding�order�for�an�iDataPlex�dx360�M4�server�configuration. Regarding�the�use�of�solid-state�disk�drives,�solid-state�memory�cells�have�an intrinsic,�finite�number�of�write�cycles�that�each�cell�can�incur.�As�a�result,�each solid-state�device�has�a�maximum�amount�of�write�cycles�to�which�it�can�be�subjected, documented�as�TBW�(Total�Bytes�Written).�IBM�is�not�responsible�for�replacement�of hardware�that�has�reached�the�maximum�guaranteed�number�of�write�cycles.�This�limit may�be�revealed�as�the�device�failing�to�respond�to�system-generated�commands�or becoming�incapable�of�being�written�to.�Additional�information�is�available�at http://www-03.ibm.com/systems/x/options/storage/solidstate/index.html Planning�information Customer�responsibilities Installation�of�hardware�components�is�provided�by�IBM�on�the�iDataPlex�dx360�M4 server. Clients�are�responsible�for�preparing�their�site�for�installation. You�are�expected�to�review�the�Installation�Planning�Guide�before�the�delivery of�your�iDataPlex�dx360�M4�server.�Clients'�responsibilities�must�be�verified�as complete�before�scheduling�an�IBM�installer�to�come�on�site.�Visit https://www-304.ibm.com/systems/support/ To�service�your�iDataPlex�dx360�M4�server�or�obtain�IBM�service,�the�iDataPlex�dx360 M4�server�requires�a�compatible: • Monitor • Combination�USB�keyboard�and�pointing�device,�such�as�IBM�part�number�40K5372 • USB�CD-RW/DVD�drive,�such�as�the�IBM�and�Lenovo�part�number�73P4515�or�73P4516 Note:Rack�must�have�784.86�mm�(30.9�in)�minimum�clearance�on�the�front�and�back�sides of�the�rack�to�allow�service. Cable�orders All�cables�are�supplied�with�the�iDataPlex�dx360�M4�server.�Depending�on�the applications,�the�cables�may�be�fully�installed,�partially�installed�(plugged�at�one end�and�packaged�for�shipping),�or�included�as�part�of�a�shipment�group. Installability Installation�of�hardware�components�is�provided�by�IBM�with�the�exception�of�plumbing connections�to�the�optional�Rear�Door�Heat�eXchanger.�(Refer�to�the�Limitations section�for�additional�information.) Packaging System�x�iDataPlex�dx360�M4�server�shipping�contents iDataPlex�CD,�which�contains�the�following�documenation�as�portable�document�format (PDF)�files: • IBM�Safety�Information�(multilingual) • IBM�Rack�Safety�Information�(multilingual) • IBM�Environmental�Notices�and�User�Guide�(multilingual) • IBM�iDataPlex�Rack�Type�7825�Installation�and�User's�Guide • IBM�iDataPlex�Rack�Type�7197�Installation�and�User's�Guide

(17)

• IBM�Rear�Door�Heat�eXchanger�for�the�iDataPlex�Rack�Installation�and�Maintenance Guide • IBM�System�x�iDataPlex�dx360�M4�User's�Guide�for�Type�7912,�7913 • IBM�System�x�iDataPlex�dx360�M4�User's�Guide�for�Type�7918,�7919 • IBM�System�x�iDataPlex�dx360�M4�Problem�Determination�and�Service�Guide�for�Type 7912,�7913 • IBM�System�x�iDataPlex�dx360�M4�Problem�Determination�and�Service�Guide�for�Type 7918,�7919 • Licenses�and�Attributions�Documents • IBM�DPI�C13�PDU+,�DPI�C13�3-phase�PDU+�DPI�C19�PDU+,�and�DPI�C19�3-phase�PDU+ Installation�and�Maintenance�Guide • IBM�License�Agreement�for�Machine�Code • UEFI�Disclaimer�Notices�File IBM�Types�7912,�7918,�and�Rear�Door�Heat�eXchanger�Warranty�and�Support�Information is�in�printed�format. Important�Notices�multilingual�document�that�contains�all�of�the�legal,�safety, emissions,�and�environmental�statements�in�printed�format. Security,�auditability,�and�control This�offering�uses�the�security�and�auditability�features�from�standard�IBM�offerings and�supported�Linux�distributions. The�customer�is�responsible�for�evaluation,�selection,�and�implementation�of�security features,�administrative�procedures,�and�appropriate�controls�in�application�systems and�communications�facilities.

IBM�Electronic�Services

Electronic�Service�Agent�and�the�IBM�Electronic�Support�web�portal�are�dedicated to�providing�fast,�exceptional�support�to�IBM�Systems�customers.�The�IBM�Electronic Service�Agent�tool�is�a�no-additional-charge�tool�that�proactively�monitors�and reports�hardware�events,�such�as�system�errors,�performance�issues,�and�inventory. The�Electronic�Service�Agent�tool�can�help�you�stay�focused�on�your�company's strategic�business�initiatives,�save�time,�and�spend�less�effort�managing�day-to-day�IT�maintenance�issues.�Servers�enabled�with�this�tool�can�be�monitored�remotely around�the�clock�by�IBM�Support�all�at�no�additional�cost�to�you. For�System�x�users�running�Windows�or�Linux,�Electronic�Service�Agent�is�available as�a�download�from�www.ibm.com/support/esa.�Electronic�Service�Agent�is�designed to�automatically�and�electronically�report�system�failures�and�utilization�issues to�IBM,�which�can�result�in�faster�problem�resolution�and�increased�availability. System�configuration�and�inventory�information�collected�by�the�Electronic�Service Agent�tool�also�can�be�viewed�on�the�secure�Electronic�Support�web�portal,�and�used to�improve�problem�determination�and�resolution�by�you�and�the�IBM�support�team. To�access�the�tool�main�menu,�simply�type�"smitty�esa_main",�and�select�"Configure Electronic�Service�Agent."�In�addition,�ESA�now�includes�a�powerful�Web�user interface,�giving�the�administrator�easy�access�to�status,�tool�settings,�problem information,�and�filters.�For�more�information�and�documentation�on�how�to�configure and�use�Electronic�Service�Agent,�refer�to http://www.ibm.com/support/electronic The�IBM�Electronic�Support�portal�is�a�single�Internet�entry�point�that�replaces�the multiple�entry�points�traditionally�used�to�access�IBM�Internet�services�and�support. This�portal�enables�you�to�gain�easier�access�to�IBM�resources�for�assistance�in resolving�technical�problems.�The�My�Systems�and�Premium�Search�functions�make�it even�easier�for�Electronic�Service�Agent�tool-enabled�customers�to�track�system inventory�and�find�pertinent�fixes.

(18)

Benefits Increased�uptime:��The�Electronic�Service�Agent�tool�is�designed�to�enhance�the Warranty�or�Maintenance�Agreement�by�providing�faster�hardware�error�reporting�and uploading�system�information�to�IBM�Support.�This�can�translate�to�less�wasted�time monitoring�the�"symptoms,"diagnosing�the�error,�and�manually�calling�IBM�Support�to open�a�problem�record.�Its�24�x�7�monitoring�and�reporting�mean�no�more�dependence�on human�intervention�or�off-hours�customer�personnel�when�errors�are�encountered�in�the middle�of�the�night. Security:��The�Electronic�Service�Agent�tool�is�designed�to�be�secure�in�monitoring, reporting,�and�storing�the�data�at�IBM.�The�Electronic�Service�Agent�tool�securely transmits�either�via�the�Internet�(HTTPS�or�VPN)�or�modem,�and�can�be�configured�to communicate�securely�through�gateways�to�provide�customers�a�single�point�of�exit from�their�site.�Communication�is�one�way.�Activating�Electronic�Service�Agent�does not�enable�IBM�to�call�into�a�customer's�system.�System�inventory�information�is stored�in�a�secure�database,�which�is�protected�behind�IBM�firewalls.�It�is�viewable only�by�the�customer�and�IBM.�The�customer's�business�applications�or�business�data is�never�transmitted�to�IBM. More�accurate�reporting:��Since�system�information�and�error�logs�are�automatically uploaded�to�the�IBM�Support�center�in�conjunction�with�the�service�request,�customers are�not�required�to�find�and�send�system�information,�decreasing�the�risk�of misreported�or�misdiagnosed�errors.�Once�inside�IBM,�problem�error�data�is�run through�a�data�knowledge�management�system�and�knowledge�articles�are�appended�to�the problem�record. Customized�support:��Using�the�IBM�ID�entered�during�activation,�customers�can�view system�and�support�information�in�the�"My�Systems"�and�"Premium�Search"�sections�of the�Electronic�Support�Web�site�at http://www.ibm.com/support/electronic My�Systems�provides�valuable�reports�of�installed�hardware�and�software�using information�collected�from�the�systems�by�Electronic�Service�Agent.�Reports are�available�for�any�system�associated�with�the�customer's�IBM�ID.�Premium Search�combines�the�function�of�search�and�the�value�of�Electronic�Service�Agent information,�providing�advanced�search�of�the�technical�support�knowledgebase.�Using Premium�Search�and�the�Electronic�Service�Agent�information�that�has�been�collected from�your�system,�customers�are�able�to�see�search�results�that�apply�specifically�to their�systems. For�more�information�on�how�to�utilize�the�power�of�IBM�Electronic�Services,�contact your�IBM�Systems�Services�Representative,�or�visit http://www.ibm.com/support/electronic

Prices

To�obtain�copies�of�the�IBM�Statement�of�Limited�Warranty,�contact�your�reseller�or IBM. Warranty�period • Machine�type�7912�-�Three�years • Optional�features�-�One�year Extended�Warranty�Service An�IBM�part�or�feature�installed�during�the�initial�installation�of�an�IBM�machine is�subject�to�a�full�warranty�effective�on�the�date�of�installation�of�the�machine. An�IBM�part�or�feature�which�replaces�a�previously�installed�part�or�feature�assumes the�remainder�of�the�warranty�period�for�the�replaced�part�or�feature.�An�IBM�part�or

(19)

feature�added�to�a�machine�without�replacing�a�previously�installed�part�or�feature is�subject�to�a�full�warranty�effective�on�its�date�of�installation.�Unless�specified otherwise,�the�warranty�period,�type�of�warranty�service,�and�service�level�of�a�part or�feature�is�the�same�as�the�machine�it�is�installed. The�following�have�been�designated�as�consumables,�supply�items,�or�structural�parts and�therefore�not�covered�by�this�warranty: • Air�divider • SB�tray�cover • HDD�filler�3.5�SS • HDD�filler�2.5�SS • PCI�slot�blank�filler • Node�expansion�MISC�kit • 3U�bracket�kit • Battery�holder • 2U�chassis • 2U�chassis�top�cover • Rail�kit • Rack�rail�kit • Rail�Kit�with�power�cord�bracket • 2U�chassis�kit Warranty�service If�required,�IBM�provides�repair�or�exchange�service,�depending�on�the�type�of warranty�service�specified�below�for�the�machine.�IBM�will�attempt�to�resolve your�problem�over�the�telephone�or�electronically�by�access�to�an�IBM�Web�site. Certain�machines�contain�remote�support�capabilities�for�direct�problem�reporting, remote�problem�determination,�and�resolution�with�IBM.�You�must�follow�the�problem determination�and�resolution�procedures�that�IBM�specifies.�Following�problem determination,�if�IBM�determines�On-site�Service�is�required,�scheduling�of�service will�depend�upon�the�time�of�your�call,�machine�technology�and�redundancy,�and availability�of�parts.�Service�levels�are�response-time�objectives�and�are�not guaranteed.�The�specified�level�of�warranty�service�may�not�be�available�in�all worldwide�locations.�Additional�charges�may�apply�outside�IBM's�normal�service�area. Contact�your�local�IBM�representative�or�your�reseller�for�country-�and�location-specific�information. The�type�of�service�is�Customer�Replaceable�Unit�(for�example,�keyboard,�mouse, speaker,�memory,�or�hard�disk�drive)�Service�and�On-site�Service. Customer�Replaceable�Unit�(CRU)�Service IBM�provides�a�replacement�CRU�to�you�for�you�to�install.�CRU�information�and replacement�instructions�are�shipped�with�your�machine�and�are�available�from�IBM�at any�time�on�your�request.�A�CRU�is�designated�as�being�either�a�Tier�1�(mandatory) or�a�Tier�2�(optional)�CRU.�Installation�of�Tier�1�CRUs,�as�specified�in�this announcement,�is�your�responsibility.�If�IBM�installs�a�Tier�1�CRU�at�your�request, you�will�be�charged�for�the�installation.You�may�install�a�Tier�2�CRU�yourself or�request�IBM�to�install�it,�at�no�additional�charge,�under�the�type�of�warranty service�designated�for�your�Machine. Based�upon�availability,�a�CRU�will�be�shipped�for�next�business�day�(NBD)�delivery. IBM�specifies�in�the�materials�shipped�with�a�replacement�CRU�whether�a�defective�CRU must�be�returned�to�IBM.�When�return�is�required,�return�instructions�and�a�container are�shipped�with�the�replacement�CRU,�and�you�may�be�charged�for�the�replacement CRU�if�IBM�does�not�receive�the�defective�CRU�within�15�days�of�your�receipt�of�the replacement.
