Reference Document
For LCD Module
Product No
１
B3GB02
Documenet No SPC1B3GB02V104
Version
Ver.1.04
REPRO ELECTRONICS CORPORATION
Maruwa Building 2F,2-2-19 Sotokanda,Chiyoda-ku,Tokyo 1001-0021 Japan TEL: +81-3-3255-9600 / FAX: +81-50-3488-4718Revision History
Version Date by Description Comments
1.00 06/Dec/2006 gyg Initial Version
1.01 11/Dec/2006 rt 1.02 26/Dec/2006 rt 1.03 28/Dec/2006 rt
1.04 19/Jun/2008 Jeffrey Add register description
Contents---Page
1. General specifications ...2
2. Outline Structure ...2
2.1. LCD Module ...2
2.2. Backlight ...2
2.3. Interface Signals...3
3. Timing Chart...4
3.1. RGB Interface ...4
3.2. Serial Interface ...5
4. Use LCD Module ...5
4.1. Data direction ...5
4.2. Initial code ...6
4.3. Lcd sleep mode code...8
4.4. Lcd Power off code ...8
4.5. Sub Function Description...9
1. General specifications
Display format：240×（RGB）×320 Outline dimensions： 2.4’’inch
Color：262k color (R：6bit，G：6bit，B：6bit) Current LED：typical 20mA
Signals：23（Except of Power and GND）
Power Signals：Power（+3V）3，Power(+2V)2，GND 5 LED Signals：4
2. Outline Structure
2.1. LCD Module
IC2 IC1Fig. 1 LCD outline structure
2.2. Backlight
Pin 1, 2 Pin 3, 4
2.3. Interface Signals
Pin No. Symbol Description I/O
1 GND Ground I
2 *RESET Reset(low active) I
3 GND Ground I
4 VSYNC Vertical synchronizing signal I
5 VEE Power (+3V) I
6 VEE Power (+3V) I
7 VEE Power (+3V) I
8 SDI Serial data input I
9 SCLK Serial clock I
10 GND Ground I
11 VDEN Video data enable signal I
12 VCLK Video data sampling clock I
13 VDD Power logic (+2V) I
14 VDD Power logic (+2V) I
15 *SCS Serial interface chip select(low active) I
16 GND Ground I
17 R5 Red data signal(MSB) I
18 R4 Red data signal I
19 R3 Red data signal I
20 R2 Red data signal I
21 R1 Red data signal I
22 R0 Red data signal(LSB) I
23 G5 Green data signal(MSB) I
24 G4 Green data signal I
25 G3 Green data signal I
26 G2 Green data signal I
27 G1 Green data signal I
28 G0 Green data signal(LSB) I
29 B5 Blue data signal(MSB) I
30 B4 Blue data signal I
31 B3 Blue data signal Backlight Cathode I
32 B2 Blue data signal I
33 B1 Blue data signal I
34 B0 Blue data signal(LSB) I
35 GND Ground I
Note: I Input O Output
3. Timing Chart
3.1. RGB Interface
Input display data by each terminal of VSYNC, VDEN, VCLK, R0~R5, G0~G5, B0~B5.
Fig. 3 RGB timing chart
Pin Description Symbol Typical Unit Note
Cycle tv 334 H (Frequency) Fv 16.64 ms Front Porch tvf 2 H Back Porch tvb 8 H Pulse Width tvp 4 H VSYNC Display Period tvd 320 H Vertical synchronizing signal Cycle td 300 CLK (Frequency) Fd 50 us Pulse Width tdp 60 CLK VDEN Display Period tdd 240 CLK Horizontal Synchronizing signal VCLK fclk 6 MHz
3.2. Serial Interface
It is possible to set LCD driver register. Specification of register and setting of register value is done by serial interface.
This serial interface is composed by 24-bit data or by 32-bit data. Some registers are set by 24-bit data, and some registers are set by 32-bit data.
Keep chip select active during transmission of total 24-bit or 32-bit data.
SCLK
SDI
D23 D21 D22 D20 D19 D18 D17 D16 D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0SCS

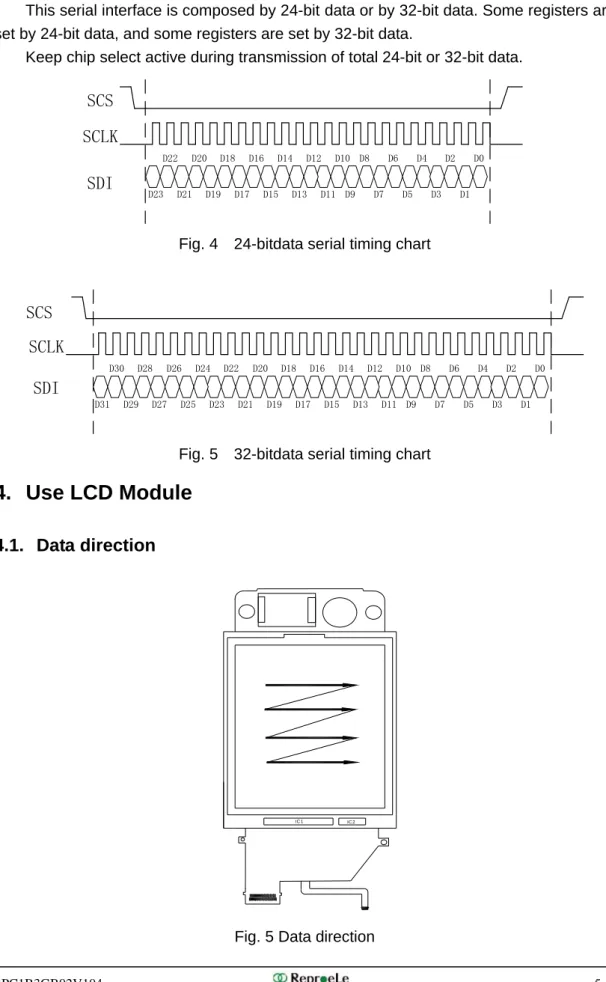

Fig. 4 24-bitdata serial timing chart
SCLK
SDI
D23 D21 D22 D20 D19 D18 D17 D16 D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0SCS
D24 D25 D26 D27 D28 D29 D30 D31Fig. 5 32-bitdata serial timing chart
4. Use LCD Module
4.1. Data direction
IC 2 IC 1
4.2. Initial code
(1) Power on and Reset (2) Set LCD driver register:LCD_Reg_Set1(0x0070, 0x80); Delay(115); //11.5ms=115*100us LCD_Reg_Set1(0x007A, 0x01); LCD_Reg_Set1(0x0070, 0xC8); LCD_Reg_Set1(0x00A1, 0x00); LCD_Reg_Set1(0x00A0, 0x00); LCD_Reg_Set1(0x0072, 0xA3); LCD_Reg_Set1(0x0073, 0x04); LCD_Reg_Set1(0x0075, 0x46); LCD_Reg_Set1(0x0076, 0x23); LCD_Reg_Set1(0x0077, 0x08); LCD_Reg_Set1(0x0078, 0x08); LCD_Reg_Set1(0x0079, 0x00); LCD_Reg_Set1(0x007F, 0xF0); LCD_Reg_Set1(0x0071, 0x81); Delay(3); LCD_Reg_Set1(0x000D, 0x20); LCD_Reg_Set1(0x002E, 0x00); LCD_Reg_Set1(0x0011, 0x00); Delay(340); LCD_Reg_Set1(0x0012, 0x00); LCD_Reg_Set1(0x0085, 0x74); LCD_Reg_Set1(0x0021, 0x37); LCD_Reg_Set1(0x0022, 0x02); LCD_Reg_Set1(0x0023, 0x24); LCD_Reg_Set1(0x0024, 0x13); LCD_Reg_Set1(0x0025, 0x0A); LCD_Reg_Set1(0x0026, 0x82); LCD_Reg_Set1(0x0027, 0x01); LCD_Reg_Set1(0x006F, 0x00); LCD_Reg_Set1(0x001E, 0x25); LCD_Reg_Set1(0x001F, 0x59); LCD_Reg_Set2(0x0030, 0x0777); LCD_Reg_Set2(0x0031, 0x0444); LCD_Reg_Set2(0x0032, 0x0555); LCD_Reg_Set2(0x0033, 0x0444); LCD_Reg_Set2(0x0034, 0x0333); LCD_Reg_Set2(0x0035, 0x0333); LCD_Reg_Set2(0x0036, 0x0333); LCD_Reg_Set2(0x0037, 0x0333); LCD_Reg_Set2(0x0038, 0x0444);
LCD_Reg_Set2(0x0039, 0x0555); LCD_Reg_Set2(0x003A, 0x0666); LCD_Reg_Set2(0x003B, 0x0666); LCD_Reg_Set2(0x003C, 0x0777); LCD_Reg_Set2(0x003D, 0x0777); LCD_Reg_Set2(0x003E, 0x0777); LCD_Reg_Set2(0x003F, 0x0777); LCD_Reg_Set2(0x0040, 0x0777); LCD_Reg_Set2(0x0041, 0x0777); LCD_Reg_Set2(0x0042, 0x0777); LCD_Reg_Set2(0x0043, 0x0777); LCD_Reg_Set2(0x0044, 0x0777); LCD_Reg_Set2(0x0045, 0x0777); LCD_Reg_Set2(0x0046, 0x0777); LCD_Reg_Set2(0x0047, 0x0777); LCD_Reg_Set2(0x0048, 0x0777); LCD_Reg_Set2(0x0049, 0x0777); LCD_Reg_Set2(0x004A, 0x0777); LCD_Reg_Set2(0x004B, 0x0777); LCD_Reg_Set2(0x004C, 0x0777); LCD_Reg_Set2(0x004D, 0x0666); LCD_Reg_Set2(0x004E, 0x0666); LCD_Reg_Set2(0x004F, 0x0666); LCD_Reg_Set1(0x0014, 0x00); LCD_Reg_Set1(0x0000, 0x04); LCD_Reg_Set1(0x0001, 0x07); LCD_Reg_Set1(0x0002, 0x00); LCD_Reg_Set2(0x0003, 0x0000); LCD_Reg_Set1(0x0004, 0xEF); LCD_Reg_Set2(0x0005, 0x013F); LCD_Reg_Set1(0x0006, 0xFF); LCD_Reg_Set2(0x0007, 0x01FF); LCD_Reg_Set1(0x0008, 0xFF); LCD_Reg_Set2(0x0009, 0x01FF); LCD_Reg_Set1(0x000A, 0x00); LCD_Reg_Set1(0x000B, 0x00); LCD_Reg_Set1(0x000C, 0x00); LCD_Reg_Set1(0x0014, 0x00); LCD_Reg_Set2(0x0015, 0x0000); LCD_Reg_Set2(0x0016, 0x0000); LCD_Reg_Set2(0x0017, 0x01FF); LCD_Reg_Set2(0x0018, 0x01FF); LCD_Reg_Set1(0x0013, 0x00); LCD_Reg_Set2(0x0019, 0x01FF);
LCD_Reg_Set2(0x001B, 0x01FF); LCD_Reg_Set2(0x001C, 0x01FF); LCD_Reg_Set2(0x001A, 0x01FF); LCD_Reg_Set1(0x001D, 0x0E); LCD_Reg_Set1(0x000D, 0x00); Delay(4);
//start output of CLK,HSY,VSY now LCD_Reg_Set1(0x0011, 0x80); Delay(400); LCD_Reg_Set1(0x002E, 0x0D);//0x0D LCD_Reg_Set1(0x001E, 0x29); LCD_Reg_Set1(0x0011, 0xC0); LCD_Reg_Set1(0x000D, 0x24); Delay(200); LCD_Reg_Set1(0x0010, 0x02); Delay(26);
// Start to send RGB display data.
4.3. Lcd sleep mode code
LCD_Reg_Set1(0x0011, 0x40); Delay(390); LCD_Reg_Set1(0x001E, 0x25); LCD_Reg_Set1(0x0011, 0x00); LCD_Reg_Set1(0x002E, 0x00); Delay(130); LCD_Reg_Set1(0x000D, 0x20); LCD_Reg_Set1(0x0010, 0x04); Delay(390); LCD_Reg_Set1(0x0071, 0x09); Delay(160); LCD_Reg_Set1(0x0071, 0x05); LCD_Reg_Set1(0x0071, 0x71); LCD_Reg_Set1(0x007A, 0x01); LCD_Reg_Set1(0x00A0, 0x55); LCD_Reg_Set1(0x00A1, 0xAA); LCD_Reg_Set1(0x0070, 0x00);4.4. Lcd Power off code
LCD_Reg_Set1(0x0011, 0x40); Delay(390); LCD_Reg_Set1(0x001E, 0x25); LCD_Reg_Set1(0x0011, 0x00); LCD_Reg_Set1(0x002E, 0x00); Delay(100); LCD_Reg_Set1(0x000D, 0x20);
LCD_Reg_Set1(0x0010, 0x04); Delay(398); LCD_Reg_Set1(0x0071, 0x09); Delay(160); LCD_Reg_Set1(0x0071, 0x09); LCD_Reg_Set1(0x0071, 0x71); LCD_Reg_Set1(0x007A, 0x01); LCD_Reg_Set1(0x00A0, 0xAA); LCD_Reg_Set1(0x00A1, 0xAA); LCD_Reg_Set1(0x0070, 0x00); Delay(20000); LCD_Reg_Set1(0x0070, 0x80); Delay(53); LCD_Reg_Set1(0x007A, 0x01); LCD_Reg_Set1(0x0071, 0x0A); Delay(160); LCD_Reg_Set1(0x0071, 0x71); LCD_Reg_Set1(0x00A0, 0xAA); LCD_Reg_Set1(0x00A1, 0xAA); LCD_Reg_Set1(0x0070, 0x00);
4.5. Sub Function Description
(1) LCD_Reg_Set1(unsigned int reg, unsigned int data) Function: Set the LCD driver register.
Para1: reg---- Select the register through serial interface.
Para2: data----The set value for register through serial interface, the data should 8 bits.
(2) LCD_Reg_Set2(unsigned int reg, unsigned int data) Function: Set the LCD driver register.
Para1: reg---- Select the register through serial interface.
Para2: data----The set value for register through serial interface, the data should 16 bits.
(3) Delay (unsigned int time) Function: Delay time*100us.
5. Register function description
(1) Display control (R0010h)
R/W IB15 IB14 IB13 IB12 IB11 IB10 IB9 IB8 IB7 IB6 IB5 IB4 IB3 IB2 IB1 IB0
W 0 0 0 0 0 0 0 0 0 0 0 0 0 0 DEN 0
(2) Entry Mode (R0000h)
R/W IB15 IB14 IB13 IB12 IB11 IB10 IB9 IB8 IB7 IB6 IB5 IB4 IB3 IB2 IB1 IB0 W 0 0 0 0 0 0 1 0 0 0 GSDC 0 SSDC 0 0
SSDC: SSDC is a bit which selects the source scanning direction. If this bit is set, the
LR output pin is changed and the display is reversed (right and left). LR signal changes by frame synchronization (VSYNC synchronization). If ‘1’ is set in SSDC, the display will be reversed (right and left). Therefore, in accordance with the display reversal, the analog video output of 4chxRGB is reversed in bit order. At this time, the polarity of SCK and SCKB is reversed.
SSDC Description
0 LR output is high
1 LR output is low
GSDC: GSDC is a bit to select the direction of gate scanning. If this bit is set, the
UD output pin is changed and the display is reversed (up and down).UD signal changes by frame synchronization (VSYNC synchronization).
GSDC Description
0 UD output is low
1 UD output is high
Select the direction of the source driver channel in pixel unit by setting GSDC and SSDC.
ITEM GSDC=1 GSDC=0
SSDC=1
FF02S25SV FF02S15SV FF02S17SV FF02S27SV FF02S29SV FF02S31SV FF02S33SV FF02S35SV FF02S45SV FF02S55SV FF02S65SV A PRODUCT .
