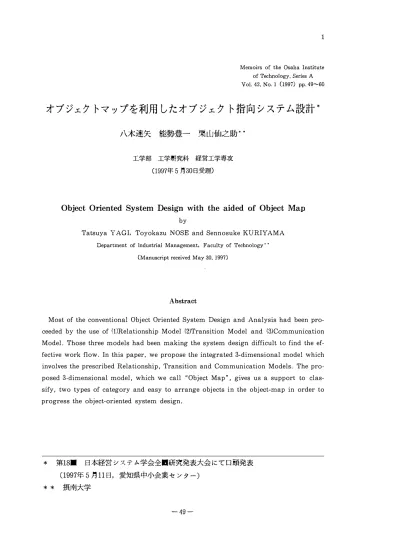

Memoirs of the Osaka Institute of Technology, Series A Vol. 42, No. 1 (1997) pp. 49~60
オブジェクトマップを利用したオブジェクト指向システム設計
*八木達矢 能勢豊一 栗山仙之助
* * 工学部 工学研究科 経営工学専攻 (1997年5月30日受理)Object Oriented System Design with the aided of Object Map
byTatsuya YAGI, Toyokazu NOSE and Sennosuke KURIY AMA Department of Industrial Management, Faculty of Technology· •
(Manuscript received May 30, 1997)
Abstract
Most of the conventional Object Oriented System Design and Analysis had been pro ceeded by the use of (l)Relationship Model (2)Transition Model and (3)Communication Model. Those three models had been making the system design difficult to find the ef fective work flow. In this paper, we propose the integrated 3-dimensional model which involves the prescribed Relationship, Transition and Communication Models. The pro posed 3-dimensional model, which we call "Object Map", gives us a support to clas sify, two types of category and easy to arrange objects in the object-map in order to progress the object-oriented system design.
* 第18回 日本経営システム学会全国研究発表大会にて口頭発表
(1997年5月11日, 愛知県中小企業センター)
** 摂南大学
