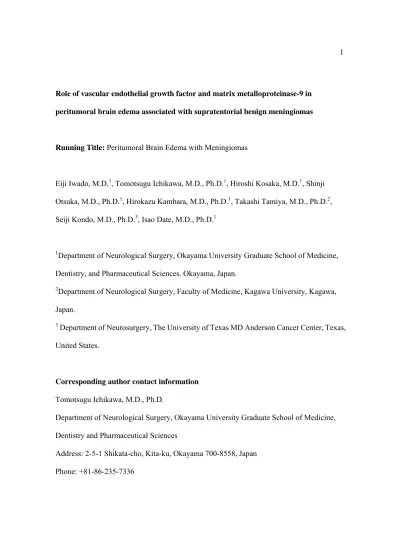

Role of vascular endothelial growth factor and matrix metalloproteinase-9 in peritumoral brain edema associated with supratentorial benign meningiomas
Running Title: Peritumoral Brain Edema with Meningiomas
Eiji Iwado, M.D.1, Tomotsugu Ichikawa, M.D., Ph.D.1, Hiroshi Kosaka, M.D.1, Shinji Otsuka, M.D., Ph.D.1, Hirokazu Kambara, M.D., Ph.D.1, Takashi Tamiya, M.D., Ph.D.2, Seiji Kondo, M.D., Ph.D.3, Isao Date, M.D., Ph.D.1
1Department of Neurological Surgery, Okayama University Graduate School of Medicine, Dentistry, and Pharmaceutical Sciences. Okayama, Japan.
2Department of Neurological Surgery, Faculty of Medicine, Kagawa University, Kagawa, Japan.
3 Department of Neurosurgery, The University of Texas MD Anderson Cancer Center, Texas, United States.
Corresponding author contact information Tomotsugu Ichikawa, M.D., Ph.D.
Department of Neurological Surgery, Okayama University Graduate School of Medicine, Dentistry and Pharmaceutical Sciences
Address: 2-5-1 Shikata-cho, Kita-ku, Okayama 700-8558, Japan Phone: +81-86-235-7336
Fax: +81-86-227-0191
E-mail: [email protected]
Abstract
Background: Accumulating evidence indicates that vascular endothelial growth factor (VEGF) and matrix metalloproteinase-9 (MMP-9) play a central role in the development of peritumoral brain edema (PTBE) associated with human brain tumors. However, the roles of these proteins, particularly of MMP-9, in PTBE associated with benign meningiomas have not been elucidated.
Objective: We investigated the association between clinical features and biological factors, such as VEGF and MMP-9, and the incidence of PTBE and edema index (EI) in 60 patients with benign meningiomas.
Methods: In this study, supratentorial lesions were examined for evaluating the extent of PTBE in the surrounding normal brain tissue. VEGF and MMP-9 expression was
immunohistochemically examined.
Results: Multivariate analysis revealed that the presence of pial blood supply (odds ratio, 12.250; P = .0096) and VEGF (odds ratio, 7.683; P = .0155), but not MMP-9 (odds ratio 1.178; P = .8113), expression are significant factors that independently predict the incidence of PTBE and influence EI. VEGF (P = .0397) and MMP-9 (P = .0057) expression correlates with the presence of pial blood supply. Moreover, tumors with high VEGF and MMP-9 expression had higher EIs than those with high expression of either (P = .030).
Conclusion: Our findings suggest indicate that MMP-9 expression was positively related to
VEGF expression and pial blood supply and promoted the occurrence of PTBE by inducing the disruption of the arachnoid membrane and formation of pial blood supply.
Keywords: matrix metalloproteinase-9, meningioma, pial blood supply, peritumoral brain edema, vascular endothelial growth factor.
Introduction
Approximately 60% human meningiomas exhibit peritumoral brain edema (PTBE), which may be responsible for clinical symptoms such as headache and vomiting, and may be related to clinical outcome.1-3 To date, various possible causes of PTBE have been reported, which includes tumor size,1-3 location,1,4 histological differentiation,3-9 vascular density,10 pial blood supply,2,3,10,11 tumor-related venous obstruction,12 sex hormone receptors,13,14 vascular endothelial growth factor (VEGF) expression,10,11,15-18 and its receptor.19 Recently, matrix metalloproteinase-2 (MMP-2) and MMP-9 expression in meningiomas has been well studied in relation to tumor invasiveness, PTBE, malignancy, and recurrence.20-23
MMP-2 and MMP-9 are gelatinases that can degrade basement membrane-type collagen.24-26 At least 23 different MMPs are found in humans. These zinc-dependent endopeptidases degrade extracellular matrix components and are regulated on at least three levels: transcription, proteolytic activation of the zymogen, and inhibition of the active enzyme. Tissue inhibitors of metalloproteinases (TIMPs) are known to be the major endogenous regulators of MMPs in tissues.24-26 MMPs have been suggested to play an important role in tumor invasion and the metastasis of systemic cancers.27, 28 In brain tumors,
particularly in malignant gliomas, MMPs have been well studied.29-32 In recent studies, higher MMP-9 expression in meningiomas has been shown to correlate with tumor
invasiveness.21 In PTBE associated with meningiomas, recent studies have shown that higher MMP-9 expression, but not MMP-2, correlates with PTBE.21,22
In recent studies, higher MMP-9 (33 von Randow AJ) or VEGF (reference 34) expression has been shown to correlate with PTBE in meningioma with higher pathological grades. However, limiting to benign pathologies, meningiomas differ in their degree of PTBE.33,34
While the expression of biological factors such as VEGF and MMP-9 has been well studied in relation to pathological grades and PTBE associated with meningiomas, how these factors, particularly MMP-9, influence PTBE in benign meningioma or other significant factors for PTBE has not been well completely elucidated. Therefore, in the present study, we analyzed the association between clinical features and biological factors in supratentorial benign meningiomas using tissues that were surgically resected from 60 patients.
Methods
Patients and Specimens
Meningioma samples (n = 60, from 60 patients) were obtained from Okayama University Hospital (Okayama, Japan). The tumors were from patients who underwent surgery between 1989 and 2004. Informed consent was obtained in all cases. All specimens were from primary tumors that were classified and graded according to the 2007 World Health Organization (WHO) classification criteria (reference 35).35 The location of tumors
was limited to the supuratentorial region and was categorized as convexity, falx, and parasagittal lesions for accurate estimation of the extent of edema and to ensure the uniformity of the surrounding tissues.
Evaluation of Neuroradiological Imaging
Before surgery, each patient’s tumor and any PTBE were assessed using magnetic resonance imaging (MRI). Tumor size was estimated from gadolinium-enhanced
T1-weighted images. PTBE was evaluated on T2-weighted images. The tumor and PTBE were approximated from axial, coronal, and sagittal images as follows: the maximal perpendicular diameters (2a and 2b) of the tumor and PTBE were measured on axial scans, and the extent in the coronal direction (2c) was measured on coronal or sagittal scans. The total volume of the tumor and PTBE were then approximated using the formula for a spheroid (V = 4/3πabc). The relationship between the tumor and PTBE volume, i.e., edema index (EI) was defined as follows: EI = (Vedema + Vtumor)/Vtumor. The formula yields a value of 1 when edema is absent. Pial-cortical arterial supply was identified by angiography in the anteroposterior and lateral views of the external and internal carotid arteries (vertebral artery) without prior knowledge of the MRI findings.
Immunohistochemical Analysis
Tumor sections (4.5 μm) were deparaffinized in xylene, rehydrated through graded alcohols, and immersed for 15 min in phosphate-buffered saline (PBS). For antigen retrieval, all sections were microwaved in 0.01 M citrate-buffered solution (pH 6.0) for 15 min.
Endogenous peroxidase was inactivated by treatment with 3% hydrogen peroxide in
methanol for 15 min. The sections were incubated in normal horse serum for 15 min to block non-specific staining. A mouse monoclonal antibody against VEGF (BD PharMingen, San Diego, CA) or MMP-9 (Daiichi Fine Chemical, Toyama, Jpn) diluted to 1:100 in DAKO Antibody Diluent (DAKO, Carpinteria, CA) was applied. Incubations were performed in a humidity chamber at 4 °C overnight. As a negative control, mouse non-immune IgG was applied as the primary antibody. After three rinses with PBS, diluted biotinylated horse anti-mouse antibody (Vector Laboratories, Burlingame, CA) was applied for 30 min.
Following three additional washes with PBS, avidin–biotin complex (Vector Laboratories) was applied for 30 min, followed by 0.06% diaminobenzidine (Sigma, St. Louis, MO) with 0.01% hydrogen peroxide for 4 min. The sections were counterstained with hematoxylin.
VEGF and MMP-9 expression was qualitatively scored as follows: 0 for no staining (nearly 0% of cells were labeled), 1+ for a trace of positive cells (less than 30% of cells were labeled), 2+ for moderately diffuse staining or sparsely intensive staining (30%–60% of cells were labeled, and less than 30% of cells were labeled with the strong intensity), and 3+ for strongly diffuse staining (60%–100% of cells were labeled).
E.I. and S.O. classified the tumors according to 3 representative fields without prior
knowledge of the patients’ clinical or radiological data. Staining of VEGF and MMP-9 was classified into two groups according to the scores. Lower 2 scores, 0 and 1+, were classified as the low-expression group and higher 2 scores, 2+ and 3+, were classified as the
high-expression group.
Statistical Analysis
Database management and statistical analysis were performed using the SAS software. Univariate and multivariate logistic analyses tested for edema using the following predictive variables: age, sex, pial blood supply, and VEGF and MMP-9 expression. The results were expressed as estimated coefficients, P values, and odds ratios (95% confidence intervals) for each variable. The tumor volume was analyzed by single linear regression analysis with EI as the dependent variable. The relationship between EI and clinical and biological variables, tumor volume, VEGF expression, and MMP-9 expression in relation to pial blood supply were evaluated by the Mann–Whitney U test. The relationship between VEGF expression and MMP-9 expression was evaluated using the Spearman rank
correlation coefficient. The relationships between EI and histology, location, and the groups divided by the combination of VEGF expression and MMP-9 expression were evaluated by the Kruskal–Wallis test. P < .05 was considered statistically significant.
Results
Patient Characteristics
Characteristics of the 60 patients included in this study are shown in Table 1. There were 16 males (26.7%) and 44 females (73.3%), with a mean age of 55.3 years (range, 22–81 years). All tumors were classified according to the WHO criteria; 14 meningothelial, 11 fibrous, 27 transitional, 2 psammomatous, 1 angiomatous, 3 microcystic, and 2 secretory meningiomas. The tumor locations were classified as supratentorial: 33 convexity, 16 parasagittal, and 11 falx.
Immunohistochemical Staining
The anti-human VEGF monoclonal antibody was immunoreactive, with evidence of cytoplasmic staining, in 48 cases (80%). Using our expression grading system, the tumor sections were classified as follows: 12 as 0, 27 as 1+, 16 as 2+, and 5 as 3+. The anti-human MMP-9 monoclonal antibody was immunoreactive, with evidence of cytoplasmic staining, in all cases. Using our grading system, the sections were classified as follows: 31 as 1+, 20 as 2+, and 9 as 3+ (Figure 1) (Table 2).
Univariate and Multivariate Logistic Regression Analyses
To evaluate the factors influencing the incidence of PTBE, univariate and multivariate logistic regression analyses were performed (Table 3). The presence of pial blood supply and high VEGF expression were independent predictors of PTBE. Tumor volume showed a tendency toward predicting the incidence of PTBE in univariate analysis, but was not a statistically significant factor in multivariate analysis. Age, sex, and high MMP-9 expression were not statistically significant (P > .05) predictors for the incidence of PTBE.
Correlation of Variables with Edema Index
We evaluated the development of PTBE using EI (Figure 2). Tumor volume was not significantly correlated with EI (P = .1094). Pial blood supply was associated with a higher EI (EI = 6.720 ± 3.120 versus EI = 2.672 ± 0.837; P = .0012). EI was significantly higher in the high-VEGF group than in the low-VEGF group (EI = 5.148 ± 1.607 versus EI = 3.683 ±
1.834; P = .0007). The high-MMP-9 group showed a tendency toward a higher EI that was not significant (EI = 5.964 ± 2.532 versus EI = 2.542 ± 0.878; P = .062). As potential factors, histology and location were also evaluated. No significant difference in VEGF and MMP-9 expression, pial blood supply, or EI was observed between histological subtypes (Table 4) (meningothelial meningiomas, EI = 6.142 ± 17.928; fibrous meningiomas, EI = 5.067 ± 8.189; transitional meningiomas, EI = 2.666 ± 6.031; psammomatous meningiomas, EI = 1.526 ± 0.744; angiomatous meningiomas, EI = 4.617; microcystic meningiomas, EI = 2.731
± 2.922; secretory meningiomas, EI = 11.332 ± 6.172; P = .3062). No significant difference was observed between locations (convexity, EI = 5.469 ± 12.841; parasagittal, EI = 2.986 ± 6.586; falx EI = 2.135 ± 2.164; P = .8349). Furthermore, location over the convexity was classified into frontal, parietal, temporal, and occipital, where the tumor mainly attached.
Between these locations, there was no significant difference (frontal, EI = 3.977 ± 11.389;
parietal, EI = 4.388 ± 7.498; temporal, EI = 3.560 ± 4.765; occipital, EI = 5.212 ± 11.079; P
= .7446).
Correlation of the Presence of Pial Blood Supply with Other Variables
Because the presence of pial blood supply was identified as a clinical factor that independently predicts the incidence of PTBE and influences the development of PTBE, we analyzed the correlations between the presence of pial blood supply and other factors (Figure 3). We observed that the presence of pial blood supply was significantly correlated with higher tumor volume (tumor volume = 38.014 ± 6.405 versus tumor volume = 16.756 ± 2.932; P = .0008), high VEGF expression (VEGF score = 1.565 ± 0.207 versus VEGF score
= 1.027 ± 0.119; P = .0397), and high MMP-9 expression (MMP-9 score = 2.000 ± 0.178 versus MMP-9 score = 1.405 ± 0.091; P = .0057). We present a representative case showing high EI in the large convexity meningioma having high VEGF and MMP-9 expression (Figure 4). A large, homogeneously enhancing tumor on gadolinium-enhanced T1-weighted images (Figure 4A) was found in 52 year-old female patients. A remarkable PTBE was seen on T2-weighted images (Figure 4B). Partial tumor staining from meningeal arteries was shown by left internal carotid angiogram (Figure 4C) and external carotid angiogram (Figure 4D). Pial blood supply from a branch of left anterior cerebral artery was also shown by left internal carotid angiogram (Figure 4C). Microscopic examination of hematoxylin and eosin staining revealed transitional meningioma (Figure 4E). Immunohistochemical staining for VEGF (figure 4F) and MMP-9 (Figure 4G) were positive. VEGF and MMP-9 score were 3+
and 3+, respectively.
Relationship between VEGF and MMP-9
We analyzed the relationship between VEGF expression and MMP-9 expression (Figure 5). MMP-9 expression showed a positive relation with VEGF expression (P = .0479) (Figure 5A). Furthermore, tumors with high VEGF and MMP-9 expression showed a higher mean EI than those with low expression of either. Significant differences were observed between each group (P = .030) (Figure 5B).
Discussion
In this study, VEGF and MMP-9 expression varied in 60 benign supratentorial
meningiomas. Multivariate analysis revealed that the presence of pial blood supply and VEGF expression were significantly correlated with the incidence of PTBE and a higher EI.
A trend towards correlation between MMP-9 and EI was found, although statistical significance was not reached. VEGF and MMP-9 expression was correlated with the
presence of pial blood supply. Moreover, the probability of PTBE and a higher EI was greater in tumors with high VEGF and MMP-9 expression than in those with low expression of either. Although various possible causes of PTBE have been reported, such as tumor size, location, and histological subtypes, we could not detect other potential factors in this study.
To address this, further studies with more samples of each group are needed.
We found that pial blood supply and high VEGF expression were significant factors that independently predicted the incidence of PTBE and significantly correlated with EI consistent with several previous studies.2,3,10,11,16-18 However, these factors could play a different role in PTBE formation associated with meningiomas when combined. Bitzer et al.
and Sindou et al. showed a correlation between pial blood supply and tumor size.2, 3336 Vascular enrichment has been reported as a potent factor for the development of PTBE.10,11,18 Furthermore, Pitolesi et al. demonstrated that VEGF expression is related to MVD and pial blood supply.11
We demonstrated that MMP-9 expression correlates with the presence of pial blood supply.
In previous studies, MMP-9 expression was higher in non-benign meningomas than in benign meningiomas and correlated with severe edema, brain invasion, and tumor recurrence.20-23 Several studies have indicated that MMP-9 expression in benign meningiomas varies irrespective of the scoring method used.20-23,3437 Meningiomas are
located in the extra-axial space and separated from the brain parenchyma by the arachnoid membrane and pia mater. Since the mechanism of development of PTBE is vasogenic, breakdown of the blood–brain barrier or direct contact of the tumor with the brain
parenchyma is essential for the development of PTBE. The presence of pial blood supply reflects the disruption of the arachnoid membrane in the brain cortex that is formed of two layers of cells interrupted by a layer of basement membrane.2 There are several possible explanations for the relationship between pial blood supply and MMP-9 expression. First, MMP-9 expressed in meningiomas could play a role in the invasion of meningioma cells into the arachnoid membrane and its disruption for the development of PTBE. The correlation between MMP-9 expression and focal invasion of benign lesions has been previously demonstrated. Mizoue et al. reported that MMP-9 expression contributed to the infiltration of the dura mater by meningioma cells.3538 Nordqvist et al. analyzed the expression of MMP- 9 in meningiomas associated with different degrees of brain invasion and edema. They
demonstrated a relation between the extent of MMP-9 expression and arachnoid disruption and brain invasion.21 Second, MMP-9 could promote angiogenesis in brain parenchyma. The presence of pial blood supply could be the result of MMP-9-activated angiogenesis that is promoted by the invasion of the extracellular matrix by microvascular endothelial cells and the increased bio-availability of VEGF.36,3739,40 Barresi et al. found that a trend towards correlation between MMP-9 and VEGF expression in 50cases of meningiomas. 23 We showed a positive correlation between VEGF expression and MMP-9 expression in
meningiomas. In some cases of our series, the presence of pial blood supply and high MMP-9 expression with some degree of VEGF expression showed a high EI even in the small tumor.
On the other hand, in the larger tumor having low VEGF and MMP-9 expression, PTBE and pial blood supply were not observed. These findings imply that tumor having some degree of VEGF and MMP-9 expression may possess a high EI, regardless of tumor size. Moreover, the presence of pial blood supply, signifying the disruption of the arachnoid membrane, could be the visible result of high MMP-9 expression. These results were consistent with our statistical analyses.
In conclusion, we analyzed VEGF and MMP-9 expression and significant factors which may contribute to PTBE in benign supratentorial meningiomas. Our findings suggest that MMP-9 expression was positively related to VEGF expression and pial blood supply and promoted the occurrence of PTBE by inducing the disruption of the arachnoid membrane and formation of pial blood supply.
Acknowledgements
This study was supported by grants-in-aid for Scientific Research from the Japanese Ministry of Education, Culture, Sports, Science, and Technology to Tomotsugu Ichikawa (No. 19591675) and Hirokazu Kambara (No. 19591676). None of the authors has any conflict of interest to declare. We thank Ms. M. Arao and Ms. T. Ujibashi for excellent technical assistance. We also thank Dawn Chalaire for editing the manuscript.
References
1. Bitzer M, Wockel L, Morgalla M et al. Peritumoural brain oedema in intracranial meningiomas: influence of tumour size, location and histology. Acta Neurochir (Wien) 1997; 139: 1136-1142.
2. Bitzer M, Wockel L, Luft AR et al. The importance of pial blood supply to the development of peritumoral brain edema in meningiomas. J Neurosurg 1997; 87:
368-373.
3. Tamiya T, Ono Y, Matsumoto K, Ohmoto T. Peritumoral brain edema in intracranial meningiomas: effects of radiological and histological factors. Neurosurgery 2001;
49: 1046-1052.
4. Lobato RD, Alday R, Gomez PA et al. Brain oedema in patients with intracranial meningioma. Correlation between clinical, radiological, and histological factors and the presence and intensity of oedema. Acta Neurochir (Wien) 1996; 138: 485-494.
5. Alvarez F, Roda JM, Romero MP, Morales C, Sarmiento MA, Blazquez MG.
Malignant and atypical meningiomas: a reappraisal of clinical, histological, and computed tomographic features. Neurosurgery 1987; 20: 688-694.
6. Constantini S, Tamir J, Gomori MJ, Shohami E. Tumor prostaglandin levels correlate with edema around supratentorial meningiomas. Neurosurgery 1993; 33: 204-210.
7. De Vries J and Wakhloo AK. Cerebral oedema associated with WHO-I, WHO-II, and WHO-III-meningiomas: correlation of clinical, computed tomographic, operative and histological findings. Acta Neurochir (Wien) 1993; 125: 34-40.
8. Maiuri F, Gangeni M, Cirillo S et al. Cerebral edema associated with meningiomas.
Surg Neurol 1987; 27: 64-68.
9. Philippon J, Foncin JF, Grob R, Srour A, Poisson M, Pertuiset BF. Cerebral edema associated with meningiomas: possible role of a secretory-excretory phenomenon.
Neurosurgery 1984; 14: 295-301.
10. Yoshioka H, Hama S, Taniguchi E, Sugiyama K, Arita K, Kurisu K. Peritumoral brain edema associated with meningioma: influence of vascular endothelial growth factor expression and vascular blood supply. Cancer 1999; 85: 936-944.
11. Pistolesi S, Fontanini G, Camacci T, De leso K, Boldrini L, Lupi G, Padolecchia R, Pingitore R, Parenti G. Meningioma-associated brain oedema: the role of angiogenic factors and pial blood supply. J Neurooncol 2002; 60: 159-164.
12. Bitzer M, Topka H, Morgalla M, Frise S, Wockel L, Voigt K. Tumor-related venous obstruction and development of peritumoral brain edema in meningiomas.
Neurosurgery 1998; 42: 730-737.
13. Benzel EC and Gelder FB. Correlation between sex hormone binding and peritumoral edema in intracranial meningiomas. Neurosurgery 1988; 23: 169-174.
14. Maiuri F, Montagnani S, Ianconetta G, Gallicchio B, Bernardo A, Signorelli F.
Correlation between sex hormone receptors and peritumoral edema in intracranial meningiomas. J Neurosurg Sci 1994; 38: 29-33.
15. Kalkanis SN, Carroll RS, Zhang J, Zamani AA, Black PM. Correlation of vascular endothelial growth factor messenger RNA expression with peritumoral vasogenic cerebral edema in meningiomas. J Neurosurg 1996; 85: 1095-1101.
16. Goldman CK, Bharara S, Palmer CA et al. Brain edema in meningiomas is associated
with increased vascular endothelial growth factor expression. Neurosurgery 1997;
40: 1269-1277.
17. Provias J, Claffey K, delAguila L, Lau N, Feldkamp M, Guha A. Meningiomas: role of vascular endothelial growth factor/vascular permeability factor in angiogenesis and peritumoral edema. Neurosurgery 1997; 40: 1016-1026.
18. Bitzer M, Opitz H, Popp J et al. Angiogenesis and brain oedema in intracranial meningiomas: influence of vascular endothelial growth factor. Acta Neurochir (Wien) 1998; 140: 333-340.
19. Otsuka S, Tamiya T, Ono Y et al. The relationship between peritumoral brain edema and the expression of vascular endothelial growth factor and its receptors in
intracranial meningiomas. J Neurooncol 2004; 70: 349-357.
20. Okada M, Miyake K, Matsumoto Y, Kawai N, Kunishio K, Nagao S. Matrix metalloproteinase-2 and matrix metalloproteinase-9 expressions correlate with the recurrence of intracranial meningiomas. J Neurooncol 2004; 66: 29-37.
21. Nordqvist AC, Smurawa H, and Mathiesen T. Expression of matrix
metalloproteinases 2 and 9 in meningiomas associated with different degrees of brain invasiveness and edema. J Neurosurg 2001; 95: 839-844.
22. Paek SH, Kim CY, Kim YY et al. Correlation of clinical and biological parameters with peritumoral edema in meningioma. J Neurooncol 2002; 60: 235-245.
23. Barresi V, Vitareli E, Tuccari G, Barresi G. MMP-9 expression in meningiomas: a prognostic marker for recurrence risk? J Neurooncol 2011; 102: 189-196.
24. Nagase H and Woessner JF Jr. Matrix metalloproteinases. J Biol Chem 1999;
274: 21491-21494.
25. Visse R and Nagase H. Matrix metalloproteinases and tissue inhibitors of metalloproteinases: structure, function, and biochemistry. Circ Res 2003; 92:
827-839.
26. Mott JD and Werb Z. Regulation of matrix biology by matrix metalloproteinases.
Curr Opin Cell Biol 2004; 16: 558-564.
27. Westermarck J and Kahari VM. Regulation of matrix metalloproteinase expression in tumor invasion. Faseb J 1999; 13: 781-792.
28. Stamenkovic I. Matrix metalloproteinases in tumor invasion and metastasis. Semin Cancer Biol 2000; 10: 415-433.
29. Rao JS, Steck PA, Mohanam S, Stetler-Stevenson WG, Liotta LA, Sawaya R.
Elevated levels of M(r) 92,000 type IV collagenase in human brain tumors. Cancer Res 1993; 53: 2208-2211.
30. Nakagawa T, Kubota T, Kabuto M et al. Production of matrix metalloproteinases and tissue inhibitor of metalloproteinases-1 by human brain tumors. J Neurosurg 1994;
81: 69-77.
31. Yong VW, Krekoski CA, Forsyth PA, Bell R, Edwards DR. Matrix
metalloproteinases and diseases of the CNS. Trends Neurosci 1998; 21: 75-80.
32. Sawaya RE, Yamamoto M, Gokaslan ZL et al. Expression and localization of 72 kDa type IV collagenase (MMP-2) in human malignant gliomas in vivo. Clin Exp
Metastasis 1996; 14: 35-42.
33. von Randow AJ, Schindler S, Tews DS. Expression of extracellular matrix-degrading
proteins in classic, atypical, and anaplastic meningiomas. Pathol Res Pract 2006;
202:365-372.
34. Lamszus K, Lengler U, Schmidt NO, Stavrou D, Ergün S, Westphal M. Vascular endothelial growth factor, hepatocyte growth factor/scatter factor, basic fibroblast growth factor, and placenta growth factor in human meningiomas and their relation to angiogenesis and malignancy. Neurosurgery 2000; 46: 938-947
35. Louis DN, Ohgaki H, Wiestler OD, Cavenee WK (eds). WHO Classification of tumours of the central nervous system. Lyon: IARC, 2007.
3336. Sindou MP and Alaywan M. Role of pia mater vascularization of the tumour in the surgical outcome of intracranial meningiomas. Acta Neurochir (Wien) 1994; 130:
90-93.
3437. Das A, Tan WL, Smith DR. Expression of extracellular matrix markers in benign meningiomas. Neuropathology 2003; 23: 275-281.
3538. Mizoue T, Kawamoto H, Arita K, Tominaga A, Kurisu K. Secretion of matrix metalloproteinase-9 and tissue inhibitor of metalloproteinase-1 by meningiomas detected by cell immunoblot analysis. Acta Neurochir (Wien) 1999; 141: 481-486.
3639. Bergers G, Brekken R, McMahon G et al. Matrix metalloproteinase-9 triggers the angiogenic switch during carcinogenesis. Nat Cell Biol 2000; 2: 737-744.
3740. Chandrasekar N, Jasti S, Alfred-Yung WK et al. Modulation of endothelial cell morphogenesis in vitro by MMP-9 during glial-endothelial cell interactions. Clin Exp Metastasis 2000; 18: 337-342.
Figure Legends Figure 1.
Representative immunostainings of VEGF (upper column) and MMP-9 (lower column).
Each microscopic pictures show negative (-), weakly positive (+), moderately positive (2+), and strongly positive (3+) immunostaining of each proteins (200 ×magnification). Scale bar
= 100μm.
Figure 2.
The relationships between edema index (EI) and tumor volume (A), pial blood supply (B), VEGF expression (C), and MMP-9 expression (D). Both pial blood supply and high VEGF expression were significantly related to EI.
Figure 3.
The relationships between pial blood supply and tumor volume (A), VEGF score (B), and MMP-9 score (C). These factors significantly related to the existence of pial blood supply.
Figure 4.
A representative case of a meningioma having high tumor volume and marked edema. The gadolinium-enhanced T1-weighted image (A) and T2-weighted image (B) demonstrate a strong enhanced convexity meningioma with remarkable peritumoral brain edema. Lateral view of internal carotid (C) and external carotid (D) angiogram showed meningeal arterial supply to the center of convexity meningioma (arrow), and pial blood supply from anterior
cerebral artery to the rim of the tumor (arrowhead). Microscopic examination of hematoxylin and eosin staining revealed transitional meningioma (E). VEGF (F) and MMP-9 (G)
expression was high in this tumor. Scale bar = 100μm.
Figure 5.
The relationship between VEGF expression and MMP-9 expression (A) and the relationship between edema index (EI) and the groups divided by the combination of VEGF expression and MMP-9 expression (B). The significant correlation between VEGF expression and MMP-9 expression was found. Moreover, the coexpression of VEGF and MMP-9 was positively related to EI.
Distribution Age
Mean±SD 55.3±13.7 Range 22-81
Sex Male 16 (26.7%) Female 44 (73.3%) Location Convexity 33 (55.0%) Falx 11 (18.3%) Parasagittal 16 (26.7%) Histology Meningothelial 14 (23.3%) Fibrous 11 (18.3%) Transitional 27 (45.0%) Psamommatous 2 (3.3%) Angiomatous 1 (1.7%) Microcystic 3 (5.0%) Secretory 2 (3.3%)
Tumor volume
Mean±SD 24.9±25.6 Range 1.1-128.9
Edema volume
Mean±SD 26.2±41.8 Range 0-208.9
Pial blood supply
Negative 37 (61.7%) Positive 23 (38.3%) Tumor and edema volume (cm3)
Table 2 Summary of immunoreactivity for 60 samples of benign meningiomas
Low expression high expression 0 1+ 2+ 3+
VEGF 12 27 16 5 MMP-9 0 31 20 9
Table 3
Univariate and multivariate analysis of the factors causing peritumoral brain edema associated with meningiomas
Univariate Multivariate
Factors ORa 95%CIb P ORa 95%CIb P Age (10 years) 1.081 0.751-1.557 0.6759 1.304 0.802-2.121 0.2843 Sex (female) 0.789 0.244-2.556 0.6933 1.605 0.355-7.264 0.5387 Tumor volume
(10cm3)
1.291 0.989-1.685 0.0606 1.039 0.734-1.452 0.8228
Pial blood supplyc 9.778 2.461-38.855 0.0012 12.250 1.839-81.603 0.0096 VEGFd 7.765 1.960-30.757 0.0035 7.683 1.474-40.030 0.0155 MMP-9e 2.370 0.824-6.815 0.1092 1.178 0.307-4.526 0.8113
aOdds ratios.- b95% confidence interval.-cpositive vs. negative.-dHigh vs. low.- eHigh vs. low.
Table 4
n=60 +/－
Meningothelial 14 1.000±0.679 1.786±0.802 7/7 6.142±17.928 Fibrous 11 1.091±1.136 1.636±0.809 2/9 5.067±8.189 Transitional 27 1.333±0.877 1.593±0.747 8/19 2.666±6.031 Psamommatous 2 1.000±0.000 2.000±0.000 1/1 1.526±0.744
Angiomatous 1 2.000 1.000 1/0 4.617
Microcystic 3 1.333±1.155 1.333±0.577 3/0 2.731±2.922 Secretory 2 2.000±0.000 1.500±0.707 1/1 11.332±6.172
P 0.5106 0.8165 0.1223 0.3062
Mean values are expressed as mean ± SD.
Kruskal–Wallis test was used.
MMP-9 VEGF
(-) (+) (2+) (3+)
100μm
EI EI
low
EI
positive -10
0 10 20 30 40 50 60 70
EI
-20 0 20 40 60 80 100 120 140
Tumor volume Y = 6.262 - .083 * X; R^2 = .044
high negative
low high
pial blood supply
VEGF MMP-9
A
D B
C
p=0.1094
p=0.0012
p=0.062 p=0.0007
0 2 4 6 8 10 12
0 1 2 3 4 5 6 7
0 1 2 3 4 5 6 7 8 9
Tumorvolume
negative positive
VEGF score MMP-9 score
negative negative
positive positive
pial blood supply
pial blood supply pial blood supply
p=0.0008
p=0.0397 p=0.0057
0 5 10 15 20 25 30 35 40 45 50
0 .2 .4 .6 .8 1 1.2 1.4 1.6 1.8 2
A
B C
0 .25
.5 .75 1 1.25
1.5 1.75 2 2.25
C D
F
MMP-9 VEGF
G
100μm
E
HE
VEGFscore
MMP-9 score p=0.0479
EI
both low either low both high p=0.030
VEGF and MMP-9 expressions 0
. 25 . 5 . 75 1 1. 25 1. 5 1. 75 2 2. 25 2. 5
1 2 3
0 1 2 3 4 5 6 7 8 9 10
