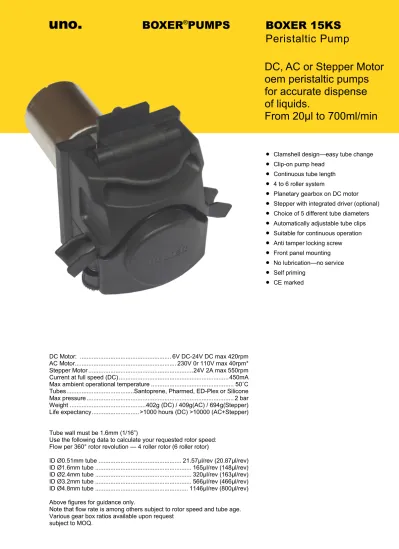

uno.
BOXER
®PUMPS
DC, AC or Stepper Motor
oem peristaltic pumps
for accurate dispense
of liquids.
From 20µl to 700ml/min
Clamshell design—easy tube change
Clip-on pump head
Continuous tube length
4 to 6 roller system
Planetary gearbox on DC motor
Stepper with integrated driver (optional)
Choice of 5 different tube diameters
Automatically adjustable tube clips
Suitable for continuous operation
Anti tamper locking screw
Front panel mounting
No lubrication—no service
Self priming
CE markedDC Motor: ... 6V DC-24V DC max 420rpm AC Motor ... 230V 0r 110V max 40rpm* Stepper Motor ... 24V 2A max 550rpm Current at full speed (DC) ... 450mA Max ambient operational temperature ... 50˚C Tubes ...Santoprene, Pharmed, ED-Plex or Silicone Max pressure ... 2 bar Weight ... 402g (DC) / 409g(AC) / 694g(Stepper) Life expectancy ... >1000 hours (DC) >10000 (AC+Stepper) Tube wall must be 1.6mm (1/16”)
Use the following data to calculate your requested rotor speed: Flow per 360° rotor revolution — 4 roller rotor (6 roller rotor)
ID Ø0.51mm tube ... 21.57µl/rev (20.87µl/rev) ID Ø1.6mm tube ... 165µl/rev (148µl/rev) ID Ø2.4mm tube ... 320µl/rev (163µl/rev) ID Ø3.2mm tube ... 566µl/rev (466µl/rev) ID Ø4.8mm tube ... 1146µl/rev (800µl/rev) Above figures for guidance only.
Note that flow rate is among others subject to rotor speed and tube age. Various gear box ratios available upon request
BOXER 15KS
Uno International Ltd.
20 Belsize Avenue
London NW3 4AU
Tel: +44 (0)20 7794 4080
Fax:+44 (0)20 7431 1426
Email: [email protected]
www.boxerpumps.com
BOXER
®PUMPS
uno.
Boxer 15000 DC motor 6-24V operation
DC
From 6V to 24V DC
Selection of planetary gearboxes
Up to 420rpm
Front through panel mounting
Bidirectional 15KS DC motor Ordering information: DC Boxer 15KS 298 rpm @ 12V DC 4R ··· 15011.000 Boxer 15KS 420 rpm @ 12V DC 4R ··· 15012.100 Boxer 15KS 298 rpm @ 24V DC 4R ··· 15013.100 Boxer 15KS 420 rpm @ 24V DC 4R ··· 15014.100Uno International Ltd.
20 Belsize Avenue
London NW3 4AU
Tel: +44 (0)20 7794 4080
Fax:+44 (0)20 7431 1426
Email: [email protected]
www.boxerpumps.com
BOXER
®PUMPS
uno.
Boxer 15100 with DC motor for slow operation
15KS DC with Buhler motor Shown with open clamp
DC Bühler Motor Option
From 6V to 24V DC
Selection of spur gear boxes
5rpm - 70rpm
Front through panel mounting
Bidirectional
Clip On bayonet fit head designOrdering information –Buhler Motor version:
12V motor versions can be operated at 24V and vice versa. Rotor speed proportional to voltage.
Bühler DC
Boxer 15KS 35 rpm @ 12V DC 4R ··· 15111.100 Boxer 15KS 70 rpm @ 12V DC 3R ··· 15112.100 Boxer 15KS 35rpm @ 24V DC 3R ··· 15113.100 Boxer 15KS 70rpm @ 24V DC 3R ··· 15114.100 Other options such as 6V rated motor or 6rpm versions are available too.
Uno International Ltd.
20 Belsize Avenue
London NW3 4AU
Tel: +44 (0)20 7794 4080
Fax:+44 (0)20 7431 1426
Email: [email protected]
www.boxerpumps.com
BOXER
®PUMPS
uno.
Boxer 15600 with stepper motor
Optional integrated stepper controller B with control terminals for:
Stop
High and low speed
Change of direction
Remote speed control using 5-10K pot 15KS DC with Stepper motorHigh torque Hybrid stepping motor specification
General Specification
Step Angle (º) 1.8º
Max speed (with IDØ1.6mm tube) 1000rpm
Temp rise (ºC) 80 Max
Ambient Temp (ºC) -20 to +50
Number of phases 2
Insulation Resistance (MΩ) 100 min (500VDC)
Insulation Class B
Rated Voltage (V) 4.2
Rated Current (A) 0.86
Resistance per phase (±10%Ω) 4.94(25ºC) Inductance per phase (±20%mH) 11.45
Ordering information: Stepper
Boxer 15KS with NEMA 17 motor 4R ··· 15601.100 Boxer 15KS with NEMA 17 motor 4R + integrated stepper driver with speed control A ··· 15652.100 Boxer 15KS with NEMA 17 motor 4R + integrated stepper driver with speed control B ··· 15652.101
BOXER
®PUMPS
uno.
Uno International Ltd.
20 Belsize Avenue
London NW3 4AU
Tel: +44 (0)20 7794 4080
Fax:+44 (0)20 7431 1426
Email: [email protected]
www.boxerpumps.com
AC
230V/110V Sync motor
Selection of ovoid gearboxes
Up to 40rpm
Unidirectional
Click-On bayonet fit head designOrdering information: AC
Boxer 15KS 10 rpm Sync Gearmotor 4R ··· 15206.100 Boxer 15KS 15 rpm Sync Gearmotor 4R ··· 15204.100 Boxer 15KS 20 rpm Sync Gearmotor 4R ··· 15201.100 Boxer 15KS 30 rpm Sync Gearmotor 4R ··· 15202.100 Boxer 15KS 40 rpm Sync Gearmotor 4R ··· 15203.100
Boxer 15200 AC motor 110V/230V operation
Uno International Ltd.
20 Belsize Avenue
London NW3 4AU
Tel: +44 (0)20 7794 4080
Fax:+44 (0)20 7431 1426
Email: [email protected]
www.boxerpumps.com
BOXER
®PUMPS
uno.
Ordering information:Spare rotor—4 rollers* ··· 15000.102 Spare rotor—6 rollers* ··· 15000.103 Pharmed tube IDØ0.5.X 150mm length··· 15000.001 Norprene tube IDØ1.6.0 X 150mm length ··· 15000.012 Norprene tube IDØ3.2 X150mm length ··· 15000.013 Norprene tube IDØ4.8X150mm length ··· 15000.014 Pharmed tube IDØ0.5.X1 metre length ··· 15000.018 Norprene tube IDØ1.6.0 X1 metre length ··· 15000.015 Norprene tube IDØ3.2 X1 metre length ··· 15000.016 Norprene tube IDØ4.8X1 metre length ··· 15000.017 Silicone tube IDØ1.6X1 metre length ··· 15000.201 Silicone tube IDØ2.4X1 metre length ··· 15000.202 Silicone tube IDØ3.2X1 metre length ··· 15000.203 Silicone tube IDØ4.8X1 metre length ··· 15000.204 *Operation with IDØ0.51 tube require special rotors
