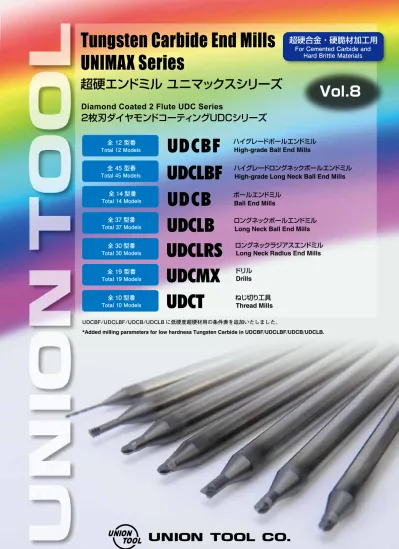

(1)

UDCLB

Diamond Coated 2 Flute UDC Series

2枚刃ダイヤモンドコーティングUDCシリーズ

UDCB

Ball End Mills

ロングネックボールエンドミル

ボールエンドミル

Long Neck Ball End Mills

UDCLBF

UDCBF

High-grade Ball End Mills

ハイグレードロングネックボールエンドミル

ハイグレードボールエンドミル

High-grade Long Neck Ball End Mills

UDCLRS

ロングネックラジアスエンドミル

Long Neck Radius End Mills

UDCMX

ドリル

Drills

UDCT

ねじ切り工具

Thread Mills

超硬エンドミル ユニマックスシリーズ

Tungsten Carbide End Mills

UNIMAX Series

Vol.8

全 12 型番

Total 12 Models

全 45 型番

Total 45 Models

全 14 型番

Total 14 Models

全 37 型番

Total 37 Models

全 30 型番

Total 30 Models

全 19 型番

Total 19 Models

全 10 型番

UDCBF/UDCLBF/UDCB/UDCLB に低硬度超硬材用の条件表を追加いたしました。

*Added milling parameters for low hardness Tungsten Carbide in UDCBF/UDCLBF/UDCB/UDCLB.

Total 10 Models

超硬合金・硬脆材加工用

For Cemented Carbide and

(2)

特長

Features

高性能特殊ダイヤモンド皮膜を採用!

抜群の硬さと靭性、 そして密着力!

Revolutionary Diamond coating offers excellent cutting performance

新開発ダイヤモンドコート 超硬合金を切削できるエンドミル

“Cutting” Cemented Carbide is achieved using the latest Diamond coating - UDC

最強のダイヤモンドコーティング!

UDC コート!

A Strong and Powerful Diamond Coating - UDC!!

放電加工と

EDM and UDCB Direct Milling Comparison

UDCB による切削加工の比較

研削ではなく、 切削が出来ます

Direct Milling of Cemented Carbide - No Grinding!

超硬合金を切削した場合、 切りくずは粉状をイメージしますが ・ ・ ・

The normal expectation when milling Cemented Carbide would be a powdered swarf….

UDCB で深切込みをした場合、 超硬合金でも鋼材と同様な扇形の切りくずが排出されます!

By using a deep cut into the Cemented Carbide, UDCB creates a “fan shaped” chip, just like cutting steel!

(a) 切りくず表面 (カールした内側)

(b) 切りくず裏面 (すくい面側)

UDCB R0.5 ボールエンドミル

UDCB R0.5 Ball End Mill

回転速度

Spindle Speed

送り速度

Feed Rate

クーラント

Coolant

30,000 min

-1



300 mm/min

0.1 mm

エアブロー

Air Blow

扇形の切りくずが排出!

“Fan-shaped” chip created

被削材

Work Material

使用工具

Tool

超硬合金

Cemented Carbide

VM-40 (90HRA)

軸方向の切込み深さ

Axial Depth

(a) Inside view of a curled chip (surface side)

(b) Outside view (tool / rake side)

UDCB R3 ボールエンドミル

超硬合金 深彫り形状 テーパ円ポケット形状

UDCB R3 Ball End Mill

Deep tapered circular pocket milling on Cemented Carbide

【モデルケース】 R3 の加工事例 (深彫り形状) を想定した型製作の場合

Case Study】 Simulation of deep pocket milling with UDCB R3

加工後エンドミル

After milling

VM-40を1本で1.4cc加工!

80,000

70,000

60,000

50,000

40,000

30,000

20,000

10,000

0

加工コスト(¥)

Machining Cost

加工コストMachining Cost

加工時間

(h)

Cycle Time

加工時間 Cycle Time

6

5

4

3

2

1

0

放電加工

EDM

Direct Milling

直彫り加工

One tool-Milling VM-40-removed

1.4cc of material!

UDCB 使用のメリット

Advantages

★加工時間

80

短縮

★加工コスト

60

削減

★放電変質層がない(磨き加工時間が短縮できる)

★寸法精度が向上

・80% cycle time reduction

・60% machining cost reduction

・No substrate damage

- Reduces polishing time - unlike EDM

・Excellent accuracy of the finished part

加工時間 80%短縮 加工コスト 60%削減

Reductions with time and cost savings: 80% cycle time and 60% machining cost reduction

【放電加工

EDM

数量/時間 Qty/h 合計 Total 銅電極作成 Making Copper Electrode 工具 Tool 材料 Material マシン Machine 人工数 Operator マシン Machine 人工数 Operator 放電加工 EDM 3 1 2 2 3 3 単価(\) Unit Price 合計(\) Total 3,000 2,000 5,000 8,000 5,000 8,000 9,000 2,000 10,000 16,000 15,000 24,000 76,000 2 3 5 加工時間(h) Cycle Time

【切削加工

Direct Milling

数量/時間 Qty/h 合計 Total MC加工 Milling Carbide 工具Tool UDCB) マシン Machine 人工数 Operator 1 1 1 単価(\) Unit Price 合計(\) Total 17,500 5,000 8,000 17,500 5,000 8,000 30,500 1 1 加工時間(h) Cycle Time 使用工具 Tool 被削材 Work Material 回転速度Spindle Speed 送り速度 Feed Rate 軸方向の切込み深さ Axial Depth 半径方向の切込み深さ Radial Depth クーラント Coolant 加工時間 Cycle Time

除去体積 Material Removal Amount

UDCB 2060-0420 (R3x4.2)

超硬合金Cemented Carbide VM-40 (90HRA) 20,000 min-1 200 mm/min 0.2 mm 0.4 mm エアブロー Air Blow 52 min 1,400 mm3 (1.4 cc)  26.9 mm3/min

1

2

3

UDCB 2010-0700 (R0.5×0.7)

VM-40 (90HRA)

VM-40 (90HRA)

Work Sample

Work Size

切りくずサイズ

Chip size

UDCB の切りくず排出

UDCB chip evacuation

UNION TOOL's Diamond film that coated using the hot filament

CVD method is developed to improve hardness and durability,

with outstanding adhesion to the cutting tool. Using fine particle

composition control, the UDC coating has dramatically improved

hardness and durability.

ユニオンツールのダイヤモンド皮膜は、 熱CVD法により

成膜され、 高硬度で非常に高い密着力と耐摩耗性を

有します。 さらに、 皮膜の微細組織を制御することで

硬度と靱性を飛躍的に高めた特殊ダイヤモンド皮膜を

新規開発し、 更なる耐摩耗性の向上を実現しました。

Features of special high-performance Diamond film!

Sandblasting tests the film adhesion and wear resistance

UNION TOOL

Competitor The film is sandblasted and its resistance to peeling measured by time

UDC

Tool Life (DIA COAT equals 100%)

Coating Patented in Japan

Special high-performance Diamond film.

A new Diamond coating developed to improve hardness and durability, with outstanding adhesion to the cutting tool.

UDCB

深彫り加工動画

Deep Milling Video

寿命( DIA COAT 100 とした場合) DIA COAT

a

p

a

e

a

p

(3)

特長

Features

高性能特殊ダイヤモンド皮膜を採用!

抜群の硬さと靭性、 そして密着力!

Revolutionary Diamond coating offers excellent cutting performance

新開発ダイヤモンドコート 超硬合金を切削できるエンドミル

“Cutting” Cemented Carbide is achieved using the latest Diamond coating - UDC

最強のダイヤモンドコーティング!

UDC コート!

A Strong and Powerful Diamond Coating - UDC!!

放電加工と

EDM and UDCB Direct Milling Comparison

UDCB による切削加工の比較

研削ではなく、 切削が出来ます

Direct Milling of Cemented Carbide - No Grinding!

超硬合金を切削した場合、 切りくずは粉状をイメージしますが ・ ・ ・

The normal expectation when milling Cemented Carbide would be a powdered swarf….

UDCB で深切込みをした場合、 超硬合金でも鋼材と同様な扇形の切りくずが排出されます!

By using a deep cut into the Cemented Carbide, UDCB creates a “fan shaped” chip, just like cutting steel!

(a) 切りくず表面 (カールした内側)

(b) 切りくず裏面 (すくい面側)

UDCB R0.5 ボールエンドミル

UDCB R0.5 Ball End Mill

回転速度

Spindle Speed

送り速度

Feed Rate

クーラント

Coolant

30,000 min

-1



300 mm/min

0.1 mm

エアブロー

Air Blow

扇形の切りくずが排出!

“Fan-shaped” chip created

被削材

Work Material

使用工具

Tool

超硬合金

Cemented Carbide

VM-40 (90HRA)

軸方向の切込み深さ

Axial Depth

(a) Inside view of a curled chip (surface side)

(b) Outside view (tool / rake side)

UDCB R3 ボールエンドミル

超硬合金 深彫り形状 テーパ円ポケット形状

UDCB R3 Ball End Mill

Deep tapered circular pocket milling on Cemented Carbide

【モデルケース】 R3 の加工事例 (深彫り形状) を想定した型製作の場合

Case Study】 Simulation of deep pocket milling with UDCB R3

加工後エンドミル

After milling

VM-40を1本で1.4cc加工!

80,000

70,000

60,000

50,000

40,000

30,000

20,000

10,000

0

加工コスト(¥)

Machining Cost

加工コストMachining Cost

加工時間

(h)

Cycle Time

加工時間 Cycle Time

6

5

4

3

2

1

0

放電加工

EDM

Direct Milling

直彫り加工

One tool-Milling VM-40-removed

1.4cc of material!

UDCB 使用のメリット

Advantages

★加工時間

80

短縮

★加工コスト

60

削減

★放電変質層がない(磨き加工時間が短縮できる)

★寸法精度が向上

・80% cycle time reduction

・60% machining cost reduction

・No substrate damage

- Reduces polishing time - unlike EDM

・Excellent accuracy of the finished part

加工時間 80%短縮 加工コスト 60%削減

Reductions with time and cost savings: 80% cycle time and 60% machining cost reduction

【放電加工

EDM

数量/時間 Qty/h 合計 Total 銅電極作成 Making Copper Electrode 工具 Tool 材料 Material マシン Machine 人工数 Operator マシン Machine 人工数 Operator 放電加工 EDM 3 1 2 2 3 3 単価(\) Unit Price 合計(\) Total 3,000 2,000 5,000 8,000 5,000 8,000 9,000 2,000 10,000 16,000 15,000 24,000 76,000 2 3 5 加工時間(h) Cycle Time

【切削加工

Direct Milling

数量/時間 Qty/h 合計 Total MC加工 Milling Carbide 工具Tool UDCB) マシン Machine 人工数 Operator 1 1 1 単価(\) Unit Price 合計(\) Total 17,500 5,000 8,000 17,500 5,000 8,000 30,500 1 1 加工時間(h) Cycle Time 使用工具 Tool 被削材 Work Material 回転速度Spindle Speed 送り速度 Feed Rate 軸方向の切込み深さ Axial Depth 半径方向の切込み深さ Radial Depth クーラント Coolant 加工時間 Cycle Time

除去体積 Material Removal Amount

UDCB 2060-0420 (R3x4.2)

超硬合金Cemented Carbide VM-40 (90HRA) 20,000 min-1 200 mm/min 0.2 mm 0.4 mm エアブロー Air Blow 52 min 1,400 mm3 (1.4 cc)  26.9 mm3/min

1

2

3

UDCB 2010-0700 (R0.5×0.7)

VM-40 (90HRA)

VM-40 (90HRA)

Work Sample

Work Size

切りくずサイズ

Chip size

UDCB の切りくず排出

UDCB chip evacuation

UNION TOOL's Diamond film that coated using the hot filament

CVD method is developed to improve hardness and durability,

with outstanding adhesion to the cutting tool. Using fine particle

composition control, the UDC coating has dramatically improved

hardness and durability.

ユニオンツールのダイヤモンド皮膜は、 熱CVD法により

成膜され、 高硬度で非常に高い密着力と耐摩耗性を

有します。 さらに、 皮膜の微細組織を制御することで

硬度と靱性を飛躍的に高めた特殊ダイヤモンド皮膜を

新規開発し、 更なる耐摩耗性の向上を実現しました。

Features of special high-performance Diamond film!

Sandblasting tests the film adhesion and wear resistance

UNION TOOL

Competitor The film is sandblasted and its resistance to peeling measured by time

UDC

Tool Life (DIA COAT equals 100%)

Coating Patented in Japan

Special high-performance Diamond film.

A new Diamond coating developed to improve hardness and durability, with outstanding adhesion to the cutting tool.

UDCB

深彫り加工動画

Deep Milling Video

寿命( DIA COAT 100 とした場合) DIA COAT

a

p

a

e

a

p

(4)

回転速度Spindle Speed 送り速度 Feed Rate

軸方向の切込み深さ Axial Depth クーラント Coolant

被削材 Work Material

使用工具 Tool UDCB 2010-0070 (R0.5×0.7)UDCBF 2010-0070 (R0.5×0.7) 超硬合金Cemented Carbide VM-40 (90HRA) 30,000 min-1

300 mm/min 0.1 mm

エアブロー (ノズル)Air Blow (Nozzle)

特殊処理で

シャープな切れ刃

Sharp cutting edge

with special

treatment

先端の溝形状

Chip pocket designed

on tool tip

選定基準

How to Choose

UDC

超硬合金加工の初期費用を抑えたい

Initial Cost Saving

超硬合金を仕上げ面・工具寿命重視で切削したい

Better Surface Finish / Longer Tool Life

UDCB / UDCLB

UDCBF / UDCLBF

VM-40 (90HRA)

切れ刃への特殊処理により切削抵抗を大幅に軽減!

Special treatment on cutting edge reduces cutting resistance!

超硬合金 切削抵抗

UDCBF R0.5×0.7 ボールエンドミル

Cemented Carbide Cutting Resistance Comparison using UDCBF R0.5x0.7 Ball End Mill

①新開発 UDC

ダイヤモンドコート

New UDC

Diamond Coating

②シャープな

切れ刃

Sharp cutting

edge

③先端の溝形状

Chip pocket

designed on

tool tip

F(Fine) とは

①仕上げ面の段差の発生を改善

②コバ欠けの抑制



③加工除去量の拡大

"F (Fine)" Series offers

①Seamless surface finish

②Minimized edge chipping

③More material removal amount

F

F

X 方向 Y 方向 Z 方向

"F (Fine)" Series Advantages

X Direction Y Direction Z Direction

超硬合金 φ20 テーパ 15°形状  UDCBF R0.5×0.7 ボールエンドミル

Cemented Carbide

φ

20 15° Taper milled with UDCBF R0.5x0.7 Ball End Mill

1

2

3

UDCB

UDCBF

UDCB

UDCBF

回転速度Spindle Speed 送り速度 Feed Rate 軸方向の切込み深さ Axial Depth 半径方向の切込み深さ Radial Depth クーラント Coolant 加工時間 Cycle Time 30,000 min-1 300 mm/min 0.05 mm 0.02 mm

エアブロー (ノズル) Air Blow (Nozzle) 55 min 5 second 被削材 Work Material 30,000 min-1 300 mm/min 0.05 mm 0.25 mm

エアブロー (ノズル) Air Blow (Nozzle) 被削材 Work Material 使用工具 Tool UDCB 2010-0070 (R0.5×0.7) UDCBF 2010-0070 (R0.5×0.7) UDCLB 2010-0250 (R0.5×2.5×0.7) UDCLBF 2010-0250 (R0.5×2.5×0.7) UDCLB 2010-0400 (R0.5×4×0.7) UDCLBF 2010-0400 (R0.5×4×0.7) 回転速度 Spindle Speed 送り速度 Feed Rate 軸方向の切込み深さ Axial Depth 半径方向の切込み深さ Radial Depth クーラント Coolant 超硬合金Cemented Carbide VM-40 (90HRA) 使用工具 Tool UDCB 2010-0070 (R0.5×0.7) UDCBF 2010-0070 (R0.5×0.7) 超硬合金 Cemented Carbide VF-10 (93HRA) 回転速度Spindle Speed 送り速度 Feed Rate 軸方向の切込み深さ Axial Depth 半径方向の切込み深さ Radial Depth クーラント Coolant 30,000 min-1 300 mm/min 0.02 mm 0.05 mm

エアブロー (ノズル)Air Blow (Nozzle) 被削材 Work Material

使用工具 Tool UDCB 2010-0070 (R0.5×0.7)UDCBF 2010-0070 (R0.5×0.7)

超硬合金Cemented Carbide VM-40 (90HRA)

除去体積

Material Removal Amount

mm

3

全刃長

All Flute Effective Length有効長 2.5mm Effective Length有効長 4.0mm

VF-10 (93HRA)

超硬合金 被削材のコバ欠け比較 UDCBF R0.5×0.7 ボールエンドミル

Cemented Carbide Comparison of Edge Chipping using UDCBF R0.5x0.7 Ball End Mill

超硬合金 荒加工における

UDCBF ・ UDCLBF の除去体積比較

Cemented Carbide Material Removal Amount Comparison on Roughing using UDCBF & UDCLBF

VM-40 (90HRA)

VM-40 (90HRA)

被削材のコバ欠け

Edge chipping on work material

上面

Surface

100μm

側面

Side

100μm

上面

Surface

100μm

側面

Side

100μm

事例 ①

Milling Examples

UDCBF / UDCLBF

仕上げ面の段差を改善

Seamless surface finish

コバ欠けの抑制

Minimized edge chipping

加工除去量の拡大

More material removal amount

15μm

-15μm Form accuracy形状精度 Form accuracy形状精度

段差 Gap 加工方向 Milling direction 加工方向 Milling direction 15μm -15μm UDCB : 切れ刃のコーティングが損傷し、 加工面に段差が発生 UDCBF : 均一な加工面で寸法精度も良好 UDCB: Coating damage on cutting edge causes milling gap.

UDCBF: Uniform surface with excellent dimensional accuracy.

a

p

a

p

a

e

a

p

a

e

a

p

a

e

(5)

回転速度Spindle Speed 送り速度 Feed Rate

軸方向の切込み深さ Axial Depth クーラント Coolant

被削材 Work Material

使用工具 Tool UDCB 2010-0070 (R0.5×0.7)UDCBF 2010-0070 (R0.5×0.7) 超硬合金Cemented Carbide VM-40 (90HRA) 30,000 min-1

300 mm/min 0.1 mm

エアブロー (ノズル)Air Blow (Nozzle)

特殊処理で

シャープな切れ刃

Sharp cutting edge

with special

treatment

先端の溝形状

Chip pocket designed

on tool tip

選定基準

How to Choose

UDC

超硬合金加工の初期費用を抑えたい

Initial Cost Saving

超硬合金を仕上げ面・工具寿命重視で切削したい

Better Surface Finish / Longer Tool Life

UDCB / UDCLB

UDCBF / UDCLBF

VM-40 (90HRA)

切れ刃への特殊処理により切削抵抗を大幅に軽減!

Special treatment on cutting edge reduces cutting resistance!

超硬合金 切削抵抗

UDCBF R0.5×0.7 ボールエンドミル

Cemented Carbide Cutting Resistance Comparison using UDCBF R0.5x0.7 Ball End Mill

①新開発 UDC

ダイヤモンドコート

New UDC

Diamond Coating

②シャープな

切れ刃

Sharp cutting

edge

③先端の溝形状

Chip pocket

designed on

tool tip

F(Fine) とは

①仕上げ面の段差の発生を改善

②コバ欠けの抑制



③加工除去量の拡大

"F (Fine)" Series offers

①Seamless surface finish

②Minimized edge chipping

③More material removal amount

F

F

X 方向 Y 方向 Z 方向

"F (Fine)" Series Advantages

X Direction Y Direction Z Direction

超硬合金 φ20 テーパ 15°形状  UDCBF R0.5×0.7 ボールエンドミル

Cemented Carbide

φ

20 15° Taper milled with UDCBF R0.5x0.7 Ball End Mill

1

2

3

UDCB

UDCBF

UDCB

UDCBF

回転速度Spindle Speed 送り速度 Feed Rate 軸方向の切込み深さ Axial Depth 半径方向の切込み深さ Radial Depth クーラント Coolant 加工時間 Cycle Time 30,000 min-1 300 mm/min 0.05 mm 0.02 mm

エアブロー (ノズル) Air Blow (Nozzle) 55 min 5 second 被削材 Work Material 30,000 min-1 300 mm/min 0.05 mm 0.25 mm

エアブロー (ノズル) Air Blow (Nozzle) 被削材 Work Material 使用工具 Tool UDCB 2010-0070 (R0.5×0.7) UDCBF 2010-0070 (R0.5×0.7) UDCLB 2010-0250 (R0.5×2.5×0.7) UDCLBF 2010-0250 (R0.5×2.5×0.7) UDCLB 2010-0400 (R0.5×4×0.7) UDCLBF 2010-0400 (R0.5×4×0.7) 回転速度 Spindle Speed 送り速度 Feed Rate 軸方向の切込み深さ Axial Depth 半径方向の切込み深さ Radial Depth クーラント Coolant 超硬合金Cemented Carbide VM-40 (90HRA) 使用工具 Tool UDCB 2010-0070 (R0.5×0.7) UDCBF 2010-0070 (R0.5×0.7) 超硬合金 Cemented Carbide VF-10 (93HRA) 回転速度Spindle Speed 送り速度 Feed Rate 軸方向の切込み深さ Axial Depth 半径方向の切込み深さ Radial Depth クーラント Coolant 30,000 min-1 300 mm/min 0.02 mm 0.05 mm

エアブロー (ノズル)Air Blow (Nozzle) 被削材 Work Material

使用工具 Tool UDCB 2010-0070 (R0.5×0.7)UDCBF 2010-0070 (R0.5×0.7)

超硬合金Cemented Carbide VM-40 (90HRA)

除去体積

Material Removal Amount

mm

3

全刃長

All Flute Effective Length有効長 2.5mm Effective Length有効長 4.0mm

VF-10 (93HRA)

超硬合金 被削材のコバ欠け比較 UDCBF R0.5×0.7 ボールエンドミル

Cemented Carbide Comparison of Edge Chipping using UDCBF R0.5x0.7 Ball End Mill

超硬合金 荒加工における

UDCBF ・ UDCLBF の除去体積比較

Cemented Carbide Material Removal Amount Comparison on Roughing using UDCBF & UDCLBF

VM-40 (90HRA)

VM-40 (90HRA)

被削材のコバ欠け

Edge chipping on work material

上面

Surface

100μm

側面

Side

100μm

上面

Surface

100μm

側面

Side

100μm

事例 ①

Milling Examples

UDCBF / UDCLBF

仕上げ面の段差を改善

Seamless surface finish

コバ欠けの抑制

Minimized edge chipping

加工除去量の拡大

More material removal amount

15μm

-15μm Form accuracy形状精度 Form accuracy形状精度

段差 Gap 加工方向 Milling direction 加工方向 Milling direction 15μm -15μm UDCB : 切れ刃のコーティングが損傷し、 加工面に段差が発生 UDCBF : 均一な加工面で寸法精度も良好 UDCB: Coating damage on cutting edge causes milling gap.

UDCBF: Uniform surface with excellent dimensional accuracy.

a

p

a

p

a

e

a

p

a

e

a

p

a

e

(6)

超硬合金 大容量ポケット形状

UDCB R3×4.2  ボールエンドミル

Cemented Carbide Pocket milled with UDCB R3x4.2 Ball End Mill

バインダレス超硬合金 (

90HRA ~ ) UDCB R0.5・ R1 ボールエンドミル レンズアレイ加工事例

Binderless Cemented Carbide (90HRA~) Lens Array milled with UDCB R0.5 & R1 Ball End Mills

加工後エンドミル

After milling

テーパ 四角ポケット形状

サイズ : 25

25

深さ 5 mm 外周勾配 5°

    角部 R3.5 mm、 底面 R3.2 mm

サイズ

Size

25 mm × 25 mm

【加工プロセス

Milling Process

使用工具 Tool 回転速度Spindle Speed 送り速度 Feed Rate 軸方向の切込み深さ Axial Depth 半径方向の切込み深さ Radial Depth クーラント Coolant 加工時間 Cycle Time

除去体積 Material Removal Amount

UDCB 2060-0420 (R3x4.2) 20,000 min-1 200 mm/min 0.2 mm 0.4 mm  エアブロー Air Blow 137 min 2,800 mm3 (2.8 cc)  20.4 mm3/min

Tapered square pocket milling

Size: 25 x 25 x 5 mm depth



Outside ball taper 5°



Corner R3.5 mm



Bottom R3.2 mm

被削材 Work Material 超々微粒子超硬合金Super Micro Grain Cemented Carbide VF-20 (92.5HRA)

5 軸加工機により曲面を高精度に加工

5 axis machining provides high quality curved surface.

実加工時間 :

8 時間 49 分

Actual cycle time: 8 h 49 min

クーラント : エアブロー

Coolant : Air blow

切削モード Milling Mode 等高線高効率荒取り Z-Level High Efficiency Roughing 等高取り残し加工

Z-Level Re-machining 複合面沿い加工

Curve Control Along Surface 等高線仕上げ Z-Level Finishing 等高線仕上げ Z-Level Finishing 使用工具 Tool UDCB 2020-0140 (R1×1.4) UDCB 2010-0070 (R0.5×0.7) UDCB 2010-0070 (R0.5×0.7) UDCB 2010-0070 (R0.5×0.7) UDCB 2010-0070 (R0.5×0.7) 30,000 30,000 30,000 30,000 30,000 回転速度 Spindle Speed (min-1 送り速度 Feed Rate (mm/min) 300 300 300 300 300 0.1 0.05 -0.3 0.2 0.02

-5

6

使用工具 Tool 被削材 Work Material 回転速度Spindle Speed 送り速度 Feed Rate 軸方向の切込み深さ Axial Depth 半径方向の切込み深さ Radial Depth クーラント Coolant 加工時間 Cycle Time

除去体積 Material Removal Amount

0.05 mm 0.25 mm 43 分 43 min 86.3 mm3 0.028 mm 0.02 mm 2 時間 17 分 2 h 17 min 12.0 mm3

VF-20 (92.5HRA)

mm)mm)

UDCB

レンズアレイ加工動画

Lens Array

Milling Video

UDCBF

チップ形状加工動画

UDCBF Series

Indexable Insert Mold

Milling Video

1本で2.8cc加工 !

One tool removed 2.8cc of

material!

事例 ②

Milling Examples

UDCB / UDCLB / UDCLRS

4

超硬合金 チップ形状

UDCBF R0.5×0.7 ボールエンドミル

VM-40 (90HRA)

超硬合金Cemented Carbide VM-40 (90HRA) 30,000 min-1

300 mm/min

エアブロー (ノズル) Air Blow (Nozzle) 荒加工

Roughing

仕上げ加工 Finishing

※荒 ・ 仕上げ加工で各 1 本、 合計 2 本使用 One End Mill for both roughing and finishing processes. Total 2 tools are used.

荒加工後の工具

Tool after roughing

仕上げ加工後の工具

Tool after finishing

仕上げ加工後のワーク

Work sample after finishing

上面

Surface

側面

Side

UDCBF による仕上げ面粗さ

Surface Roughness

サイズ

Size

20mm × 20mm × 10mm

Ra: 0.054μm

Rz: 0.408μm

Ra: 0.051μm

Rz: 0.399μm

Ra: 0.068μm

Rz: 0.520μm

Cemented Carbide Indexable Insert Mold milled with UDCBF R0.5x0.7 Ball End Mill

面粗さ良好!

Excellent surface quality!

コバ欠けなし!

Minimized edge chipping

UDCBF 2010-0070 (R0.5×0.7)

200.00μm

Axial Depth Radial Depth

a

p

a

e

a

p

a

e

(7)

超硬合金 大容量ポケット形状

UDCB R3×4.2  ボールエンドミル

Cemented Carbide Pocket milled with UDCB R3x4.2 Ball End Mill

バインダレス超硬合金 (

90HRA ~ ) UDCB R0.5・ R1 ボールエンドミル レンズアレイ加工事例

Binderless Cemented Carbide (90HRA~) Lens Array milled with UDCB R0.5 & R1 Ball End Mills

加工後エンドミル

After milling

テーパ 四角ポケット形状

サイズ : 25

25

深さ 5 mm 外周勾配 5°

    角部 R3.5 mm、 底面 R3.2 mm

サイズ

Size

25 mm × 25 mm

【加工プロセス

Milling Process

使用工具 Tool 回転速度Spindle Speed 送り速度 Feed Rate 軸方向の切込み深さ Axial Depth 半径方向の切込み深さ Radial Depth クーラント Coolant 加工時間 Cycle Time

除去体積 Material Removal Amount

UDCB 2060-0420 (R3x4.2) 20,000 min-1 200 mm/min 0.2 mm 0.4 mm  エアブロー Air Blow 137 min 2,800 mm3 (2.8 cc)  20.4 mm3/min

Tapered square pocket milling

Size: 25 x 25 x 5 mm depth



Outside ball taper 5°



Corner R3.5 mm



Bottom R3.2 mm

被削材 Work Material 超々微粒子超硬合金Super Micro Grain Cemented Carbide VF-20 (92.5HRA)

5 軸加工機により曲面を高精度に加工

5 axis machining provides high quality curved surface.

実加工時間 :

8 時間 49 分

Actual cycle time: 8 h 49 min

クーラント : エアブロー

Coolant : Air blow

切削モード Milling Mode 等高線高効率荒取り Z-Level High Efficiency Roughing 等高取り残し加工

Z-Level Re-machining 複合面沿い加工

Curve Control Along Surface 等高線仕上げ Z-Level Finishing 等高線仕上げ Z-Level Finishing 使用工具 Tool UDCB 2020-0140 (R1×1.4) UDCB 2010-0070 (R0.5×0.7) UDCB 2010-0070 (R0.5×0.7) UDCB 2010-0070 (R0.5×0.7) UDCB 2010-0070 (R0.5×0.7) 30,000 30,000 30,000 30,000 30,000 回転速度 Spindle Speed (min-1 送り速度 Feed Rate (mm/min) 300 300 300 300 300 0.1 0.05 -0.3 0.2 0.02

-5

6

使用工具 Tool 被削材 Work Material 回転速度Spindle Speed 送り速度 Feed Rate 軸方向の切込み深さ Axial Depth 半径方向の切込み深さ Radial Depth クーラント Coolant 加工時間 Cycle Time

除去体積 Material Removal Amount

0.05 mm 0.25 mm 43 分 43 min 86.3 mm3 0.028 mm 0.02 mm 2 時間 17 分 2 h 17 min 12.0 mm3

VF-20 (92.5HRA)

mm)mm)

UDCB

レンズアレイ加工動画

Lens Array

Milling Video

UDCBF

チップ形状加工動画

UDCBF Series

Indexable Insert Mold

Milling Video

1本で2.8cc加工 !

One tool removed 2.8cc of

material!

事例 ②

Milling Examples

UDCB / UDCLB / UDCLRS

4

超硬合金 チップ形状

UDCBF R0.5×0.7 ボールエンドミル

VM-40 (90HRA)

超硬合金Cemented Carbide VM-40 (90HRA) 30,000 min-1

300 mm/min

エアブロー (ノズル) Air Blow (Nozzle) 荒加工

Roughing

仕上げ加工 Finishing

※荒 ・ 仕上げ加工で各 1 本、 合計 2 本使用 One End Mill for both roughing and finishing processes. Total 2 tools are used.

荒加工後の工具

Tool after roughing

仕上げ加工後の工具

Tool after finishing

仕上げ加工後のワーク

Work sample after finishing

上面

Surface

側面

Side

UDCBF による仕上げ面粗さ

Surface Roughness

サイズ

Size

20mm × 20mm × 10mm

Ra: 0.054μm

Rz: 0.408μm

Ra: 0.051μm

Rz: 0.399μm

Ra: 0.068μm

Rz: 0.520μm

Cemented Carbide Indexable Insert Mold milled with UDCBF R0.5x0.7 Ball End Mill

面粗さ良好!

Excellent surface quality!

コバ欠けなし!

Minimized edge chipping

UDCBF 2010-0070 (R0.5×0.7)

200.00μm

Axial Depth Radial Depth

a

p

a

e

a

p

a

e

(8)

8

超硬合金

UDCLRS φ2×CR0.05×2 ロングネックラジアスエンドミル

Cemented Carbide UDCLRS φ2xCR0.05x2 Long Neck Radius End Mill

10

アルミナ ・ ジルコニア ヘクサロビュラ形状

Alumina / Zirconia Hexalobular milled with UDCB R0.5x0.7 Ball End Mill

UDCB R0.5×0.7 ボールエンドミル

仕上げ加工後

After Finishing

加工条件 Milling Conditions 荒加工条件 Roughing Parameter 20,000 min-1 750 mm/min 0.9 mm 0.01 mm エアブロー Air Blow 10 mm x 8 mm x 1.8 mm 16 m オイルミスト Oil Mist 0.01 mm -144 mm3 -20,000 min-1 100 mm/min 0.01 mm 底面側 Surface 0.9 mm 側面側 Side (0.01 mm×5回 Times) 仕上げ条件 Finishing Parameter 被削材 Work Material 回転速度Spindle Speed 使用工具 Tool クーラントCoolant 加工サイズ Milling Size 加工距離 Milling Distance XY 送り速度 Feed Rate 軸方向の切り込み深さ Axial Depth 除去体積

Material Removal Amount 半径方向の切り込み深さ Radial Depth

超々微粒子超硬合金 Super Micro Grain Cemented Carbide VM-40 (90HRA) 工具突き出し長Overhang : 15 mm 使用工具 Tool 回転速度Spindle Speed 送り速度 Feed Rate 軸方向の切り込み深さ Axial Depth 半径方向の切り込み深さ Radial Depth クーラント Coolant 加工時間 Cycle Time

除去体積 Material Removal Amount

UDCB 2010-0070 (R0.5×0.7) アルミナ Aℓ2O3 Alumina / ジルコニア ZrO2 Zirconia

30,000 min-1

300 mm/min 0.05 mm 0.05 mm

エアブロー (ノズル) Air Blow (Nozzle) 98 min

88.4 mm3 0.9 mm3/min

被削材 Work Material ※荒 ・ 仕上げ加工で各1 本、 合計 2 本使用

 One End Mill for both roughing and finishing processes. Total 2 tools are used.

Ra: 0.069μm Rz: 0.535μm カットオフ長: 0.25 mm Cut-off length : 0.25 mm Ra: 0.010μm (10 nm) Rz: 0.078μm (78 nm) カットオフ長: 0.08 mm Cut-off length : 0.08 mm

ヘクサロビュラ形状  サイズ :

φ9 x 深さ 2.2 mm

Hexalobular        Size : φ9 mm x 2.2 mm depth

アルミナ

Aℓ

2

O

3

Alumina

ジルコニア ZrO

Zirconia

2

底面の状態

Surface Quality

仕上げ加工後のワーク

Work sample after finishing process

9

VM-40 (90HRA)

*Designed for the materials stated in the application chart of each series. 0.01 mm 底面側 Surface

0.05 mm 側面側 Side

むしれの無い、鏡面加工!

Mirror surface finish

with zero pits!

UDCLRS

側面加工動画

Side Milling Video

超硬だけじゃない!

Versatile coating ! *

UDCLRS 2020-005-020

超硬合金 剣山形状

UDCLB R0.5×5 ロングネックボールエンドミル

Cemented Carbide Micro Needles milled with UDCLB R0.5x5 Long Neck Ball End Mill

超硬合金 ヘクサロビュラ形状

UDCLB R0.5×5 ・ R0.5×2 ロングネックボールエンドミル

Cemented Carbide Hexalobular milled with UDCLB R0.5x5 & R0.5x2 Long Neck Ball End Mills

サイズ :

6 x 6 x 深さ 5 mm

サイズ

( ピン) : 先端径 0.2 mm 深さ 5 mm

       根元径

0.34 mm

サイズ :φ

9 深さ 6 mm

Size: φ9, 6 mm depth

使用工具 Tool 回転速度Spindle Speed 送り速度 Feed Rate 軸方向の切り込み深さ Axial Depth 半径方向の切り込み深さ Radial Depth クーラント Coolant 加工時間 Cycle Time

除去体積 Material Removal Amount

UDCLB 2010-0500 (R0.5×5 mm)

被削材 Work Material 超々微粒子超硬合金 Super Micro Grain Cemented Carbide VF-20 (92.5HRA)

R0.5 ボールエンドミルで加工深さ 6 mm まで

の深彫りを、 驚異的な 『深』 切り込みで

実現しました。

R0.5 ball End Mill reaches deep into the

pocket (6 mm) with a great depth of cut.

Total : 156 min

Total : 274.4 mm

3 加工条件 Milling Conditions 工程1 Process 1 荒加工 深さ3.5mm まで 工程2 Process 2 荒加工 深さ6mm まで 工程3 Process 3 仕上げ加工 使用工具Tool 被削材Work Material 回転速度Spindle Speed クーラントCoolant 加工時間 Cycle Time 送り速度Feed Rate 軸方向の切り込み深さ Axial Depth 除去体積

Material Removal Amount 半径方向の切り込み深さ Radial Depth

Roughing

Max 3.5mm depth Max 6mm depthRoughing

UDCLB 2010-0500 UDCLB 2010-0200

エアブローAir Blow

超々微粒子超硬合金 Super Micro Grain Cemented Carbide VF-20 (92.5HRA) 30,000 min-1 300 mm/min 0.05 mm 0.3 mm 58 min 152.8 mm3 120 mm3 1.6 mm3 0.25 mm 64 min 0.005 mm 0.03 mm 34 min Finishing ※加工後の写真です ※After finishing process

① 深さ~2.5 mm まで Max 2.5 mm depth ② 深さ~5.0 mm まで Max 5.0 mm depth 30,000 min-1 300 mm/min 0.1 mm エアブロー Air Blow 0.05 mm 52 min 80.1 mm3 0.05 mm(底面 Bottom 0.02 mm) 39 min 76.5 mm3

Overall size : 6 x 6 x 5 mm depth

Pin size : Tip diameter: 0.2 mm Pin length: 5 mm Root diameter: 0.34 mm

7

8

※①②で各1本、合計2本使用

One tool for ① and ②. Total 2 tools are used.

VF-20 (92.5HRA)

VF-20 (92.5HRA)

深彫り加工もこのとおり!

Super durable

deep milling!

UDCLB

ヘクサロビュラ形状加工動画

Hexalobular Milling Video

超硬なのにこの細さ!

わずかφ

0.2 mm!!

Diameter 0.2 mm !

Carbide micro pin.

a

p

a

e

a

p

a

e

a

p

a

e

a

p

a

e

(9)

8

超硬合金

UDCLRS φ2×CR0.05×2 ロングネックラジアスエンドミル

Cemented Carbide UDCLRS φ2xCR0.05x2 Long Neck Radius End Mill

10

アルミナ ・ ジルコニア ヘクサロビュラ形状

Alumina / Zirconia Hexalobular milled with UDCB R0.5x0.7 Ball End Mill

UDCB R0.5×0.7 ボールエンドミル

仕上げ加工後

After Finishing

加工条件 Milling Conditions 荒加工条件 Roughing Parameter 20,000 min-1 750 mm/min 0.9 mm 0.01 mm エアブロー Air Blow 10 mm x 8 mm x 1.8 mm 16 m オイルミスト Oil Mist 0.01 mm -144 mm3 -20,000 min-1 100 mm/min 0.01 mm 底面側 Surface 0.9 mm 側面側 Side (0.01 mm×5回 Times) 仕上げ条件 Finishing Parameter 被削材 Work Material 回転速度Spindle Speed 使用工具 Tool クーラントCoolant 加工サイズ Milling Size 加工距離 Milling Distance XY 送り速度 Feed Rate 軸方向の切り込み深さ Axial Depth 除去体積

Material Removal Amount 半径方向の切り込み深さ Radial Depth

超々微粒子超硬合金 Super Micro Grain Cemented Carbide VM-40 (90HRA) 工具突き出し長Overhang : 15 mm 使用工具 Tool 回転速度Spindle Speed 送り速度 Feed Rate 軸方向の切り込み深さ Axial Depth 半径方向の切り込み深さ Radial Depth クーラント Coolant 加工時間 Cycle Time

除去体積 Material Removal Amount

UDCB 2010-0070 (R0.5×0.7) アルミナ Aℓ2O3 Alumina / ジルコニア ZrO2 Zirconia

30,000 min-1

300 mm/min 0.05 mm 0.05 mm

エアブロー (ノズル) Air Blow (Nozzle) 98 min

88.4 mm3 0.9 mm3/min

被削材 Work Material ※荒 ・ 仕上げ加工で各1 本、 合計 2 本使用

 One End Mill for both roughing and finishing processes. Total 2 tools are used.

Ra: 0.069μm Rz: 0.535μm カットオフ長: 0.25 mm Cut-off length : 0.25 mm Ra: 0.010μm (10 nm) Rz: 0.078μm (78 nm) カットオフ長: 0.08 mm Cut-off length : 0.08 mm

ヘクサロビュラ形状  サイズ :

φ9 x 深さ 2.2 mm

Hexalobular        Size : φ9 mm x 2.2 mm depth

アルミナ

Aℓ

2

O

3

Alumina

ジルコニア ZrO

Zirconia

2

底面の状態

Surface Quality

仕上げ加工後のワーク

Work sample after finishing process

9

VM-40 (90HRA)

*Designed for the materials stated in the application chart of each series. 0.01 mm 底面側 Surface

0.05 mm 側面側 Side

むしれの無い、鏡面加工!

Mirror surface finish

with zero pits!

UDCLRS

側面加工動画

Side Milling Video

超硬だけじゃない!

Versatile coating ! *

UDCLRS 2020-005-020

超硬合金 剣山形状

UDCLB R0.5×5 ロングネックボールエンドミル

Cemented Carbide Micro Needles milled with UDCLB R0.5x5 Long Neck Ball End Mill

超硬合金 ヘクサロビュラ形状

UDCLB R0.5×5 ・ R0.5×2 ロングネックボールエンドミル

Cemented Carbide Hexalobular milled with UDCLB R0.5x5 & R0.5x2 Long Neck Ball End Mills

サイズ :

6 x 6 x 深さ 5 mm

サイズ

( ピン) : 先端径 0.2 mm 深さ 5 mm

       根元径

0.34 mm

サイズ :φ

9 深さ 6 mm

Size: φ9, 6 mm depth

使用工具 Tool 回転速度Spindle Speed 送り速度 Feed Rate 軸方向の切り込み深さ Axial Depth 半径方向の切り込み深さ Radial Depth クーラント Coolant 加工時間 Cycle Time

除去体積 Material Removal Amount

UDCLB 2010-0500 (R0.5×5 mm)

被削材 Work Material 超々微粒子超硬合金 Super Micro Grain Cemented Carbide VF-20 (92.5HRA)

R0.5 ボールエンドミルで加工深さ 6 mm まで

の深彫りを、 驚異的な 『深』 切り込みで

実現しました。

R0.5 ball End Mill reaches deep into the

pocket (6 mm) with a great depth of cut.

Total : 156 min

Total : 274.4 mm

3 加工条件 Milling Conditions 工程1 Process 1 荒加工 深さ3.5mm まで 工程2 Process 2 荒加工 深さ6mm まで 工程3 Process 3 仕上げ加工 使用工具Tool 被削材Work Material 回転速度Spindle Speed クーラントCoolant 加工時間 Cycle Time 送り速度Feed Rate 軸方向の切り込み深さ Axial Depth 除去体積

Material Removal Amount 半径方向の切り込み深さ Radial Depth

Roughing

Max 3.5mm depth Max 6mm depthRoughing

UDCLB 2010-0500 UDCLB 2010-0200

エアブローAir Blow

超々微粒子超硬合金 Super Micro Grain Cemented Carbide VF-20 (92.5HRA) 30,000 min-1 300 mm/min 0.05 mm 0.3 mm 58 min 152.8 mm3 120 mm3 1.6 mm3 0.25 mm 64 min 0.005 mm 0.03 mm 34 min Finishing ※加工後の写真です ※After finishing process

① 深さ~2.5 mm まで Max 2.5 mm depth ② 深さ~5.0 mm まで Max 5.0 mm depth 30,000 min-1 300 mm/min 0.1 mm エアブロー Air Blow 0.05 mm 52 min 80.1 mm3 0.05 mm(底面 Bottom 0.02 mm) 39 min 76.5 mm3

Overall size : 6 x 6 x 5 mm depth

Pin size : Tip diameter: 0.2 mm Pin length: 5 mm Root diameter: 0.34 mm

7

8

※①②で各1本、合計2本使用

One tool for ① and ②. Total 2 tools are used.

VF-20 (92.5HRA)

VF-20 (92.5HRA)

深彫り加工もこのとおり!

Super durable

deep milling!

UDCLB

ヘクサロビュラ形状加工動画

Hexalobular Milling Video

超硬なのにこの細さ!

わずかφ

0.2 mm!!

Diameter 0.2 mm !

Carbide micro pin.

a

p

a

e

a

p

a

e

a

p

a

e

a

p

a

e

(10)

UDCBF

サイズ

Size

R0.1~R1

超硬合金・硬脆材を切削できるボールエンドミル(

UDCB

の上級バージョン)。 刃形状とダイヤモンドコーティングを新たに改良し、加工除去体積を大幅に向上。 ボール先端に設けた溝により、抜群の仕上げ面を実現。 切れ刃に特殊処理を施し、被削材のコバ欠けや段差を最大限に抑制し、中荒から仕上げ加工に幅広く適応。

Ball type End Mills for milling Cemented Carbide and Hard Brittle (Non-Metallic) Materials. Upgraded version of UDCB.

New Diamond coating and flute design increase material removal amount.

Chip pocket designed on tool tip improves the surface finishing quality.

Special cutting edge treatment helps to avoid the edge chipping & level gap on the work piece.

Recommended to use on semi-roughing & finishing process.

特長



Features

シャンクテーパ角は目安です。 ワークとの干渉が心配な場合は必ず実測して確認してください。 シャンク部とワークの接触にご注意ください。

The shank taper angle shown is not an exact value and to avoid contact with the workpiece, we recommend the user controls the precise value of this angle. Shank taper angle should not make contact with the work piece.

合計

12

型番

Total 12 models

単位

Unit

mm

型番

Model

Number

ボール半径

Radius of

Ball Nose

R

刃長

Length

of Cut

ℓ シャンクテーパ角

Shank Taper

Angle

Bta

全長

Overall

Length

L

シャンク径

Shank

Diameter

φ

d

定価

Price

UDCBF 2002-0014

R0.1 0.14 16° 50 4 47,000

UDCBF 2003-0021

R0.15 0.21 16° 50 4 47,000

UDCBF 2004-0028

R0.2 0.28 16° 50 4 42,800

UDCBF 2005-0035

R0.25 0.35 16° 50 4 42,800

UDCBF 2006-0042

R0.3 0.42 16° 50 4 38,400

UDCBF 2007-0049

R0.35 0.49 16° 50 4 38,400

UDCBF 2008-0056

R0.4 0.56 16° 50 4 38,400

UDCBF 2009-0063

R0.45 0.63 16° 50 4 38,400

UDCBF 2010-0070

R0.5 0.7 16° 50 4 38,400

UDCBF 2012-0084

R0.6 0.84 16° 50 4 38,400

UDCBF 2015-0105

R0.75 1.05 16° 50 4 38,400

UDCBF 2020-0140

R1 1.4 16° 50 4 38,400

対応被削材表(☆◎○の順に推奨)

Material Applications

(☆

Highly Recommended

Recommended

Suggested

被 削 材

Work Material

炭素鋼 CARBON STEELS S45C S55C 合金鋼 ALLOY STEELS SK/SCM SUS プリハードン鋼 PREHARDENED STEELS NAK HPM 焼入れ鋼 HARDENED STEELS 鋳鉄

CAST IRON ALUMINUMアルミ合金 ALLOYS

グラファイト

GRAPHITE COPPER銅 PLASTICS樹脂 ガラス入り樹脂GLASS FILLED PLASTICS チタン合金 TITANIUM ALLOYS 超耐熱合金 HEAT RESISTANT ALLOYS 超硬合金 CEMENTED CARBIDE 硬脆材 HARD BRITTLE (NON-METALLIC) MATERIALS ~55HRC ~60HRC ~70HRC

※1

※2

※ 1 ガラス入り樹脂には DCB・DCLB を推奨いたします。

DCB / DCLB series are highly recommended for Glass Filled Plastic milling.

※ 2 硬脆材:セラミックス(アルミナ、ジルコニアなど)、ガラスなど

Hard Brittle (Non-Metallic) Materials: Ceramics (Alumina, Zirconia, etc.), Glasses and etc.

2 枚刃 2 Flutes 超硬合金・硬脆材加工用ハイグレードボールエンドミル High-grade Ball End Mills for Cemented Carbide and Hard Brittle Materials

ラベルに実測の外径とR精度を記載しております。 高精度加工にお役立てください。

Diameter and Ball R accuracy measurements are printed on the label to support High Precision milling.

㻏㻜㻞㻞㻌䃥㻰㻜㻚㻣㻤㻤㻌㻾㻗㻜㻚㻜㻜㻠㻛㻙㻜㻚㻜㻜㻝 SAMPLE SAMPLE

条件表変更

Revised Conditions

特許出願中

Patent Pending

(11)

UDCBF

切削条件表

Milling Conditions

備考: ・切削抵抗が大きいため、剛性の低い機械での加工は推奨できません。 ・加工機は十分な暖機運転を行い、主軸の伸びが安定してから加工を開始してください。 ・工具の突き出し長は最低限としてください。 ・コーティングがつきまわったシャンク部はチャッキングしないでください。刃先の振れが大きくなったり、工具が抜けなくなることがあります。 ・加工機上での刃先の振れを確認し、小さい振れで加工を実施してください。 ・アプローチは傾斜もしくはヘリカルを推奨致します(傾斜角度は

5

°以下推奨)。 ・回転速度を下げる場合は、送り速度も同じ比率で下げてください。 ・超硬合金加工においては、エアブローが最も工具寿命を延ばしますが、油性切削油やオイルミストも使用できます。 ・硬脆材加工においては、水溶性切削油を推奨します。 ・被削材によっては切りくずが重いことがありますので、エアブローやクーラントを加工点に確実に供給し、切りくずを除去してください。 ・加工状況によっては火花が出ることがありますので、発熱や発火にご注意ください。 ・切りくずや粉塵が人体に入らないように、保護めがねやマスクなどを必ず着用してください。 ・切りくずや粉塵が加工機の機構部品に入り込む可能性がありますので、別途対策を推奨致します。

Note:

This application requires a high cutting force. A machine with poor rigidity and high vibration is not recommended.

Allow sufficient machine and spindle warm-up time for stability and to remove any expansion of the main spindle before running the program.

Tool setting length should achieve the least possible overhang.

Avoid contact with the coated area of the shank. This will prevent tip vibration and tool jamming in the collet / holder.

Run-out and vibration should be checked dynamically at the tool point while mounted in the machine and both should achieve the lowest level possible.

Use an inclined or helical approach (Recommended inclination angle: <5 degree).

Decrease both spindle speed and feed rate proportionally.

Air blow is highly recommended for longer tool life. Both oil mist and oil coolant are alternatives.

Recommend water soluble coolant for Hard Brittle (Non-Metallic) Materials.

When milling some work pieces, heavier chips may be created. To evacuate these chips it is important to accurately position the coolant nozzle on the milling part.

Remove chips to prevent heat generation and ignition during milling process.

Protective gear, such as safety glasses and face guards are required when milling.

Chips / dust generated while milling can have adverse affects on the machine parts if they are not properly evacuated. Take steps to assure proper evacuation.

この条件表の超硬合金については、

VF-20, VM-40, VC-70, VU-70

CIS

規格)を、硬脆材についてはアルミナをもとに作成しており、切削条件の目安を示すものです。

加工する超硬合金や硬脆材の種類により、工具寿命に差があります。

実際の加工では、超硬合金、硬脆材の材種、加工形状、機械剛性、主軸などの加工環境により、加工条件の最適化が必要となる場合があります。

These milling parameters are based on VF-20, VM-40, VC-70, VU-70 (CIS standard) for Cemented Carbide, and Alumina for Hard Brittle Materials. These are for reference only.

Tool life may differ depending on the type of Cemented Carbide / Hard Brittle Materials.

For best result, fine parameter adjustments may be required, depending on the materials of Cemented Carbide / Hard Brittle Materials; milling shape and strategy; machine rigidity

and spindle capability.

※送り速度2 :アプローチや接続移動時の送り速度

※Feed Rate 2: Approach feed rate and contact time on the surface.

a

p:軸方向の切込み深さ(mm)

a

e:半径方向の切込み深さ(mm)=Pf

a

p:Axial Depth(mm)

a

e:Radial Depth(mm)=Pf

被削材

WORK MATERIAL

超硬合金(≧

87HRA

)/ 硬脆材

CEMENTED CARBIDE

(≧

87HRA

)/

HARD BRITTLE MATERIALS

超硬合金(<

87HRA

CEMENTED CARBIDE

(<

87HRA

) 型番

Model

Number

ボール半径

Radius of

Ball Nose

mm

) 刃長

Length

of Cut

mm

) 回転速度

Spindle

Speed

min

-1 送り速度

Feed

Rate

mm/min

) ※送り速度

2

Feed

Rate 2

mm/min

a

p

Axial

Depth

mm

a

e

Radial

Depth

mm

) 回転速度

Spindle

Speed

min

-1 送り速度

Feed

Rate

mm/min

) ※送り速度

2

Feed

Rate 2

mm/min

a

p

Axial

Depth

mm

a

e

Radial

Depth

mm

2002-0014

R0.1

0.14

30,000

100

10

0.01

0.01

30,000

100

10

0.01

0.01

2003-0021

R0.15

0.21

30,000

125

13

0.015

0.03

30,000

125

13

0.015

0.03

2004-0028

R0.2

0.28

30,000

150

15

0.02

0.08

30,000

150

15

0.02

0.08

2005-0035

R0.25

0.35

30,000

175

18

0.025

0.11

30,000

175

18

0.025

0.11

2006-0042

R0.3

0.42

30,000

200

20

0.03

0.14

30,000

200

20

0.03

0.14

2007-0049

R0.35

0.49

30,000

225

23

0.035

0.17

30,000

225

23

0.035

0.17

2008-0056

R0.4

0.56

30,000

250

25

0.04

0.19

30,000

250

25

0.04

0.19

2009-0063

R0.45

0.63

30,000

275

28

0.045

0.22

30,000

275

28

0.045

0.22

2010-0070

R0.5

0.7

30,000

300

30

0.05

0.25

30,000

300

150

0.35

0.075

2012-0084

R0.6

0.84

27,500

275

36

0.06

0.26

25,000

250

125

0.42

0.09

2015-0105

R0.75

1.05

25,000

250

45

0.075

0.27

19,000

190

95

0.525

0.12

2020-0140

R1

1.4

20,000

200

60

0.1

0.3

12,500

125

60

0.7

0.15

(12)

UDCLBF

サイズ

Size

R0.1~R1

超硬合金・硬脆材を切削できるロングネックボールエンドミル(

UDCLB

の上級バージョン)。 刃形状とダイヤモンドコーティングを新たに改良し、加工除去体積を大幅に向上。 ボール先端に設けた溝により、抜群の仕上げ面を実現。 切れ刃に特殊処理を施し、被削材のコバ欠けや段差を最大限に抑制し、中荒から仕上げ加工に幅広く対応。

Long Neck Ball type End Mills for milling Cemented Carbide and Hard Brittle (Non-Metallic) Materials. Upgraded version of UDCLB.

New Diamond coating and flute design increase material removal amount.

Chip pocket designed on tool tip improves the surface finishing quality.

Special cutting edge treatment helps to avoid the edge chipping & level gap on the work piece.

Recommended to use on semi-roughing & finishing process.

特長



Features

シャンクテーパ角は目安です。 ワークとの干渉が心配な場合は必ず実測して確認してください。 シャンク部とワークの接触にご注意ください。

The shank taper angle shown is not an exact value and to avoid contact with the workpiece, we recommend the user controls the precise value of this angle. Shank taper angle should not make contact with the work piece.

合計

45

型番

Total 45 models

単位

Unit

mm

型番 Model Number ボール半径 Radius of Ball Nose R 有効長 Effective Length ℓ1 刃長 Length of Cut ℓ 首径 Neck Diameter φd1 シャンクテーパ角 Shank Taper Angle Bta 全長 Overall Length L シャンク径 Shank Diameter φd 定価 Price ¥ ワーク勾配角に対する実有効長 Effective Length by Inclined Angles 30′ 1° 1°30′ 2° 3°

UDCLBF 2002-0030

R0.1 0.3 0.14 0.18 16° 50 4 47,500 0.30 0.31 0.32 0.32 0.34

UDCLBF 2002-0050

0.5 50 4 47,500 0.51 0.52 0.54 0.55 0.59

UDCLBF 2002-0075

0.75 50 4 47,500 0.77 0.79 0.81 0.84 0.89

UDCLBF 2002-0100

1 50 4 47,500 1.02 1.05 1.09 1.12 1.20

UDCLBF 2004-0050

R0.2 0.5 0.28 0.36 16° 50 4 43,300 0.54 0.55 0.56 0.58 0.61

UDCLBF 2004-0100

1 50 4 43,300 1.06 1.08 1.12 1.15 1.22

UDCLBF 2004-0150

1.5 50 4 43,300 1.57 1.62 1.67 1.72 1.83

UDCLBF 2004-0200

2 50 4 43,300 2.09 2.15 2.22 2.29 2.44

UDCLBF 2006-0100

R0.3 1 0.42 0.56 16° 50 4 38,900 1.05 1.08 1.11 1.13 1.20

UDCLBF 2006-0150

1.5 50 4 38,900 1.57 1.61 1.66 1.70 1.81

UDCLBF 2006-0200

2 50 4 38,900 2.08 2.14 2.21 2.27 2.42

UDCLBF 2006-0300

3 50 4 38,900 3.12 3.21 3.31 3.41 3.65

UDCLBF 2006-0400

4 50 4 38,900 4.15 4.27 4.41 4.55 4.87

UDCLBF 2006-0500

5 50 4 38,900 5.18 5.34 5.51 5.69 6.09

UDCLBF 2006-0600

6 50 4 38,900 6.21 6.40 6.61 6.83 7.32

対応被削材表(☆◎○の順に推奨)

Material Applications

(☆

Highly Recommended

Recommended

Suggested

被 削 材

Work Material

炭素鋼 CARBON STEELS S45C S55C 合金鋼 ALLOY STEELS SK/SCM SUS プリハードン鋼 PREHARDENED STEELS NAK HPM 焼入れ鋼 HARDENED STEELS 鋳鉄

CAST IRON ALUMINUMアルミ合金 ALLOYS

グラファイト

GRAPHITE COPPER銅 PLASTICS樹脂 ガラス入り樹脂GLASS FILLED PLASTICS チタン合金 TITANIUM ALLOYS 超耐熱合金 HEAT RESISTANT ALLOYS 超硬合金 CEMENTED CARBIDE 硬脆材 HARD BRITTLE (NON-METALLIC) MATERIALS ~55HRC ~60HRC ~70HRC

※1

※2

※ 1 ガラス入り樹脂には DCB・DCLB を推奨いたします。

DCB / DCLB series are highly recommended for Glass Filled Plastic milling.

※ 2 硬脆材:セラミックス(アルミナ、ジルコニアなど)、ガラスなど

Hard Brittle (Non-Metallic) Materials: Ceramics (Alumina, Zirconia, etc.), Glasses and etc.

ラベルに実測の外径とR精度を記載しております。 高精度加工にお役立てください。

Diameter and Ball R accuracy measurements are printed on the label to support High Precision milling.

2 枚刃 2Flutes 超硬合金・硬脆材加工用ハイグレードロングネックボールエンドミル High-grade Long Neck Ball End Mills for Cemented Carbide and Hard Brittle Materials

㻏㻜㻠㻢㻌䃥㻰㻜㻚㻟㻤㻤㻌㻾㻙㻜㻚㻜㻜㻞㻛㻙㻜㻚㻜㻜㻡

SAMPLE

SAMPLE

特許出願中

(13)

2 枚刃 2Flutes 超硬合金・硬脆材加工用ハイグレードロングネックボールエンドミル High-grade Long Neck Ball End Mills for Cemented Carbide and Hard Brittle Materials

型番 Model Number ボール半径 Radius of Ball Nose R 有効長 Effective Length ℓ1 刃長 Length of Cut ℓ 首径 Neck Diameter φd1 シャンクテーパ角 Shank Taper Angle Bta 全長 Overall Length L シャンク径 Shank Diameter φd 定価 Price ¥ ワーク勾配角に対する実有効長 Effective Length by Inclined Angles 30′ 1° 1°30′ 2° 3°

UDCLBF 2008-0200

R0.4 2 0.56 0.76 16° 50 4 38,900 2.08 2.14 2.20 2.26 2.40

UDCLBF 2008-0300

3 50 4 38,900 3.11 3.20 3.30 3.40 3.62

UDCLBF 2008-0400

4 50 4 38,900 4.14 4.27 4.40 4.54 4.85

UDCLBF 2008-0500

5 50 4 38,900 5.18 5.33 5.50 5.67 6.07

UDCLBF 2008-0600

6 50 4 38,900 6.21 6.40 6.60 6.81 7.29

UDCLBF 2008-0800

8 50 4 38,900 8.27 8.53 8.80 9.09 9.74

UDCLBF 2010-0150

R0.5 1.5 0.7 0.96 16° 50 4 38,900 1.56 1.60 1.64 1.68 1.77

UDCLBF 2010-0200

2 50 4 38,900 2.08 2.13 2.19 2.25 2.38

UDCLBF 2010-0250

2.5 50 4 38,900 2.59 2.66 2.74 2.81 2.99

UDCLBF 2010-0300

3 50 4 38,900 3.11 3.20 3.29 3.38 3.60

UDCLBF 2010-0400

4 50 4 38,900 4.14 4.26 4.39 4.52 4.83

UDCLBF 2010-0600

6 50 4 38,900 6.20 6.39 6.59 6.80 7.27

UDCLBF 2010-0800

8 50 4 38,900 8.27 8.52 8.79 9.08 9.72

UDCLBF 2010-1000

10 50 4 38,900 10.33 10.65 10.99 11.35 12.17

UDCLBF 2015-0200

R0.75 2 1.05 1.4 16° 50 4 38,900 2.11 2.15 2.20 2.25 2.37

UDCLBF 2015-0400

4 50 4 38,900 4.17 4.28 4.40 4.53 4.81

UDCLBF 2015-0600

6 50 4 38,900 6.23 6.41 6.60 6.81 7.26

UDCLBF 2015-0800

8 50 4 38,900 8.29 8.54 8.80 9.08 9.71

UDCLBF 2015-1000

10 50 4 38,900 10.36 10.67 11.00 11.36 12.16

UDCLBF 2015-1200

12 50 4 38,900 12.42 12.80 13.20 13.64 14.60

UDCLBF 2020-0300

R1 3 1.4 1.9 16° 50 4 38,900 3.20 3.27 3.35 3.43 3.62

UDCLBF 2020-0400

4 50 4 38,900 4.23 4.34 4.45 4.57 4.84

UDCLBF 2020-0600

6 50 4 38,900 6.30 6.47 6.65 6.85 7.29

UDCLBF 2020-0800

8 50 4 38,900 8.36 8.60 8.85 9.13 9.74

UDCLBF 2020-1000

10 50 4 38,900 10.42 10.73 11.06 11.41 12.19

UDCLBF 2020-1200

12 50 4 38,900 12.48 12.86 13.26 13.68 14.63

UDCLBF 2020-1400

14 50 4 38,900 14.55 14.99 15.46 15.96 17.08

UDCLBF 2020-1600

16 50 4 38,900 16.61 17.12 17.66 18.24 19.53

UDCLBF 2020-1800

18 60 4 38,900 18.67 19.25 19.86 20.52 No Interference干渉なし

UDCLBF 2020-2000

20 60 4 38,900 20.74 21.38 22.06 22.79 No Interference干渉なし

参照

関連したドキュメント

REPRESENTATION FORMULAS OF GENERAL SOLUTIONS TO THE STATIC EQUATIONS OF THE HEMITROPIC ELASTICITY THEORY... of elasticity of

In Section 4 we present conditions upon the size of the uncertainties appearing in a flexible system of linear equations that guarantee that an admissible solution is produced

A similar program for Drinfeld modular curves was started in [10], whose main results were the construction of the Jacobian J of M through non-Archimedean theta functions ( !;;z )

(4S) Package ID Vendor ID and packing list number (K) Transit ID Customer's purchase order number (P) Customer Prod ID Customer Part Number. (1P)

Figure 2-10 Composition ratios in final energy consumption by fuel type in the industrial sector ... Figure 2-11 IIP increases in manufacturing in

- Parts of the foregoing machinery, apparatus or equipment Plates, cylinders and other printing components; plates, cylinders and lithographic stones, prepared for printing purposes

Amount of Remuneration, etc. The Company does not pay to Directors who concurrently serve as Executive Officer the remuneration paid to Directors. Therefore, “Number of Persons”

 The concentration of radioactive materials in ALPS treated water (tritium, 62 radionuclides and C-14) shall be measured and assessed prior to dilution and discharge, and the
