[BC17 04 B] EIC301 sensor light pic12f1822

N/A
N/A
Protected

Academic year: 2018

シェア "[BC17 04 B] EIC301 sensor light pic12f1822"

Copied!
3
0
0

読み込み中.... (全文を見る)

全文

(1)

A

A

150Ω

茶緑茶金

部品

A

-+4.5V PIC

12F1822

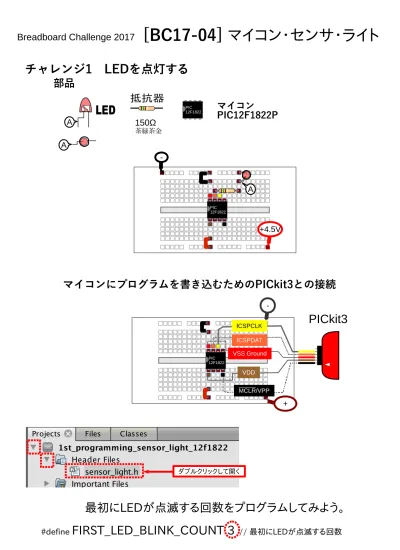

Breadboard Challenge 2017

[

BC17-

04]

マイコン・センサ・ライト

チャレンジ1 LEDを点灯する

PIC 12F1822

マイコン

PIC12F1822P

マイコンにプログラムを書き込むためのPICkit3との接続

+

-PIC 12F1822

最初にLEDが点滅する回数をプログラムしてみよう。

#define FIRST_LED_BLINK_COUNT 3 // 最初にLEDが点滅する回数

ダブルクリックして開く

PICkit3

ICSPCLK

ICSPDAT

VSS Ground

VDD

(2)

A

-+4.5V PIC

12F1822 E

E

100kΩ

茶黒黄金

部品

Breadboard Challenge 2017

[

BC17-

04]

マイコン・センサ・ライト

チャレンジ2 明るさのセンサをつける

E

LEDが光り始める明るさを調整してみよう

#define SENSOR_PARAMETER 220

// 明るさセンサの感度 数値が大きいほど明るくても反応しやすくなる

暗くなってからLEDが光る時間を調整してみよう

#define TIMER_SECOND 20 // 暗くなってからLEDが点灯し、消えるまでの時間(秒数)

LEDが暗くなったり明るくなったりする時間を調整してみよう

(3)

A

-+4.5V PIC

12F1822

E

部品

Breadboard Challenge 2017

[

BC17-

04]

マイコン・センサ・ライト

チャレンジ3 ブザーをつける

ブザーを調整してみよう

#define BUZ_LENGTH 1000 // ブザーのなる長さ
