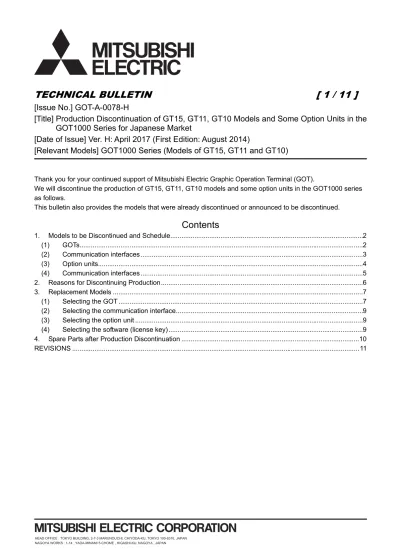

[Title] Production Discontinuation of GT15, GT11, GT10 Models and Some Option Units in the
GOT1000 Series for Japanese Market
[Date of Issue] Ver. H: April 2017 (First Edition: August 2014)
[Relevant Models] GOT1000 Series (Models of GT15, GT11 and GT10)
Thank you for your continued support of Mitsubishi Electric Graphic Operation Terminal (GOT).
We will discontinue the production of GT15, GT11, GT10 models and some option units in the GOT1000 series
as follows.
This bulletin also provides the models that were already discontinued or announced to be discontinued.
Contents
1.
Models to be Discontinued and Schedule ... 2
(1) GOTs
... 2
(2)
Communication interfaces ... 3
(3) Option units... 4
(4)
Communication interfaces ... 5
2.
Reasons for Discontinuing Production ... 6
3. Replacement Models ... 7
(1) Selecting the GOT ... 7
(2)
Selecting the communication interface ... 9
(3)
Selecting the option unit ... 9
(4)
Selecting the software (license key) ... 9
4.
Spare Parts after Production Discontinuation ... 10
1. Models to be Discontinued and Schedule
(1) GOTs
Product
Model *1*2
Transition to
made-to-order
production
Order
acceptance
Production
discontinuation
Repair
acceptance
GT1595 GT1595-XTBA - Through November
30, 2012 December 31, 2012
Through December 31, 2019
GT1595-XTBD
GT1585
GT1585V-STBA
February 28, 2015 Through February
29, 2016 March 31, 2016
Through March 31, 2023 GT1585V-STBD GT1585-STBA GT1585-STBD GT157□ GT1575V-STBA GT1575V-STBD GT1575-STBA GT1575-STBD GT1575-VTBA GT1575-VTBD GT1575-VNBA GT1575-VNBD GT1572-VNBA GT1572-VNBD GT156□ GT1565-VTBA GT1565-VTBD GT1562-VNBA GT1562-VNBD GT155□
GT1555-VTBD March 1, 2016 Through March
31, 2017 April 30, 2017
Through April 30, 2024 GT1555-QTBD September 1, 2015 Through September
30, 2016 October 31, 2016
Through October 31, 2023 GT1555-QSBD GT1550-QLBD GT115□ GT1155-QTBDA
January 10, 2014 Through December
31, 2014 January 31, 2015
Through January 31, 2022 GT1155-QSBDA GT1150-QLBDA GT1155-QTBDQ September 1, 2015 Through September
30, 2016 October 31, 2016
Through October 31, 2023 GT1155-QSBDQ GT1150-QLBDQ GT1155-QTBD GT1155-QSBD GT1150-QLBD GT11 Handy GOT GT1155HS-QSBD GT1150HS-QLBD
GT105□ GT1055-QSBD September 1, 2016
Through September
30, 2017 October 31, 2017
Through October 31, 2024 GT1050-QBBD
GT104□ GT1045-QSBD September 1, 2015 Through September 30, 2016 October 31, 2016 Through October 31, 2023 GT1040-QBBD GT1030 GT1030-HBD September 1, 2016 Through September
30, 2017 October 31, 2017
Product
Model *1*2
Transition to
made-to-order
production
Order
acceptance
Production
discontinuation
Repair
acceptance
GT1020
GT1020-LBD
September 1, 2015
Through September
30, 2016 October 31, 2016
Through October 31, 2023 GT1020-LBD2
GT1020-LBL GT1020-LBDW GT1020-LBDW2 GT1020-LBLW GT1020-LWD GT1020-LWD2 GT1020-LWL GT1020-LWDW GT1020-LWDW2 GT1020-LWLW
*1 The listed model names may be abbreviations for the actual ones.
*2 For information on production discontinuation of GT1030-L***, refer to the following.
➟ "Production Discontinuation of GT1030-L*** series" (HIME-T-P-0072)
(2) Communication interfaces
Product
Model *1
Transition to
made-to-order
production
Order
acceptance
Production
discontinuation
Repair
acceptance
Bus connection unit (for QnA/ACPU bus connection)
GT15-75ABUSL
January 10, 2014 Through December
31, 2014 January 31, 2015
Through January 31, 2022 GT15-75ABUS2L
GT15-ABUS GT15-ABUS2 Bus connector
conversion box A7GT-CNB Ethernet
communication unit GT15-J71E71-100 March 1, 2016
Through March
31, 2017 April 30, 2017
Through April 30, 2024 MELSECNET/10
communication unit, optical loop
GT15-75J71LP23-Z
- Through February
28, 2011 March 31, 2011
Through March 31, 2018
MELSECNET/10 communication unit, coaxial bus
GT15-75J71BR13-Z
CC-Link
communication unit, intelligent device station
GT15-75J61BT13-Z
(3) Option units
Product
Model *1
Transition to
made-to-order
production
Order
acceptance
Production
discontinuation
Repair
acceptance
RGB input unit GT15V-75R1
January 10, 2014 Through December
31, 2014 January 31, 2015
Through January 31, 2022 Video/RGB input
unit GT15V-75V4R1
Video input unit GT15V-75V4
February 28, 2015 Through February
29, 2016 March 31, 2016
Through March 31, 2023
RGB output unit GT15V-75ROUT
Fingerprint unit GT15-80FPA - Through February
28, 2011 March 31, 2011
Through March 31, 2018
Option function board
GT15-FNB
March 1, 2016 Through March
31, 2017 April 30, 2017
Through April 30, 2024 GT15-QFNB GT15-QFNB16M GT15-QFNB32M GT15-QFNB48M GT15-MESB48M
GT11-50FNB September 1, 2015 Through September
30, 2016 October 31, 2016
Through October 31, 2023
Backlight *2
GT16-90XLTT
- Through January
31, 2014 March 31, 2014
Through March 31, 2021 GT16-80SLTT GT16-70SLTT GT16-70VLTT GT16-70VLTTA GT16-70VLTN GT16-60SLTT GT16-60VLTT GT16-60VLTN
GT15-90XLTT - Through November 30, 2012 December 31, 2012 Through December 31, 2019 GT15-80SLTT
February 28, 2015 Through February
29, 2016 March 31, 2016
Through March 31, 2023 GT15-70SLTT GT15-70VLTT GT15-70VLTN GT15-60VLTT GT15-60VLTN
Protective sheet *2
GT15-90PSCB
- Through November
30, 2012 December 31, 2012
Through December 31, 2019 GT15-90PSGB GT15-90PSCW GT15-90PSGW GT15-80PSCB
February 28, 2015 Through February
29, 2016 March 31, 2016
Through March 31, 2023 GT15-80PSGB GT15-80PSCW GT15-80PSGW GT15-70PSCB GT15-70PSGB GT15-70PSCW GT15-70PSGW GT15-60PSCB GT15-60PSGB GT15-60PSCW GT15-60PSGW GT15-50PSCB
March 1, 2016 Through March
31, 2017 April 30, 2017
Through April 30, 2024 GT15-50PSGB
Product
Model *1
Transition to
made-to-order
production
Order
acceptance
Production
discontinuation
Repair
acceptance
Protective sheet *2
GT11-50PSCB
September 1, 2015
Through September
30, 2016 October 31, 2016
Through October 31, 2023 GT11-50PSGB GT11-50PSCW GT11-50PSGW GT11H-50PSC GT10-50PSCB September 1, 2016 Through September
30, 2017 October 31, 2017
Through October 31, 2024 GT10-50PSGB GT10-50PSCW GT10-50PSGW GT10-40PSCB September 1, 2015 Through September
30, 2016 October 31, 2016
Through October 31, 2023 GT10-40PSGB GT10-40PSCW GT10-40PSGW GT10-30PSCB September 1, 2016 Through September
30, 2017 October 31, 2017
Through October 31, 2024 GT10-30PSGB GT10-30PSCW GT10-30PSGW GT10-20PSCB September 1, 2015 Through September
30, 2016 October 31, 2016
Through October 31, 2023 GT10-20PSGB GT10-20PSCW GT10-20PSGW GT11-50PSCB-C Protective cover for
oil GT10-40PCO
USB environmental protection cover *2
GT15-UCOV February 28, 2015 Through February
29, 2016 March 31, 2016
Through March 31, 2023
GT11-50UCOV March 1, 2016 Through March
31, 2017 April 30, 2017
Through April 30, 2024
Memory card, CF card *3
GT05-MEM-16MC - Through August 31,
2005 August 2005
Through August 31, 2012
GT05-MEM-32MC
- Through November
30, 2008 November 2008
Through November 30, 2015 GT05-MEM-64MC Multi-color display board GT15-XHNB
February 28, 2015 Through February
29, 2016 March 31, 2016
Through March 31, 2023
GT15-VHNB Emergency stop sw
guard cover GT11H-50ESCOV September 1, 2015
Through September 30, 2016
October 31, 2016 Through October 31, 2023 Memory loader GT10-LDR September 1,
2016
Through September
30, 2017 October 31, 2017
Through October 31, 2024 Memory board GT10-50FMB
*1 The listed model names may be abbreviations for the actual ones. *2 Refer to Section 4.
*3 For the details, refer to the following technical bulletin.
➟ "Production Discontinuation of GOT1000 Series CF Card" (GOT-A-0006)
(4) Communication interfaces
Product
Model
Transition to
made-to-order
production
Order
acceptance
Production
discontinuation
Repair
acceptance
License key for GT SoftGOT1000 (for parallel port)
GT15-SGTKEY-P - Through June 30,
2011 July 31, 2011
2. Reasons for Discontinuing Production
Along with finer design rules and growing environmental awareness in recent years, we have difficulty in
procuring some conventional parts of the GOT, such as semiconductor parts (microcomputers, memories,
ASICs, etc.), STN LCDs, and LCDs with CCFL backlight. As technology progresses, procuring
3. Replacement
Models
(1) Selecting the GOT
The following table shows the replacement models. For the details, refer to the following technical bulletin.
➟
"Precautions when Replacing GOT1000 Series with GOT2000 Series" (GOT-A-0061)
GOT1000 Series
Recommended replacement
GOT2000/GOT1000 Series
Panel cutting
compatibility
○
: Compatible
×: Incompatible
Applicable
software
GT Designer3
(GOT2000)
GT15
GT1595
GT1595-XTBA
(Discontinued) GT2715-XTBA ○ *3 Ver.1.112S or later GT1595-XTBD
(Discontinued) GT2715-XTBD ○ *3 Ver.1.112S or later
GT1585
GT1585V-STBA
GT2712-STBA *4
GT2712-STWA *1*4 ○ *3 Ver.1.100E or later GT2512-STBA *5 ○ *3 Ver.1.122C or later
GT1585V-STBD
GT2712-STBD *4
GT2712-STWD *1*4 ○ *3 Ver.1.100E or later GT2512-STBD *5 ○ *3 Ver.1.122C or later
GT1585-STBA
GT2712-STBA *4
GT2712-STWA *1*4 ○ *3 Ver.1.100E or later GT2512-STBA *5 ○ *3 Ver.1.122C or later
GT1585-STBD
GT2712-STBD *4
GT2712-STWD *1*4 ○ *3 Ver.1.100E or later GT2512-STBD *5 ○ *3 Ver.1.122C or later
GT157□
GT1575V-STBA GT2710-STBA *4 ○ *3 Ver.1.100E or later GT1575V-STBD GT2710-STBD *4 ○ *3 Ver.1.100E or later GT1575-STBA GT2710-STBA *4 ○ *3 Ver.1.100E or later GT1575-STBD GT2710-STBD *4 ○ *3 Ver.1.100E or later
GT1575-VTBA
GT2710-VTBA *4
GT2710-VTWA *1*4 ○ *3 Ver.1.100E or later GT2510-VTBA *5
GT2510-VTWA *1*5 ○ *3 Ver.1.112S or later
GT1575-VTBD
GT2710-VTBD *4
GT2710-VTWD *1*4 ○ *3 Ver.1.100E or later GT2510-VTBD *5
GT2510-VTWD *1*5 ○ *3 Ver.1.112S or later
GT1575-VNBA
GT2710-VTBA *4
GT2710-VTWA *1*4 ○ *3 Ver.1.100E or later GT2510-VTBA *2*5
GT2510-VTWA *1*2*5 ○ *3 Ver.1.112S or later
GT1575-VNBD
GT2710-VTBD *4
GT2710-VTWD *1*4 ○ *3 Ver.1.100E or later GT2510-VTBD *2*5
GT2510-VTWD *1*2*5 ○ *3 Ver.1.112S or later
GT1572-VNBA
GT2710-VTBA *4
GT2710-VTWA *1*4 ○ *3 Ver.1.100E or later GT2510-VTBA *2*5
GT2510-VTWA *1*2*5 ○ *3 Ver.1.112S or later
GT1572-VNBD
GT2710-VTBD *4
GT2710-VTWD *1*4 ○ *3 Ver.1.100E or later GT2510-VTBD *2*5
GT2510-VTWD *1*2*5 ○ *3 Ver.1.112S or later
GT156□
GT1565-VTBA
GT2708-VTBA *4 ○ *3 Ver.1.100E or later GT2508-VTBA *5
GT2508-VTWA *1*5 ○ *3 Ver.1.112S or later
GT1565-VTBD
GT2708-VTBD *4 ○ *3 Ver.1.100E or later GT2508-VTBD *5
GT2508-VTWD *1*5 ○ *3 Ver.1.112S or later
GT1562-VNBA
GT2708-VTBA *4 ○ *3 Ver.1.100E or later GT2508-VTBA *2*5
GT2508-VTWA *1*2*5 ○ *3 Ver.1.112S or later
GT1562-VNBD
GT2708-VTBD *4 ○ *3 Ver.1.100E or later GT2508-VTBD *2*5
GOT1000 Series
Recommended replacement
GOT2000/GOT1000 Series
Panel cutting
compatibility
○
: Compatible
×: Incompatible
Applicable
software
GT Designer3
(GOT2000)
GT15 GT155□
GT1555-VTBD GT2705-VTBD *4*12 ○ *3 Ver.1.130L or later GT1555-QTBD GT1455-QTBD□ *5*7*8 ○ GT Designer3 Ver.1.37P or later GT1555-QSBD GT1455-QTBD□ *5*6*7*8 ○ GT Designer3
Ver.1.37P or later GT1550-QLBD GT1450-QMBD□ *5*7*8 ○ Ver.1.118Y or later
GT11
GT115□
GT1155-QTBDA GT1455-QTBD□ *5*6*7*18 ○ GT Designer3 Ver.1.37P or later GT1155-QSBDA GT1455-QTBD□ *5*6*7*18 ○ GT Designer3
Ver.1.37P or later GT1150-QLBDA GT1450-QMBD□ *5*7*18 ○ Ver.1.118Y or later GT1155-QTBDQ GT1455-QTBD□ *5*6*7*9 ○ GT Designer3
Ver.1.37P or later GT1155-QSBDQ GT1455-QTBD□ *5*6*7*9 ○ GT Designer3
Ver.1.37P or later GT1150-QLBDQ GT1450-QMBD□ *5*7*9 ○ Ver.1.118Y or later GT1155-QTBD GT1455-QTBD□ *5*6*7 ○ GT Designer3 Ver.1.37P or later
GT1155-QSBD GT1455-QTBD□ *5*6*7 ○ GT Designer3
Ver.1.37P or later GT1150-QLBD GT1450-QMBD□ *5*7 ○ Ver.1.118Y or later
GT11 Handy GOT
GT1155HS-QSBD GT1455HS-QTBDE *5*6 ○ GT Designer3 Ver.1.71Z or later
GT1150HS-QLBD GT1450HS-QMBDE *5 ○ GT Designer3
Ver.1.71Z or later
GT10
GT105□ GT1055-QSBD GT2105-QTBDS *5*15 ○ Ver.1.144A or later GT1050-QBBD GT2105-QMBDS *5*15 ○ Ver.1.144A or later GT104□ GT1045-QSBD GT2104-RTBD *5*15 × *11 Ver.1.122C or later
GT1040-QBBD × *11 Ver.1.122C or later
GT1030
GT1030-HBD GT2104-PMBDS *5*16 ○ Ver.1.131M or later GT1030-HBD2 GT2104-PMBDS2 *5*16 ○ Ver.1.137T or later GT1030-HBL GT2104-PMBLS *5*17 ○ Ver.1.137T or later GT1030-HWD GT2104-PMBDS *5*16 ○ Ver.1.131M or later GT1030-HWD2 GT2104-PMBDS2 *5*16 ○ Ver.1.137T or later GT1030-HWL GT2104-PMBLS *5*17 ○ Ver.1.137T or later GT1030-HBDW GT2104-PMBDS *5*16 ○ Ver.1.131M or later GT1030-HBDW2 GT2104-PMBDS2 *5*16 ○ Ver.1.137T or later GT1030-HBLW GT2104-PMBLS *5*17 ○ Ver.1.137T or later GT1030-HWDW GT2104-PMBDS *5*16 ○ Ver.1.131M or later GT1030-HWDW2 GT2104-PMBDS2 *5*16 ○ Ver.1.137T or later GT1030-HWLW GT2104-PMBLS *5*17 ○ Ver.1.137T or later
GT1020
GT1020-LBD GT2103-PMBDS *13 ○ Ver.1.112S or later
GT1020-LBD2 GT2103-PMBDS2 *13 ○ Ver.1.119Z or later
GT1020-LBL GT2103-PMBLS *14 ○ Ver.1.119Z or later
GT1020-LBDW GT2103-PMBDS *13 ○ Ver.1.112S or later GT1020-LBDW2 GT2103-PMBDS2 *13 ○ Ver.1.119Z or later GT1020-LBLW GT2103-PMBLS *14 ○ Ver.1.119Z or later
GT1020-LWD GT2103-PMBDS *13 ○ Ver.1.112S or later
GT1020-LWD2 GT2103-PMBDS2 *13 ○ Ver.1.119Z or later
GT1020-LWL GT2103-PMBLS *14 ○ Ver.1.119Z or later
GT1020-LWDW GT2103-PMBDS *13 ○ Ver.1.112S or later GT1020-LWDW2 GT2103-PMBDS2 *13 ○ Ver.1.119Z or later GT1020-LWLW GT2103-PMBLS *14 ○ Ver.1.119Z or later *1 This model has a white front panel. For the details, refer to the following technical bulletin.
➟ "Precautions when Replacing GOT1000 Series with GOT2000 Series" (GOT-A-0061)
*2 The display color specification is changed to 65536 colors since the GOT2000 series does not support the 4096-, 256-, or 16-color specification. Note that the price range differs. For the details, refer to the following catalog.
*4 Although the display section is changed from a matrix-resistive touch panel to an analog-resistive touch panel, the 2-point press is available.
However, note the precautions for arranging touch switches. For the details, refer to the following technical bulletin.
➟ "Precautions when Replacing GOT1000 Series with GOT2000 Series" (GOT-A-0061)
*5 The display section is changed from a matrix-resistive touch panel to an analog-resistive touch panel. The 2-point press is unavailable. *6 The 65536-color specification is used for GT14 models since the GOT2000 series does not support the 4096-color or 256-color
specification.
*7 The GT1455-QTBDE and GT1450-QMBDE support the Ethernet connection.
*8 For GT14 models, a communication unit or option unit is not usable. To use a communication unit or option unit, consider replacing the GOT with the GT2705-VTBD.
*9 To connect a QCPU (Q mode) by the bus connection, consider replacing the GOT with the GT2705-VTBD.
*11 The panel cutting dimensions are changed from 130(5.11) × 103(4.05) mm(inch) to 118(4.65) × 92(3.63) mm(inch). Applicable attachments will be released in July 2016.
*12 Use an SD card instead of a CF card.
*13 The memory loader (GT10-LDR) is not usable. Use the SD card unit (GT21-03SDCD) and an SD card.
*14 The memory loader (GT10-LDR) is not usable. To use the memory loader, consider replacing the GOT and memory loader with GT2103-PMBDS and SD card unit (GT21-03SDCD) and SD card.
*15 The memory board (GT10-50FMB) is not usable. Use an SD card. *16 The memory loader (GT10-LDR) is not usable. Use an SD card.
*17 The memory loader (GT10-LDR) is not usable. To use the memory loader, consider replacing the GOT and memory loader with the GT2104-PMBDS and SD card.
*18 To connect an ACPU or QCPU (A mode) by the bus connection, consider replacing the GOT with the GT2705-VTBD.
(2) Selecting the communication interface
For the details, refer to the following technical bulletin.
➟
"Precautions when Replacing GOT1000 Series with GOT2000 Series" (GOT-A-0061)
(3) Selecting the option unit
To use an alternative to the RGB input unit (GT15V-75R1) , video/RGB input unit (GT15V-75V4R1) , video input
unit (GT15V-75V4) or RGB output unit (GT15V-75ROUT), replace the GOT with a GOT2000 series model. For
the details, refer to the following technical bulletin.
➟
"Precautions when Replacing GOT1000 Series with GOT2000 Series" (GOT-A-0061)
"Information and precautions on replacing GOT1000 with GOT2000 (GT10 model
→
GT21
model)" (HIME-T-P-0137)
(4) Selecting the software (license key)
For the details, refer to the following technical bulletin.
4. Spare Parts after Production Discontinuation
After production discontinuation, you can purchase the following options as spare parts from Mitsubishi
Electric System & Service Co., Ltd. until the expiry of repair acceptance. Please contact the company.
Product
Model
Remarks
Backlight
GT16-90XLTT - GT16-80SLTT - GT16-70SLTT - GT16-70VLTT - GT16-70VLTTA - GT16-70VLTN - GT16-60SLTT - GT16-60VLTT - GT16-60VLTN - GT15-90XLTT - GT15-80SLTT - GT15-70SLTT - GT15-70VLTT - GT15-70VLTN - GT15-60VLTT - GT15-60VLTN -
Protective sheet
Product
Model
Remarks
Protective sheet
GT10-20PSCB - GT10-20PSGB - GT10-20PSCW - GT10-20PSGW - GT11-50PSCB-C -
USB environmental protection cover GT15-UCOV -
GT11-50UCOV -
Protective cover for oil GT10-40PCO -
Emergency stop switch guard cover GT11H-50ESCOV -
REVISIONS
Version
Print Date
Revision
- August 2014 - First edition
A September 2014 - Changed the title of the document. B February 2015 - Discontinued models added C May 2015 - Discontinued models added D June 2015 - Writing errors have been corrected. E June 2015 - Discontinued models added F March 2016 - Discontinued models added G June 2016 - Some corrections
