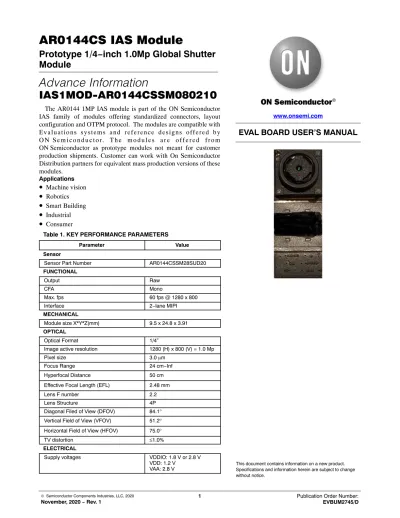

Prototype 1/4 −inch 1.0Mp Global Shutter Module
Advance Information
IAS1MOD-AR0144CSSM080210
The AR0144 1MP IAS module is part of the ON Semiconductor IAS family of modules offering standardized connectors, layout configuration and OTPM protocol. The modules are compatible with Evaluations systems and reference designs offered by O N S e m i c o n d u c t o r. T h e m o d u l e s a r e o ff e r e d f r o m ON Semiconductor as prototype modules not meant for customer production shipments. Customer can work with On Semiconductor Distribution partners for equivalent mass production versions of these modules.
Applications
• Machine vision
• Robotics
• Smart Building
• Industrial
• Consumer
Table 1. KEY PERFORMANCE PARAMETERS
Parameter Value
Sensor
Sensor Part Number AR0144CSSM28SUD20
FUNCTIONAL
Output Raw
CFA Mono
Max. fps 60 fps @ 1280 x 800
Interface 2−lane MIPI
MECHANICAL
Module size X*Y*Z(mm) 9.5 x 24.8 x 3.91 OPTICAL
Optical Format 1/4”
Image active resolution 1280 (H) x 800 (V) = 1.0 Mp
Pixel size 3.0 m m
Focus Range 24 cm~Inf
Hyperfocal Distance 50 cm
Effective Focal Length (EFL) 2.48 mm
Lens F number 2.2
EVAL BOARD USER’S MANUAL
www.onsemi.com
www.onsemi.com 2
Table 1. KEY PERFORMANCE PARAMETERS
Parameter Value
ELECTRICAL
I2C Pull−up Resistor in Module (Note 1) 2.2k PROGRAMMABLE STORAGE
This module has programmable storage. EEPROM/OTPM is programed per IAS programming specifications.
Please refer to the IAS Module EEPROM and OTPM Application note (AND9865/D) for more information.
1. ON Semiconductor recommends that host sites add a 1.5K pull−up resistor.
Table 2. ORDERING INFORMATION
Part Number Orderable Product Attribute Description
IAS1MOD−AR0144CSSM080210−GEVB AR0144 1MP 1/4” Mono 28° CRA Die in IAS module with 84.1° DFOV Lens IAS1−ADPTR−DM3D1−GEVB Adapter Board to Demo3, DevWareX Supported
Table 3. MODULE CONNECTOR PINOUT
Pin Number Pin Name Pin Number Pin Name
1 VPP 34 SADDR
2 GND 33 GND
3 GND 32 EXTCLK
4 DATA_1P 31 GND
5 DATA_1N 30 DATA_2P
6 GND 29 DATA_2N
7 CLK_P 28 GND
8 CLK_N 27 NC
9 GND 26 NC
10 NC 25 GND
11 NC 24 VDD
12 GND 23 VDD
13 VDDIO 22 SDATA
14 SCLK 21 RESET
15 FLASH 20 TRIGGER
16 GND 19 GND
17 VAA 18 VAA
Figure 1. Typical Connections
The connector pin 35,36,37 and 38 are fixed pin.
SCLK SDATA DATA_N DATA_P CLK_P CLK_N DATA2_P DATA2_N EXCLK
TRIGGER
GND GND
RESET
FLASH
EXCLK DATA2_P DATA2_N
VDDVDD SDATA RESET TRIGGER
VAA
GND
VPP
GND
GND
GND GND
VDDIO SCLK
GND SDATA
SADDR
SADDR
SCLK SDATA
SCLKFLASH VAA VPP DATA_P DATA_N CLK_P CLK_N
VDDIO
GND VAA
VDD VDDIO
VDD VDD_PHY
VDDIO
VAA
VAA_PIX
VDD_PHY VAA_PIX
VDDIO
J1
BM20B(08)−34DP−04V(51)
GPI3/SADDR/VDD_AF 34 GND 33 EXTCLK 32 GND 31 DATA2_P/SLVS1_P 30 DATA2_N/SLVS1_N 29 GND 28 DATA3_P/SLVS2_P 27 DATA3_N/SLVS2_N 26 GND 25 VDD 24 VDD 23 SDATA 22 RESET/XSHUTDOWN 21 GPI2/Trigger 20 GND 19 VAA 18 GPIO1/VDD_AF/VPP
1 2 GND 3 GND
DATA_P/SLVS0_P 4
DATA_N/SLVS0_N 5 6 GND
CLK_P 7
CLK_N 8 9 GND
DATA4_P/SLVS3_P 10
DATA4_N/SLVS3_N 11 12 GND
VDDIO 13 14 SCLK
GPIO0/Flash 15 16 GND 17 VAA 35 GND
36 GND GND 37
GND 38 U1
AR0144
EXCLK1 VDD2 DGND3 DATA1_N4 DATA1_P5 DGND6 CLK_N7 CLK_P8 VDD_PHY9 DATA0_P10 DATA0_N11 SHUTTER12 FLASH13 SDATA14 TEST15 SADDR16 VDD17 DGND18 VDD_IO19 SCLK20 OE_BAR 21 TRIGGER 22 VDD_IO 23 DGND 24 VDD 25 AGND 26 VPP27 VAA_PIX 28
VAA_PIX 29 ATEST 30 VAA 31 AGND 32 AGND 33 VAA 34 VDD 35 DGND 36 37 DGNDVDD
38 VAA 39 AGND 40 AGND 41 VAA 42 RESET_BAR 43 DOUT0 44 DOUT1 45 VDD 46 DGND 47 DOUT2 48 DOUT3 49 DOUT4 50 DOUT5 51 DOUT6 52 VDD_IO 53 DGND 54 DOUT7 55 DOUT8 56 DOUT9 57 DOUT10 58 DOUT11 59 VDD_IO 60 DGND 61 PIXCLK 62 LINE_VALID 63 FRAME_VALID 64 VDD 65 DGND 66 VDD_IO 67
C4 0402 10uF 6.3V
R2
0201 2.2K
R1
0201 2.2K
EEPROM U2 A1 VCC B1 SCL
VSS A2 SDA B2
C10 0402 10uF 6.3V C9
0201 2.2uF 6.3V
C6 0402 10uF 6.3V C5 0201 2.2uF 6.3V
C8 0402 10uF 6.3V C2
0402 10uF 6.3V
C7 0201 2.2uF 6.3V C3
0201 2.2uF 6.3V C1
0201 2.2uF 6.3V
www.onsemi.com 4
MODULE CONNECTOR
Part Number Number of Pins A B C
BM20B(0.8)−34DP−0.4V(51) 34 9.28 6.4 8.82
Figure 2.
MECHANICAL DIMENSIONS
NOTES:
1.SYMBOL*()ISTHECRITICALDIMENSION.
2.THEFPCBFINGERDIMENSIONSFOLLOWCONNECTORSPECIFICATION.
3.CONNECTOR:HRSBM20B(0.8)−34DP−0.4V(51)
4.SENSOR:ONSEMICONDUCTORAR−0144CS1MHDMONO.
5.LENS:EP−D432−F05 CYY37−0500−37AB−CB0623−2YMDD − xxyy CYY37−0500−37AB−CB0623−2 YMDD − xxyy
www.onsemi.com 1
