PIN Diode

72512 TKIM/62005KR MSIM/O1802 TSIM TA-100270/N0901 GIIM TA-3520/ No.4510-1/6

Semiconductor Components Industries, LLC, 2013

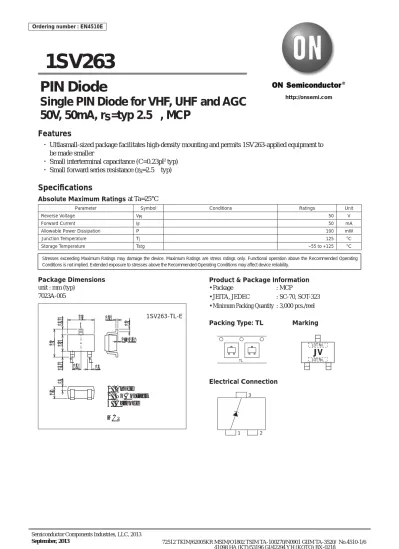

1SV263

PIN Diode

Single PIN Diode for VHF, UHF and AGC 50V, 50mA, rs=typ 2.5Ω , MCP

Stresses exceeding Maximum Ratings may damage the device. Maximum Ratings are stress ratings only. Functional operation above the Recommended Operating Conditions is not implied. Extended exposure to stresses above the Recommended Operating Conditions may affect device reliability.

Features

•

Ultlasmall-sized package facilitates high-density mounting and permits 1SV263-applied equipment to be made smaller

•

Small interterminal capacitance (C=0.23pF typ)

•

Small forward series resistance (rs=2.5Ω typ)

Specifi cations

Absolute Maximum Ratings at Ta=25°C

Parameter Symbol Conditions Ratings Unit

Reverse Voltage VR 50 V

Forward Current IF 50 mA

Allowable Power Dissipation P 100 mW

Junction Temperature Tj 125 °C

Storage Temperature Tstg --55 to +125 °C

Package Dimensions unit : mm (typ)

7023A-005

Product & Package Information

• Package : MCP

• JEITA, JEDEC : SC-70, SOT-323

• Minimum Packing Quantity : 3,000 pcs./reel

Packing Type: TL Marking

Electrical Connection

JV

LOT No.

LOT No.

3

1 2

TL

1 : Anode 2 : No Contact 3 : Cathode MCP

3

1 2

2.0 0.4250.4250.3

0.65 2.10.9 1.25

0.3

0.2

0 to 0.08

0.15

1SV263-TL-E

Electrical Characteristics at Ta=25°C

Parameter Symbol Conditions Ratings

min typ max Unit

Reverse Voltage VR IR=10μA 50 V

Reverse Current IR VR=50V 0.1 μA

Forward Voltage VF IF=50mA 0.91 0.95 V

Interterminal Capacitance C VR=50V, f=1MHz 0.23 0.4 pF

Series Resistance rs IF=5mA, f=100MHz 4.0 8.0 Ω

IF=10mA, f=100MHz 2.5 4.5 Ω

Ordering Information

Device Package Shipping memo

1SV263-TL-E MCP 3,000pcs./reel Pb Free

IF -- VF

5

C -- VR

1.0 °

IR -- VR

rs -- IF

Re v erse Current, I R -- nA Series Resistance, r s --

rs -- f

Series Resistance, r s --

Reverse Voltage, VR -- V

Forward Current, IF -- mA

3 5 7

2

0.01

3 5 2 7 3 5 2 7 3 5 2 7

1.0 10 100 2 1k 0.1 3 5 7

2 1.0 3 5 7

2 10

3 5

2

30 10

0

0.01 2 3 5 70.1 2 3 5 71.0 2 3 5 7 10

20 40 50 60

ID00069

1.0

1.0 2 3 5 7 10 2 3 5 7 100 2 3 5 71000 2

Frequency, f -- MHz

2 3 5 7 10 2 3 5 7 100 2 3 5 7 1k 2 3 5

ID00070

ID00071

Ta=25

C f=100MHz

IF=10μA Ta=75°^C

50°C

25°C

Ta=25

C

100μA

10mA

5mA

Embossed Taping Specifi cation

1SV263-TL-E

Outline Drawing Land Pattern Example 1SV263-TL-E

Mass (g) Unit 0.006

* For reference mm

Unit: mm

0.65 0.65

2.1

0.7

1.0
