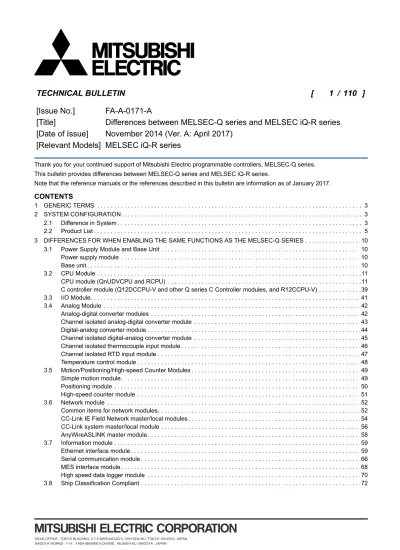

[Issue No.]
FA-A-0171-A
[Title]
Differences between MELSEC-Q series and MELSEC iQ-R series
[Date of Issue]
November 2014 (Ver. A: April 2017)
4 SPECIFICATIONS AND FUNCTIONS DIFFERENCES BETWEEN THE MELSEC-Q SERIES AND
THE MELSEC iQ-R SERIES. . . 73
4.1
Power Supply Module and Base Unit . . . 73
Power supply module . . . 73
Base unit . . . 73
4.2
CPU Module . . . 74
CPU modules (QnUDVCPU and RCPU) . . . 74
C Controller module . . . 79
4.3
I/O Module. . . 80
Input module . . . 80
Output module. . . 86
I/O combined module . . . 90
4.4
Analog Module . . . 91
Analog-digital converter modules . . . 91
Channel isolated analog-digital converter module . . . 92
Digital-analog converter module . . . 93
Channel isolated digital-analog converter module . . . 94
Channel isolated thermocouple input module . . . 94
Channel isolated RTD input module . . . 94
Temperature control module . . . 95
4.5
Motion/Positioning/High-speed Counter Module . . . 96
Positioning module . . . 96
High-speed counter module . . . 97
4.6
Network Module . . . 99
CC-Link IE Field Network master/local modules . . . 99
CC-Link system master/local module . . . 102
AnyWireASLINK master module . . . 103
4.7
Information Module . . . 104
Ethernet interface module . . . 104
Serial communication module . . . 107
MES interface module. . . 107
1
GENERIC TERMS
2
SYSTEM CONFIGURATION
2.1
Difference in System
This section describes the difference between the MELSEC-Q series and the MELSEC iQ-R series in the system
configuration.
: Available,
: Partially available,
: Not available
*1 The existing MELSEC-Q series system can be used with the use of the RQ extension base unit. For details, refer to the following manual.
MELSEC iQ-R Module Configuration Manual (SH-081262ENG)
*2 The existing MELSEC-A series system can be used with the use of the QA extension base unit. For details, refer to the following manual.
QCPU User's Manual (Hardware Design, Maintenance and Inspection) (SH-080483ENG)
*3 For GOT which is connectable to the MELSEC iQ-R series system and its connection type, refer to the following.
GOT2000 NEWS Vol.1 (L08301ENG-A) Generic term Description
RCPU A generic term for the R04CPU, R04ENCPU, R08CPU, R08ENCPU, R16CPU, R16ENCPU. R32CPU, R32ENCPU, R120CPU, and R120ENCPU
RnCPU A generic term for the R04CPU, R08CPU, R16CPU, R32CPU, and R120CPU
RnENCPU A generic term for the R04ENCPU, R08ENCPU, R16ENCPU, R32ENCPU, and R120ENCPU QnUDVCPU A generic term for the Q03UDVCPU, Q04UDVCPU, Q06UDVCPU, Q13UDVCPU, and Q26UDVCPU
Item MELSEC-Q series MELSEC iQ-R series
Overall system configuration Single CPU system
Multiple CPU system
Redundant system
Available module MELSEC iQ-R series module
MELSEC-Q series module *1 MELSEC-A series module *2
GOT Bus connection *3
Available network Ethernet
CC-Link IE Controller Network CC-Link IE Field Network CC-Link IE Field Network Basic
CC-Link
MELSECNET/H
AnyWire
Engineering software GX Works2 GX Developer
Installation environment
There is no difference in the general specifications of the entire system and the precautions for installation environment.
The MELSEC iQ-R series system can be installed in the same environment as the one for the MELSEC-Q series system.
Although their base units are different, their DIN rails can be used in common.
*1 For some module, the specifications may be different. For details, refer to the manual for the module used.
Example: When the extended temperature range base unit of the MELSEC iQ-R series is used, the upper limit of the operating ambient temperature is 60.
*2 For the RQ extension base unit, use the DIN rail adapter of the MELSEC-Q series.
*3 If the number of slots of the MELSEC-Q series base unit and the MELSEC iQ-R series base unit is same, their screw mounting position of the base unit installation holes is compatible.
Pay attention to the power capacity in selecting a model because the current consumption differs between
MELSEC iQ-R series and MELSEC-Q series modules.
Network configuration
The MELSEC iQ-R series module can access the MELSEC-Q series module via the network.
The MELSEC iQ-R series module and the MELSEC-Q series module can be used together in the same network.
For some module, the specifications may be different. For details, refer to the manual for the module used.
The available networks are as follows.
• Ethernet
• CC-Link IE Controller Network
• CC-Link IE Field Network
• CC-Link
• MELSECNET/H
• Serial communication
• AnyWire
Item MELSEC-Q series MELSEC iQ-R series
General specifications There is no difference in the general specifications of the entire system.*1 Restriction of installation
position
There is no difference in the general specifications of the entire system.
DIN rail DIN rail model TH35-7.5Fe, TH35-7.5Al, TH35-15Fe TH35-7.5Fe, TH35-7.5Al, TH35-15Fe DIN rail adapter Q6DIN1, Q6DIN2, Q6DIN3 R6DIN1
Q6DIN1*2, Q6DIN2*2
External dimensions
Base unit*3 • For Q35B
Height: 98mm, width: 245mm, depth: 44.1mm
• For main base unit R35B
Height: 101mm, width: 245mm, depth: 32.5mm • For RQ extension base unit RQ65B Height: 98mm, width: 245mm, depth: 44.1mm Power supply
module
• For Q61P
Height: 98mm, width: 55.2mm, depth: 90mm
• For R61P
Height: 106mm (base unit mounting side 98mm), width: 54.6mm, depth: 110mm
CPU module • For Q00UCPU
Height: 98mm, width: 27.4mm, depth: 89.3mm
• For RnCPU
2.2
Product List
This section provides the list of products that can be used in the MELSEC-Q series system and the MELSEC iQ-R series
system.
For details on the applicable modules in the MELSEC iQ-R series system, refer to the following.
MELSEC iQ-R Module Configuration Manual (SH-081262ENG)
Base unit and extension cable
*1 The DIN rail adapter to use differs depending on the base unit. ( MELSEC iQ-R Module Configuration Manual)
Item MELSEC-Q series MELSEC iQ-R series
Main base unit 3 slots Q33B
5 slots Q35B R35B
8 slots Q38B R38B
12 slots Q312B R312B
Extended temperature range main base unit
10 slots R310B-HT
Multiple CPU high speed main base unit
5 slots Q35DB
8 slots Q38DB 12 slots Q312DB
Slim type main base unit 2 slots Q32SB
3 slots Q33SB 5 slots Q35SB
Redundant power main base unit 8 slots Q38RB
10 slots R310RB
Extended temperature range redundant power supply main base unit
8 slots R38RB-HT
Extension base unit 3 slots Q63B
5 slots Q65B R65B, RQ65B
8 slots Q68B R68B, RQ68B
12 slots Q612B R612B, RQ612B 2 slots, power supply
module not required
Q52B
5 slots, power supply module not required
Q55B
Extended temperature range extension base unit
10 slots R610B-HT
Redundant power extension base unit
8 slots Q68RB
10 slots R610RB
Redundant type extension base unit
5 slots Q65WRB
Extended temperature range redundant power supply extension base unit
8 slots R68RB-HT
Extension cable 0.45m cable QC05B
0.6m cable QC06B RC06B
1.2m cable QC12B RC12B
3m cable QC30B RC30B
5m cable QC50B RC50B
10m cable QC100B
Power supply module
CPU module
Memory extension
*1 This device can be used only with RnCPU. It cannot be used with RnENCPU.
Item MELSEC-Q series MELSEC iQ-R series
Power supply module AC input Q61P R61P
Q62P R62P
Q64PN R64P
DC input Q63P R63P
Power supply with life detection AC input Q61P-D
Slim type power supply module AC input Q61SP
Redundant power supply module AC input Q64RPN R64RP
DC input Q63RP R63RP
Item MELSEC-Q series MELSEC iQ-R series
Programmable controller CPU Q00JCPU, Q00CPU, Q01CPU, Q02CPU, Q02HCPU, Q06HCPU, Q12HCPU, Q25HCPU
Q00UJCPU, Q00UCPU, Q01UCPU, Q02UCPU, Q03UDCPU, Q03UDECPU, Q04UDHCPU, Q04UDEHCPU, Q06UDHCPU, Q06UDEHCPU, Q10UDHCPU, Q10UDEHCPU, Q13UDHCPU, Q13UDEHCPU, Q20UDHCPU, Q20UDEHCPU, Q26UDHCPU, Q26UDEHCPU, Q50UDEHCPU, Q100UDEHCPU
Q03UDVCPU, Q04UDVCPU, Q06UDVCPU, Q13UDVCPU, Q26UDVCPU
R04CPU, R04ENCPU, R08CPU, R08ENCPU, R16CPU, R16ENCPU, R32CPU, R32ENCPU, R120CPU, R120ENCPU
Motion CPU Q172DSCPU, Q173DSCPU R16MTCPU, R32MTCPU, R64MTCPU C Controller module Q06CCPU-V, Q12DCCPU-V, Q24DHCCPU-V,
Q24DHCCPU-VG, Q24DHCCPU-LS
R12CCPU-V
Item MELSEC-Q series MELSEC iQ-R series
SD memory card L1MEM-2GBSD, L1MEM-4GBSD, NZ1MEM-2GBSD, NZ1MEM-4GBSD, NZ1MEM-8GBSD, NZ1MEM-16GBSD
L1MEM-2GBSD*1, L1MEM-4GBSD*1, NZ1MEM-2GBSD,
NZ1MEM-4GBSD, NZ1MEM-8GBSD, NZ1MEM-16GBSD Memory card Q2MEM-1MBS, Q2MEM-2MBS, 4MBS,
Q3MEM-4MBS-SET, Q3MEM-8MBS, Q3MEM-8MBS-SET, Q2MEM-8MBA, Q2MEM-16MBA, Q2MEM-32MBA
L1MEM-2GBSD*1, L1MEM-4GBSD*1, NZ1MEM-2GBSD,
NZ1MEM-4GBSD, NZ1MEM-8GBSD, NZ1MEM-16GBSD
Extended SRAM cassette 1MBS, 2MBS, 4MBS, Q4MCA-8MBS
I/O module
*1 This module is positive/negative common shared type.
*2 Setting the function selector switch (switch 2) at the bottom of the module to off (interrupt module) allows this module to be used as the interrupt module. For details, refer to the following.
I/O Module Type Building Block User's Manual (SH-080042)
*3 Setting [Interrupt setting] of the module parameter of the engineering tool allows every input module and I/O combined module to use the interrupt function. For details, refer to the following.
MELSEC iQ-R I/O Module User's Manual (SH-081247ENG)
Item Type MELSEC-Q series MELSEC iQ-R series
Input module AC input 100 to 120VAC QX10, QX10-TS RX10 100 to 240VAC QX28
DC input (positive common) 24VDC QX40, QX40-TS, QX40-S1, QX41, QX41-S1, QX41-S2, QX42, QX42-S1
RX40C7*1, RX41C4*1, RX42C4*1
DC input (negative common) 24VDC QX80, QX80-TS, QX81, QX81-S2, QX82, QX82-S1
DC input (positive/negative common)
24VDC RX40C7, RX41C4, RX42C4 5/12VDC QX70, QX71, QX72
DC high-speed input (positive common)
24VDC QX40H RX40PC6H, RX41C6HS*1 5VDC QX70H RX61C6HS*1
DC high-speed input (negative common)
24VDC QX80H RX40NC6H, RX41C6HS*1
5VDC QX90H RX61C6HS*1
DC high-speed input (positive/ negative common)
24VDC RX41C6HS
5VDC RX61C6HS
DC input/AC input 48VDC/AC QX50
Input with diagnostic functions 24VDC RX40NC6B Output module Relay output 24VDC, 240VAC QY10, QY10-TS, QY18A RY10R2
Triac output 100 to 240VAC QY22 RY20S6 Transistor output (sink type) 12 to 24VDC QY40P, QY40P-TS, QY41P, QY42P,
QY50
RY40NT5P, RY41NT2P, RY42NT2P
5 to 12VDC QY70, QY71
Transistor output (source type) 12 to 24VDC QY80, QY80-TS, QY81P, QY82P RY40PT5P, RY41PT1P, RY42PT1P Transistor high-speed output
(sink type)
5 to 24VDC QY41H RY41NT2H
Transistor high-speed output (source type)
5 to 24VDC RY41PT2H
Transistor output (all points independent)
5 to 24VDC QY68A
Output with diagnostic functions (source type)
24VDC RY40PT5B
I/O combined module
DC input/transistor output Input: 24VDC Output: 12 to 24VDC
QH42P, QX48Y57, QX41Y41P RH42C4NT2P
Interrupt module QI60
QX40H*2, QX70H*2, QX80H*2,
QX90H*2
Analog module
Motion/positioning/counter module
Item Type MELSEC-Q series MELSEC iQ-R series
Analog input module Voltage, current input Q64AD, Q64ADH R60AD4, R60ADH4 Voltage input Q68ADV R60ADV8 Current input Q68ADI R60ADI8
Channel isolated analog input module Voltage, current input Q64AD-GH, Q68AD-G R60AD8-G, R60AD16-G Current input Q62AD-DGH, Q66AD-DG
Analog output module Voltage, current output Q62DAN, Q64DAN, Q64DAH R60DA4 Voltage output Q68DAVN R60DAV8 Current output Q68DAIN R60DAI8 Channel isolated analog output
module
Voltage, current output Q62DA-FG, Q66DA-G R60DA8-G, R60DA16-G
Analog I/O module Voltage, current input/ output
Q64AD2DA
Load cell input module Q61LD
CT input module Q68CT
Temperature input module Thermocouple input Q64TD, Q64TDV-GH, Q68TD-G-H01, Q68TD-G-H02
R60TD8-G
RTD input Q64RD, Q64RD-G, Q68RD3-G R60RD8-G Temperature control module Thermocouple input Q64TCTTN, Q64TCTTBWN
RTD input Q64TCRTN, Q64TCRTBWN R60TCRT4, R60TCRT4BW Thermocouple input/RTD
input
R60TCTRT2TT2, R60TCTRT2TT2BW
Loop control module Q62HLC
Item Type MELSEC-Q series MELSEC iQ-R series
Simple motion module With CC-Link IE Field Network connectivity
QD77GF4, QD77GF8, QD77GF16 RD77GF4, RD77GF8, RD77GF16, RD77GF32
With SSCNET III/(H) connectivity
QD77MS2, QD77MS4, QD77MS16 RD77MS2, RD77MS4, RD77MS8, RD77MS16
Positioning module Open collector output QD75P1(N), QD75P2(N), QD75P4(N), QD70P4, QD70P8
RD75P2, RD75P4
Differential output QD75D1(N), QD75D2(N), QD75D4(N), QD70D4, QD70D8
RD75D2, RD75D4
With SSCNET III connectivity
QD75MH1, QD75MH2, QD75MH4, QD74MH8, QD74MH16
With SSCNET connectivity QD75M1, QD75M2, QD75M4 Built-in counter function QD72P3C3 High-speed counter module DC input sink output QD62 RD62P2
DC input source output QD62E RD62P2E Differential input sink
output
QD62D RD62D2
Multi-channel high-speed counter
QD63P6
For 4Mpps QD64D2
Multi-function counter/ timer module
QD65PD2
Network module
*1 This module can be connected to CC-Link IE Controller Network or CC-Link IE Field Network according to the setting in the engineering tool. For details, refer to the following.
MELSEC iQ-R Ethernet/CC-Link IE User's Manual (Startup) (SH-081256ENG)
MELSEC iQ-R Ethernet User's Manual (Application) (SH-081257ENG)
Information module
Blank cover
Battery
Item MELSEC-Q series MELSEC iQ-R series
CC-Link IE Controller Network module QJ71GP21-SX, QJ71GP21S-SX RJ71GP21-SX, RJ71EN71*1 CC-Link IE Field Network master/local
modules
QJ71GF11-T2 RJ71GF11-T2, RJ71EN71*1
CC-Link system master/local module QJ61BT11N RJ61BT11 CC-Link/LT master module QJ61CL12
AnyWireASLINK master module QJ51AW12AL RJ51AW12AL AnyWire DB A20 master module QJ51AW12D2
MELSECNET/H network module QJ71LP21-25, QJ71LP21S-25, QJ72LP25-25, QJ71LP21G, QJ71LP21GE, QJ72LP25G, QJ72LP25GE, QJ71BR11, QJ72BR15, QJ71NT11B
FL-net(OPCN-2) interface module QJ71FL71-T-F01, QJ71FL71-B2-F01, QJ71FL71-B5-F01 MODBUS interface module QJ71MB91
MODBUS/TCP interface module QJ71MT91
AS-i master module QJ71AS92
Item MELSEC-Q series MELSEC iQ-R series
Ethernet interface module QJ71E71-100, QJ71E71-B2, QJ71E71-B5 RJ71EN71
Serial communication module QJ71C24N, QJ71C24N-R2, QJ71C24N-R4 RJ71C24, RJ71C24-R2, RJ71C24-R4 MES interface module QJ71MES96 RD81MES96
High speed data logger module QD81DL96 RD81DL96 High speed data communication
module
QJ71DC96
Web server module QJ71WS96
Intelligent communication module QD51, QD51-R24
Item MELSEC-Q series MELSEC iQ-R series
Blank cover QG60 RG60
Item MELSEC-Q series MELSEC iQ-R series
3
DIFFERENCES FOR WHEN ENABLING THE SAME FUNCTIONS AS THE
MELSEC-Q SERIES
This chapter describes the differences from the MELSEC-Q series modules when using the MELSEC iQ-R series modules to
enable the same functions as the MELSEC-Q series.
For the differences of the specifications and functions including the newly added functions to the MELSEC iQ-R series
modules, refer to the following.
Page 73 SPECIFICATIONS AND FUNCTIONS DIFFERENCES BETWEEN THE MELSEC-Q SERIES AND THE
MELSEC iQ-R SERIES
3.1
Power Supply Module and Base Unit
This section describes the differences of power supply modules and base units between the MELSEC-Q series and the
MELSEC iQ-R series.
Power supply module
The following table summarizes the differences of power supply modules.
*1 For +24V and 24G terminal of R62P, the size is M3.5.
Base unit
The following table summarizes the differences of base units.
No. Item MELSEC-Q series MELSEC iQ-R series
1 Terminal block screw size M3.5 M4.0*1
No. Item MELSEC-Q series MELSEC iQ-R series
1 Extension level setting Set with a connector pin. Automatically recognized. 2 Extension cable connecting method Fixing screw Lock button
3 Operating ambient temperature 0 to 55 0 to 55 (when using a model other than R3B-HT and R6B-HT)
3.2
CPU Module
CPU module (QnUDVCPU and RCPU)
This section describes the differences between the QnUDVCPU and the RCPU.
For details on the RCPU instructions, refer to the following.
MELSEC iQ-R Programming Manual (Instructions, Standard Functions/Function Blocks) (SH-081266ENG)
For details on the functions and devices of the RCPU, refer to the following.
MELSEC iQ-R CPU Module User's Manual (Application) (SH-081264ENG)
QnUDVCPU projects created by using GX Works2 can be edited by "Open Other Format File" in GX Works3. For details on
GX Works3 "Open Other Format File", refer to the following.
GX Works3 Operating Manual (SH-081215ENG)
Instructions
No. Classification QnUDVCPU RCPU Reference
1 Basic instruction
Conversion from BIN 16-bit data to floating-point data (single precision)
FLT INT2FLT Page 13 FLT, FLTD, HEX, ASC, and other instructions 2 Conversion from BIN 32-bit data to floating-point data (single
precision)
DFLT DINT2FLT
3 Conversion from BIN 16-bit data to floating-point data (double precision)
FLTD INT2DBL
4 Conversion from BIN 32-bit data to floating-point data (double precision)
DFLTD DINT2DBL
5 Conversion from floating-point data to BIN 16-bit data (single precision)
INT FLT2INT
6 Conversion from floating-point data to BIN 32-bit data (single precision)
DINT FLT2DINT
7 Conversion from floating-point data to BIN 16-bit data (double precision)
INTD DBL2INT
8 Conversion from floating-point data to BIN 32-bit data (double precision)
DINTD DBL2DINT
13 Application instruction
Conversion from ASCII to hexadecimal BIN HEX ASC2INT Page 13 FLT, FLTD, HEX, ASC, and other instructions 14 Conversion from hexadecimal BIN to ASCII ASC INT2ASC
15 Square root operation for floating-point data (single precision) SQR ESQRT 16 Square root operation for floating-point data (double precision) SQRD EDSQRT 17 BCD 4-digit square roots BSQR BSQRT 18 BCD 8-digit square roots BDSQR BDSQRT
19 Ramp signal RAMP RAMPQ
20 16-bit data search SER SERDATA
21 32-bit data search DSER DSERDATA
22 BIN 16-bit data sort operations SORT SORTD 23 BIN 32-bit data sort operations DSORT DSORTD 24 Time data conversion (from hour/minute/second to second) SECOND TIME2SEC 25 Time data conversion (from second to hour/minute/second) HOUR SEC2TIME 26 Reading 2-word data from the intelligent function module DFRO DFROM
27 Reading device comment data COMRD Not supported Page 13 QCDSET, COMRD, S.SFCSCOMR, S.SFCTCOMR 28 File setting for comments QCDSET
29 Instruction to read SFC step comment S.SFCSCOMR 30 Instruction to read comment of SFC transition condition S.SFCTCOMR
31 High-speed block transfer of file register RBMOV BMOV
32 Select refresh COM (without execution condition)
COM (with execution condition)
Page 13 CCOM, COM
33 CCOM (with
execution condition)
34 Writing to host CPU shared memory TO/S.TO TO Page 13 S.TO 35 Reading module information UNIRD UNIINFRD Page 14 UNIRD 36 Interrupt disable DI (without
execution condition)
DI (with execution condition)
Page 15 DI, EI
37 Interrupt enable EI (without execution condition)
EI (with execution condition)
38 Subroutine calls between program files ECALL ECALL (Unicode specification)
Page 15 ECALL, EFCALL, PSTOP, POFF, SP.FREAD, SP.FWRITE 39 Subroutine output OFF calls between program files EFCALL EFCALL (Unicode
specification) 40 Program standby PSTOP PSTOP (Unicode
specification) 41 Program output OFF standby POFF POFF (Unicode
specification) 42 Program scan execution registration PSCAN PSCAN (Unicode
specification) 43 Reading data from designated file SP.FREAD SP.FREAD
(Unicode specification) 44 Writing data to designated file SP.FWRITE SP.FWRITE
(Unicode specification)
45 Trace set/reset TRACE Not supported Page 15 TRACE, TRACER
46 TRACER
■
FLT, FLTD, HEX, ASC, and other instructions
Instruction names differ between the QnUDVCPU and the RCPU.
Names of instructions for the RCPU are changed so that the data status before and after conversion can be easily understood
from the name.
■
QCDSET, COMRD, S.SFCSCOMR, S.SFCTCOMR
The RCPU does not support the QCDSET, COMRD, S.SFCSCOMR, and S.SFCTCOMR instructions.
Change the program so that a device comment is read and stored to the GOT. (Use a GOT connectable to the RCPU.)
■
CCOM, COM
The RCPU does not support the CCOM instruction. Use the COM instruction instead.
An execution condition is given to the COM instruction for the RCPU. Therefore, the instruction operates in the same way as
the CCOM instruction for the QnUDVCPU.
• Program (GX Works2)
• Program (GX Works3)
■
S.TO
The RCPU does not support the S.TO instruction. Use the TO instruction instead.
Since data are written at execution of the instruction, the completion device (D), which turns on for one scan upon completion
of the processing, is not provided for the TO instruction. If (D) is used in the MELSEC-Q series program, the program needs to
be corrected for the MELSEC iQ-R series.
In the program example below, M0 is the completion device (D).
• Program (GX Works2)
• Program (GX Works3)
Processing performed after data are written
■
UNIRD
The RCPU does not support the UNIRD instruction. Use the UNIINFRD instruction instead.
The UNIINFRD instruction reads module information in units of two words. If the module information (in units of one words)
read by using the UNIRD instruction is used in the MELSEC-Q series program, the program needs to be corrected for the
MELSEC iQ-R series.
• Program (GX Works2)
• Program (GX Works3)
· ·
D0
b15 b12 b0
Intelligent function module Power
supply module
CPU module
Input module
0000H 0010H Start I/O number
16 16 Number of points
Read the module information and store it to D0.
System configuration Module information
On: Module ready
On: Module mounted
Processing performed when the module is ready
· ·
D0
D1
b15 b2 b0
Intelligent function module Power
supply module
CPU module
Input module
0000H 0010H Start I/O number
16 16 Number of points
System configuration
Processing performed when the module is ready
Module information
On: Module ready
On: Module mounted Read the module
■
DI, EI
An execution condition is given to the DI and EI instructions for the RCPU.
For this reason, an instruction to skip the execution of these instructions, such as a jump instruction, is not required. To
execute these instructions every scan in the same way as those for the QnUDVCPU, set SM400 (Always ON) as an execution
condition.
• Program (GX Works2)
• Program (GX Works3)
■
ECALL, EFCALL, PSTOP, POFF, SP.FREAD, SP.FWRITE
For the QnUDVCPU, the character code that can be specified to the file name (string) of the argument was ASCII and Shift
JIS. However, for the RCPU, it is changed to Unicode. Therefore, if the file name is specified with the character string constant
of ASCII or Shift JIS, it needs to be changed to Unicode. When changing the character code to Unicode, use the SJIS2WS(P)
instruction.
■
TRACE, TRACER
Parameters
■
CPU module
For the RCPU, set parameters, such as I/O assignment setting, that are common to all the CPU modules in the multiple CPU
system in system parameter, and set parameters, such as program setting, that is specific to each CPU module in CPU
parameter. In addition, set unit parameters to use the built-in Ethernet function, and set memory card parameters to perform
boot operation.
• PLC parameter setting window and Write to PLC window (GX Works2)
No. Item QnUDVCPU RCPU Reference
1 CPU module PLC parameter (PARAM.QPA) • System parameter (SYSTEM.PRM) • CPU parameter (CPU.PRM) • Module parameter (UNIT.PRM)
• Memory card parameter (MEMCARD.PRM)
Page 16 CPU module
2 Intelligent function module
Intelligent function module parameter (IPARAM.QPA)
• System parameter setting window, CPU parameter setting window, and Write to PLC window (GX Works3)
■
Built-in Ethernet function: TCP (MELSOFT connection)/UDP (MELSOFT connection) setting
For the RCPU, set connection numbers. Set "MELSOFT Connection Module" in the connection number not used.
The open setting is not required when connecting the GOT or other external devices using UDP. (An automatic UDP port is
used.)
• Built-in Ethernet setting window of PLC parameter (GX Works2)
• Module parameter setting window (GX Works3)
■
Built-in Ethernet function: TCP connection setting of socket communications (TCP/IP connection)
For the RCPU, select "Active Connection Module", "Unpassive Connection Module", or "Fullpassive Connection Module" in
the Ethernet device setting, and then set "Socket Communication in "Communication Method".
• Built-in Ethernet setting window of PLC parameter (GX Works2)
■
Built-in Ethernet function: Broadcast communications setting of socket communications (UDP/IP
connection)
For the RCPU, select "UDP Connection Module", and then set "Broadcast Send" or "Broadcast Receive" in "Communication
Method".
• Built-in Ethernet setting window of PLC parameter (GX Works2)
■
Built-in Ethernet function: Time zone setting of time setting (SNTP client)
For the RCPU, set the time zone in "Clock Related Setting" of CPU parameter because the time zone can be set in the clock
data of the CPU module.
• Built-in Ethernet setting window of PLC parameter (GX Works2)
• Module parameter setting window (GX Works3)
• CPU parameter setting window (GX Works3)
■
Built-in Ethernet function: Setting for communications using the predefined protocol (predefined
protocol operating status storage device)
For the RCPU, check the predefined protocol operating status such as protocol execution status and protocol execution count
in the CPU buffer memory (U3En\G*).
Devices and files
This section describes the specifications differences of devices and files used in the QnUDVCPU and the RCPU.
■
Special relay (SM) and special register (SD)
Some of the SM/SD number assignments differ between the QnUDVCPU and the RCPU. Also, some SM/SD areas are used
for different purposes. If SM/SD is used in the MELSEC-Q series program, the program needs to be corrected for MELSEC
iQ-R series.
When the QnUDVCPU project created by using GX Works2 is edited by "Open Other Format File" in GX Works3, the SM/SD
areas that have not been replaced in advance are automatically converted to the corresponding SM/SD areas or CPU buffer
memory (U3En\G*) assigned to the RCPU. If the area is converted to the CPU buffer memory (U3En\G*), 'n' is fixed to CPU
No.1. Change 'n' to the corresponding number as needed (for CPU No.2 to No.4).
No. Item QnUDVCPU RCPU Reference
1 Special relay (SM) and special register (SD)
SM0 to SM2047/SD0 to SD2047 SM0 to SM4095/SD0 to SD4095 Page 21 Special relay (SM) and special register (SD)
2 Extended data register (D) and extended link register (W)
Extended data register (D) and extended link register (W)
N/A Page 24 Extended data register (D) and extended link register (W) 3 Local device M0, D0, and others (no distinction) #M0, #D0, and others (Described
with "#".)
Page 25 Local devices
4 File name ASCII Unicode Page 27 File name
No. Item QnUDVCPU RCPU
1 Diagnostic errors SD0 SD0
2 Clock time for diagnostic error occurrence SD1 to SD3 SD1 to SD7 (Latest self-diagnostics error time)*1
3 Error common information, error individual information
SM5, SM16 N/A
4 Error information categories, error common information, error individual information
SD4, SD5 to SD15, SD16 to SD26 SD80 to SD143 (Detailed information 1 and 2)*1
5 Error reset SD50, SM84, SD81 to SD85 N/A
6 Battery low SD51, SD52 N/A
7 IP packet transfer function related information SD180 to SD183 U3En\G310 to U3En\G313 8 Status of switch, LED status SD200, SD201 SD200, SD201
9 Operating status of CPU SD203 SD203 10 LED OFF command, LED display color, LED
display priority ranking
SM202, SD202, SD204, SD207 to SD209 N/A
11 PAUSE enable coil SM206 N/A
12 Clock data SD210 to SD213 SD210 to SD216*1
13 LED display data SD220 to SD227 N/A 14 Device range check inhibit flag SM237 N/A
15 Base mode SD240 N/A
16 Q series base unit connection status SD242 SD242 (Identification for whether or not Q series module can be mounted) 17 CPU No.'n' error flag SM244 to SM247 SM230 to SM233
18 All stations refresh command SM254 N/A
19 Device assignment SD282 to SD311 SD260 to SD309 20 Online change (SFC inactive block) SM329, SD329 N/A
21 Latch clear execution command SM339, SD339 N/A 22 Ethernet information SD340 to SD368 N/A
23 Multiple CPU system information SD393 to SD399 SD228 to SD233 24 Initial/minimum/maximum scan time, END
processing time, constant scan wait time, scan program execution time
SD522 to SD523, SD524 to SD525, SD526 to SD527, SD540 to SD541, SD542 to SD543, SD548 to SD549
SD518 to SD519, SD522 to SD523, SD524 to SD525, SD526 to SD527, SD528 to SD529, SD530 to SD531
26 Drive 2 capacity (unit: 1K byte or 1M byte) SD603, SD606, SD607 SD606, SD607 (SD memory card capacity (unit: 1K byte))
27 Memory card remove/insert enable flag SM609 N/A
28 Free space in drive 2 (unit: 1M byte) SD616, SD617 SD610, SD611 (SD memory card free space (unit: 1K byte))
29 Drive 3/4 related SM620 to SM624, SD620 N/A
30 Drive 3 capacity (unit: 1K byte) SD622 SD618, SD619 31 Drive 4 capacity (unit: 1K byte) SD623 SD622, SD623
32 Drive 3/4 use conditions SD624 SD614 (Drive 3 usage status), SD620 (Drive 4 usage status)
33 Directory batch delete SM638, SD638, SD639 N/A 34 File register information SM640, SD640 to SD647 N/A 35 File register block number SD648 SD312 36 Comment file information SM650, SD650 to SD656 N/A 37 Program memory/standard ROM write related
information
SM680 to SM682, SD681 to SD683, SM685 to SM687, SD686 to SD688
SM628 to SM630, SD629 to SD631, SM632 to SM634, SD633 to SD635
38 Specification of writing to standard ROM instruction count
SD695 SD771
39 Boot operation information SM660, SD660 to SD666 Not supported 40 Parameter enable drive information SD670 N/A
41 EI flag SM715 N/A
42 Block comparison SM716 to SM718 SM704
43 IMASK instruction mask pattern SD715 to SD717, SD781 to SD793 SD1400 to SD1415 44 File being accessed SM721 SM753
45 BIN/DBIN instruction error disabling flag SM722 SM754 46 SFC comment readout instruction in execution flag SM735 N/A 47 Scaling instruction search method setting SM750 SM755
48 PID bumpless processing, PID limit setting SM774, SD774, SD775 SM792, SD792, SD793
49 Accumulator SD718, SD719 N/A
50 Refresh processing selection when the COM instruction is executed
SD778 SD775
51 Auto logging SM841 N/A
52 Device information during "RAM ERROR" SD927, SD928 N/A
53 Remote password count SD979 to SD999 U3En\G320 to U3En\G340 54 A to Q conversion SM1000 to SM1255, SD1000 to SD1255 N/A
55 MELSOFT connection extended setting SM1258, SD1258, SD1259 N/A
56 IP address in-use SD1260 to SD1265 U3En\G50 to U3En\G65 (Own node IP address)
57 MAC address SD1266 to SD1268 U3En\G74 to U3En\G76 (Own node MAC address)
58 Time setting function (SNTP) related information SM1270, SD1270 to SD1275*1 U3En\G290 to U3En\G299*1 59 Remote password mismatch count clear SM1273 N/A
60 Forced connection invalidation SD1276, SD1277 U3En\G280, U3En\G281 61 Open completion signal, open request signal,
reception status signal
SD1282, SD1284, SD1286 SD1504, SD1505, SD1506
62 Built-in Ethernet port connection status SD1288 N/A 63 Ethernet basic time-out time SD1289 N/A
64 IP address change function related information SM1292 to SM1297, SD1292 to SM1299 SM1520 to SM1523, SD1520 to SD1527 65 Predefined protocol function related information SM1354, SM1355*2, SD1359 to SD1381 U3En\G692, U3En\G710 to U3En\G729 66 Built-in Ethernet port counter SD1395 U3En\G226 (Receive FIFO overflow count) 67 Fuse blown module SD1300 to SD1331 N/A
68 I/O module verification SD1400 to SD1431 N/A
*1 Different types of data are stored in these areas of the RCPU. For this reason, the areas are not converted automatically by editing with "Open Other Format File".
*2 SM1355 for QnUDVCPU cannot be used in the RCPU.
69 CPU module data backup/restoration function related information
SM916, SM922, SM923, SM924, SM1925, SM1926, SM1928, SM1929, SM1931, SD910, SD912 to SD928, SD1925, SD1926, SD1928
SM953, SM959, SM960, SM961, SM1350, SM1351, SM1353, SM1354, SM1356, SD944, SD947 to SD960, SD1350, SD1351, SD1353 70 Data logging SM1940 to SM2037, SD1940 to SD2036 SM1210 to SM1307, SD1210 to SD1306
■
Extended data register (D) and extended link register (W)
The RCPU does not support the use of the extended data register (D) and extended link register (W).
Increase the device area capacity, and increase the number of points for the data register (D) and link register (W) in CPU
parameter. (To increase the device area capacity, decrease the file storage area capacity.)
• PLC parameter setting window (GX Works2)
• CPU parameter setting window (GX Works3)
Change the capacity from 40K words (default) to 60K words.
Change the capacity from 128K words (default) to 108K words.
■
Local devices
Describe local devices in the ladder with "#" in the RCPU.
Note that "#" is not required to describe the index register (Z) and the file register (R/ZR) used in each program. For the
RCPU, a local device file does not need to be specified, but the area for local devices must be secured in memory.
• PLC parameter setting window (GX Works2)
• CPU parameter setting window (GX Works3)
Change the capacity from 128K words (default) to 100K words.
(Secure the local device area capacity.)
Detailed Setting (Local Device setting)
Set the local index register points. Program Setting
• Program (MAIN/MAIN1) (GX Works3)
■
File name
The RCPU handles file names as Unicode data. Specify the file name in Unicode when reading a file in the CPU module from
an external device, such as an FTP client.
File names described as string data (using " ") in the program are recognized as Unicode. However, if file names stored in the
device is included in the program, the program needs to be corrected for the MELSEC iQ-R series.
Describe the device with #.
Functions
*1 The use of some functions is restricted depending on the firmware version. For details, refer to the following manual.
MELSEC iQ-R CPU Module User's Manual (Application) (SH-081264ENG)
No. Item QnUDVCPU RCPU Reference
1 SFC program MELSAP3/MELSAP-L (GX Works2)
SFC program/MELSAP-L (GX Works3)
Page 29 SFC program
2 Online change (inactive block) Not supported
3 Sampling trace function Sampling trace function Not supported Page 29 Sampling trace function 4 Latch data backup to standard
ROM
Latch data backup to standard ROM
Not supported Page 29 Latch data backup to standard ROM
5 CPU module change function with memory card
CPU module change function with memory card
Not supported Page 29 CPU module change function with memory card 6 Monitor Monitor condition setting Not supported Page 29 Monitor condition setting 7 Executional conditioned device test Not supported Page 30 Executional conditioned
device test
8 Execution time measurement Scan time measurement Not supported Page 31 Scan time measurement 9 MELSEC-A series compatible
function
Access by using A-compatible 1C/ 1E frame (A to Q converted SM/SD areas (SM1000 to SM1255, SD1000 to SD1255))
Not supported Page 31 Access by using A-compatible 1C/1E frame (A to Q converted SM/SD areas (SM1000 to SM1255, SD1000 to SD1255)) 10 High-speed interrupt function High-speed interrupt (I49):
high-speed I/O refresh function and high-speed transfer function
I49 interrupt (Set an event execution type program which will be triggered by the interrupt pointer I49, and perform refresh for each program.)
Page 32 High-speed interrupt function: high-speed I/O refresh function and high-speed transfer function
11 Service processing Service processing setting Device/label access service processing setting
Page 33 Service processing
12 Data logging function Data logging file transfer function Not supported Page 34 Data logging file transfer function
13 Multiple CPU function Access to the host CPU operation information area (U3En\G0 and later) in CPU shared memory
Not supported Page 36 Access to the host CPU operation information area in CPU shared memory
14 Multiple CPU high speed transmission area (U3En\G10000 and later) in the cyclic transmission area device
Fixed scan communication area (U3En\HG0 and later) in the CPU buffer memory access device
Page 36 Access to the multiple CPU high speed transmission area
15 Refresh using the multiple CPU high speed transmission area (Data are refreshed during END processing.)
Refresh using the fixed scan communication area (Data are refreshed at execution of the multiple CPU synchronous interrupt program (I45).)
Page 37 Refresh using the multiple CPU high speed transmission area
16 File password and remote password
File password 32 (Length: 4 to 32 characters)
File password (Length: 6 to 32 characters)
Page 38 File password and remote password
17 Remote password (Length: 4 characters)
Remote password (Length: 6 to 32 characters)
18 Self-diagnostic function Error clear (Continuation errors can be cleared by types.)
Error clear (Continuation errors being detected are batch-cleared.)
Page 38 Self-diagnostic function
19 MELSOFT connection extended setting
Access by specifying network and station number
Not supported
■
SFC program
SFC programs can be used in the RCPU (GX Works3). However, the operation method of the engineering tool is different. For
details on the operation method of GX Works3, refer to the following.
GX Works3 Operating Manual (SH-081215ENG)
When reading the MELSAP3/MELSAP-L SFC programs created with GX Works2, refer to the following technical bulletin.
Considerations for opening SFC programs in GX Works2 format with GX Works3 (FA-A-0192)
■
Sampling trace function
The RCPU does not support the sampling trace function.
Use the trigger logging of the data logging function instead. Note that an SD memory card is required to store data because
the CPU built-in memory cannot be used as data storage destination in the RCPU.
■
Latch data backup to standard ROM
The RCPU does not support the latch data backup to standard ROM function.
Use the CPU module data backup/restoration function instead. Or, read data by using GX Works3 and store the data or write
the data back again to the CPU module.
■
CPU module change function with memory card
The RCPU does not support the CPU module change function with memory card.
Use the CPU module data backup/restoration function instead. Or, read data by using GX Works3 and store the data or write
the data back again to the CPU module.
■
Monitor condition setting
The RCPU does not support the monitor condition setting.
Use the trigger logging of the data logging function instead.
■
Executional conditioned device test
The RCPU does not support the executional conditioned device test.
To change a device value at the specified step, execute the online change function, and add a replacement program to the
desired position. (Delete the program to disable the processing.)
If the execution timing is set to before execution of an instruction in the QnUDVCPU program, add a program for the device
test before the corresponding step in the RCPU program. If the execution timing is set to after execution of an instruction, add
a program after the corresponding step.
• Program and Device Test with Execution Condition window (GX Works2)
Executional conditioned device test setting for (1)
Executional conditioned device test setting for (2)
(1) Without depending on the program before
the instruction, turn on M100 and execute
the instruction.
• Program (GX Works3)
■
Scan time measurement
The RCPU does not support the scan time measurement.
To check the scan time of programs being executed, use the program list monitor.
Refer to the instruction processing time list in the MELSEC iQ-R Programming Manual (Instructions, Standard Functions/
Function Blocks) (SH-081266ENG) to calculate the processing time of the specified program section.
■
Access by using A-compatible 1C/1E frame (A to Q converted SM/SD areas (SM1000 to SM1255,
SD1000 to SD1255))
The RCPU does not support the access by using A-compatible 1C/1E frame. (The A to Q converted SM/SD areas (SM1000 to
SM1255, SD1000 to SD1255) cannot be used.) Use the SLMP or the QnA-compatible 3E/3C frame instead, and access the
SM/SD areas of the RCPU.
<Program before change>
<Program after change>
Add this program to change the value in D200 to K500
and execute the program after this step regardless of
the operation result.
Add this program to turn on M100 and execute
the instruction without depending on the program
before the instruction.
■
High-speed interrupt function: high-speed I/O refresh function and high-speed transfer function
To perform the high-speed interrupt function with the RCPU, set an event execution type program which will be triggered by
the interrupt pointer I49 in CPU parameter (Program Setting) so that refresh is performed for each program separately.
To perform I/O refresh or transfer of the buffer memory, set refresh target data or refresh timing in "Module Parameter" of the
target module.
• PLC parameter setting window and program (GX Works2)
PLC Parameter
<System configuration>
Analog
module
CPU
module
Power
supply
module
<GX Works2>
Program
• CPU parameter setting window, module parameter setting window, and program (GX Works3)
■
Service processing
The RCPU performs file access processing, such as reading program files, without being synchronized with each scan (not
during END processing) so that the scan time will not be delayed due to the processing.
For this reason, the response performance does not improve even though the number of processing counts is increased in
the device/label access service processing setting. (The response performance does not improve either even though the
COM instruction is used.)
On the other hand, the RCPU performs device access processing, such as reading device data, during END processing.
Therefore, the response performance of device access processing can be improved by increasing the number of processing
counts in the device/label access service processing setting or by using the COM instruction.
<System configuration>
<GX Works3>
Analog
module
CPU
module
Power
supply
module
CPU Parameter
Interrupt Settings
Program Setting
Module Parameter
Program (scan execution type)
Main routine program
Program (event execution type)
■
Data logging file transfer function
The RCPU does not support the data logging file transfer function.
Use the FTP server function of built-in Ethernet and load logging result files in the CPU module to the server, such as a
personal computer.
• File transfer window (CPU Module Logging Configuration Tool)
• Command Prompt window for FTP file transfer (FTP server)
226 Transfer complete.
150 Opening connection.
200 Port command successful.
mget 2:\logging\log01\00000001\00000001.TXT? y
200 TYPE is now ASCII.
ftp> mget 2:\logging\log01\00000001\*.txt
230 User logged in.
Password:
331 Password required.
User (192.0.1.254(none)):RCPU
220 iQ-R FTP server ready.
Connected to 192.0.1.254
FTP> open 192.0.1.254
C:\>FTP
■
Access to the host CPU operation information area in CPU shared memory
The RCPU does not have the host CPU operation information area (U3En\G0 and later) in CPU shared memory. If the host
CPU operation information area is used in the MELSEC-Q series program, the program needs to be corrected for the
MELSEC iQ-R series.
To check the operation information of another CPU module, refresh the data in the corresponding special register (SD) to the
CPU shared memory, and then access to the data stored in the memory.
■
Access to the multiple CPU high speed transmission area
Area used for data communications among multiple CPU modules has been extended in the RCPU. The multiple CPU high
speed transmission area is included in the fixed scan communication area, and the addresses have been changed from
U3En\G10000 and later to U3En\HG0 and later.
If the multiple CPU high speed transmission area is used in the MELSEC-Q series program, the program needs to be
corrected for the MELSEC iQ-R series.
When the QnUDVCPU project created by using GX Works2 is opened by "Open Other Format File" in GX Works3 and edited,
the addresses U3En\G10000 and later are automatically converted to U3En\HG0 and later. Note, however, that if the fixed
scan communication area is accessed by using the FROM/TO instructions, the access method needs to be corrected. Use the
data transfer instruction and CPU buffer memory access device, (example: MOV U3En\HG* D0) instead of the FROM/TO
instructions.
• Program that accesses the multiple CPU high speed transmission area (GX Works2)
■
Refresh using the multiple CPU high speed transmission area
The RCPU performs multiple CPU refresh at two timings: during END processing and at execution of the multiple CPU
synchronous interrupt (I45). Since refresh timing differs, if refresh using the multiple CPU high speed transmission area is set
in the MELSEC-Q series program, the program needs to be corrected for the MELSEC iQ-R series.
To perform refresh during END processing (the same timing as the QnUDVCPU), set the refresh timing in system parameter
("Refresh Setting (At the END)" under "CPU Buffer Memory Setting").
• PLC parameter setting window (Multiple CPU Setting) and refresh timing (GX Works2)
END END
Interrupt program (I45)
Scan execution type program
• System parameter setting window (Multiple CPU Setting) and refresh timing (GX Works3)
■
File password and remote password
The number of characters in a password differs between the QnUDVCPU and the RCPU. Set a password within the range of
6 to 32 characters for the RCPU.
Also, change the number of characters in a password of an external device in accordance with the password set to the RCPU
if there is any external device, such as an FTP client, that accesses the programmable controller.
■
Self-diagnostic function
The RCPU batch-clears all the continuation errors being detected.
The delete-target continuation error does not need to be specified individually.
The error code system has been renewed for the RCPU. If an error code is set as an operating condition or interlock condition
in the MELSEC-Q program, the program needs to be corrected for the MELSEC iQ-R series.
END END
Interrupt program (I45)
Scan execution type program
Time Multiple CPU refresh (Reading/writing data from/to other CPU modules)
C controller module (Q12DCCPU-V and other Q series C Controller modules, and
R12CCPU-V)
This section describes the differences of C Controller modules between the MELSEC-Q series and the MELSEC iQ-R series.
For details on the MELSEC iQ-R series modules, refer to the following manuals.
MELSEC iQ-R C Controller Module User's Manual (Startup) (SH-081367ENG)
MELSEC iQ-R C Controller Module User's Manual (Application) (SH-081369ENG)
For the methods for replacing a MELSEC-Q series program to a MELSEC iQ-R series program, refer to the following manual.
MELSEC iQ-R C Controller Module Programming Manual (SH-081371ENG)
Supported Software Packages
The following table shows the supported versions of main software packages related to C Controller modules.
: Not supported
Functions
For the differences of functions, refer to the following manual.
MELSEC iQ-R C Controller Module Programming Manual (SH-081371ENG)
Parameters
In CW Configurator, parameters of a programmable controller can be set on a module configuration diagram, as if to configure
the actual system.
When it is possible to connect the actual system configuration, parameters can be set by reading the configuration.
Parameters also can be set in the Navigation window in the same way as Setting/monitoring tools for the C Controller module.
Parameters of functions in common with a CPU module are set by using an interface equivalent to GX Works2/GX Works3 in
Setting/monitoring tools for the C Controller module/CW Configurator.
For the basic differences of the parameter configuration, refer to the section for CPU modules.
Page 16 Parameters
Software package Q06CCPU-V Q12DCCPU-V Q24DHCCPU-V R12CCPU-V
Setting/ monitoring tool
CW Configurator SW1DND-RCCPU-J/E Version 1.00A or later
Setting/monitoring tools for the C Controller
SW4PVC-CCPU-J/E Version 4.00A or later
Version 4.00A or later
SW3PVC-CCPU-J/E Version 3.00A or later
Engineering tool
CW Workbench SW1DND-CWWR-E/EZ/EVZ Version 1.00A or later
SW1DND-CWWLQ24-E/EZ Version 1.00A or later
SW1DND-CWWLQ12-E/EZ Version 1.00A or later VxWorks simulator for CW Workbench
CW-Sim SW1DND-CWSIMR-EZ Version 1.00A or later
SW1DNC-CWSIM-EZ Version 1.00A or later
Version 1.00A or later
CW-Sim Standalone SW1DNC-CWSIMSAR-E Version 1.00A or later
SW1DNC-CWSIMSA-E Version 1.00A or later
Version 1.00A or later
Wind River Workbench Version 3.2 Version 3.2 Version 3.3
Devices
There is no change in I/O devices and link direct devices.
For other devices, available points increase in MELSEC iQ-R series C Controller modules.
The following table shows devices which their names were changed to or which are newly available.
Some of the SM/SD number assignments differ. Also, some SM/SD areas are used for different purposes. If SM/SD is used in
the MELSEC-Q series program, the program needs to be corrected for MELSEC iQ-R series. For details, refer to the user's
manual of a CPU module used.
MELSEC-Q series MELSEC iQ-R series
Intelligent function module device (Un\G) Module access device (Un\G)
Cyclic transmission area device (U3En\G) CPU buffer memory access device (U3En\G)
Not supported Fixed scan communication area access device (U3En\HG) File register (ZR)
3.3
I/O Module
This section describes the differences of I/O modules between the MELSEC-Q series and the MELSEC iQ-R series.
Connector type
Interrupt function (interrupt module)
To use the interrupt function in the MELSEC iQ-R series system, use an input module. Set the interrupt function in module
parameter of the input module used.
Parameters
No. Item MELSEC-Q series (QX81, QX81-S2, QY81P)
MELSEC iQ-R series (RX41C4, RX41C6HS, RY41PT1P)
1 Connector 37-pin D-sub connector 40-pin connector
No. Item MELSEC-Q series MELSEC iQ-R series
1 Input response time setting I/O assignment setting of PLC parameter Module parameter 2 Interrupt setting
3.4
Analog Module
Analog-digital converter modules
This section describes the differences of analog-digital converter modules between the MELSEC-Q series (Q64AD/Q68ADV/
Q68ADI) and the MELSEC iQ-R series (R60AD4/R60ADV8/R60ADI8).
For details on the MELSEC iQ-R series, refer to the following manual.
MELSEC iQ-R Analog-Digital Converter Module User's Manual (Application) (SH-081233ENG)
Dedicated instructions
There is no difference between MELSEC-Q series and MELSEC iQ-R series.
Parameters
I/O signals and buffer memory areas
The layouts of I/O signals and buffer memory areas differ between the MELSEC-Q series and the MELSEC iQ-R series.
If I/O signals and buffer memory areas are used in the MELSEC-Q series program, the program needs to be corrected for the
MELSEC iQ-R series.
In Q compatible mode, the MELSEC-Q series program can be used as it is except for the differences in the signals and
functions listed below.
Function
■
Resolution mode switching function
The MELSEC iQ-R series modules do not support the resolution mode switching function because the resolution has already
been enhanced.
By using the scaling function, a converted value which is equivalent to that in the MELSEC-Q series can be determined.
Note that the converted value is stored into the "Digital operation value" area, and thus has a different buffer memory address
to be referred.
■
Temperature drift compensation function
The MELSEC iQ-R series modules do not support the temperature drift compensation function because the accuracy has
already been enhanced. (The accuracy is comparable to that of the MELSEC-Q series with the temperature drift
compensation function used.) If the function is used in the MELSEC-Q series program, the program needs to be corrected for
the MELSEC iQ-R series.
No. MELSEC-Q series MELSEC iQ-R series
1 Error time output mode I/O assignment setting of PLC parameter Module parameter 2 Switch setting Intelligent function module parameter
3 Parameters (each setting) 4 Auto refresh
No. Signal name MELSEC-Q series MELSEC iQ-R series
1 X1 Temperature drift compensation flag Not supported 2 X8 High resolution mode status flag Alert output signal
No. Item MELSEC-Q series MELSEC iQ-R series Reference
1 Resolution mode switching function Resolution mode switching function Not supported Page 42 Resolution mode switching function 2 Temperature drift compensation
function
Temperature drift compensation function
Channel isolated analog-digital converter module
This section describes the differences of channel isolated analog-digital converter modules between the MELSEC-Q series
(Q68AD-G) and the MELSEC iQ-R series (R60AD8-G).
For details on the MELSEC iQ-R series, refer to the following manual.
MELSEC iQ-R Channel Isolated Analog-Digital Converter Module User's Manual (Application) (SH-081487ENG)
Dedicated instructions
There is no difference between the MELSEC-Q series and the MELSEC iQ-R series.
Parameter
I/O signals and buffer memory areas
The layouts of I/O signals and buffer memory areas differ between the MELSEC-Q series and the MELSEC iQ-R series.
If I/O signals and buffer memory areas are used in the MELSEC-Q series program, the program needs to be corrected for the
MELSEC iQ-R series.
In Q compatible mode, the MELSEC-Q series program can be used as it is except for the differences in the signals and
functions listed below.
Function
■
Resolution mode switching function
The MELSEC iQ-R series modules do not support the resolution mode switching function because the resolution has already
been enhanced.
By using the scaling function, a converted value which is equivalent to that in the MELSEC-Q series can be determined.
Note that the converted value is stored into the "Digital operation value" area, and thus has a different buffer memory address
to be referred.
No. MELSEC-Q series MELSEC iQ-R series
1 Error time output mode I/O assignment setting of PLC parameter Module parameter 2 Switch setting Intelligent function module parameter
3 Parameters (each setting) 4 Auto refresh
No. Signal name MELSEC-Q series MELSEC iQ-R series
1 X7 High resolution mode status flag Not supported
No. Item MELSEC-Q series MELSEC iQ-R series Reference
Digital-analog converter module
This section describes the differences of digital-analog converter modules between the MELSEC-Q series (Q64DAN/
Q68DAIN/Q68DAVN) and the MELSEC iQ-R series (R60DA4/R60DAI8/R60DAV8).
For details on the MELSEC iQ-R series, refer to the following manual.
MELSEC iQ-R Digital-Analog Converter Module User's Manual (Application) (SH-081237ENG)
Dedicated instructions
There is no difference between the MELSEC-Q series and the MELSEC iQ-R series.
Parameters
I/O signals and buffer memory areas
The layouts of I/O signals and buffer memory areas differ between the MELSEC-Q series and the MELSEC iQ-R series.
If I/O signals and buffer memory areas are used in the MELSEC-Q series program, the program needs to be corrected for the
MELSEC iQ-R series.
In Q compatible mode, the MELSEC-Q series program can be used as it is except for the differences in the signals and
functions listed below.
Functions
■
Resolution mode switching function
The MELSEC iQ-R series modules do not support the resolution mode switching function because the resolution has already
been enhanced.
By using the scaling function, a converted value which is equivalent to that in the MELSEC-Q series can be determined.
No. MELSEC-Q series MELSEC iQ-R series
1 Error time output mode I/O assignment setting of PLC parameter Module parameter 2 Switch setting Intelligent function module parameter
3 Parameters (each setting) 4 Auto refresh
No. Signal name MELSEC-Q series MELSEC iQ-R series
1 X8 High resolution mode status flag Not supported
2 XD Synchronous output mode flag Disconnection detection signal 3 YD Synchronous output request Not supported
No. Item MELSEC-Q series MELSEC iQ-R series Reference
Channel isolated digital-analog converter module
This section describes the differences of channel isolated digital-analog converter modules between the MELSEC-Q series
(Q66DA-G) and the MELSEC iQ-R series (R60DA8-G).
For details on the MELSEC iQ-R series, refer to the following manual.
MELSEC iQ-R Channel Isolated Digital-Analog Converter Module User's Manual (Application) (SH-081491ENG)
Dedicated instructions
There is no difference between the MELSEC-Q series and the MELSEC iQ-R series.
Parameters
I/O signals and buffer memory areas
The layouts of I/O signals and buffer memory areas differ between the MELSEC-Q series and the MELSEC iQ-R series.
If I/O signals and buffer memory areas are used in the MELSEC-Q series program, the program needs to be corrected for the
MELSEC iQ-R series.
In Q compatible mode, the MELSEC-Q series program can be used as it is except for the differences in the signals and
functions listed below.
Functions
■
Resolution mode switching function
The MELSEC iQ-R series modules do not support the resolution mode switching function because the resolution has already
been enhanced.
By using the scaling function, a converted value which is equivalent to that in the MELSEC-Q series can be determined.
No. MELSEC-Q series MELSEC iQ-R series
1 Error time output mode I/O assignment setting of PLC parameter Module parameter 2 Switch setting Intelligent function module parameter
3 Parameters (each setting) 4 Auto refresh
No. Signal name MELSEC-Q series MELSEC iQ-R series
1 X8 High resolution mode status flag Not supported
2 XD Not supported Disconnection detection signal
No. Item MELSEC-Q series MELSEC iQ-R series Reference
