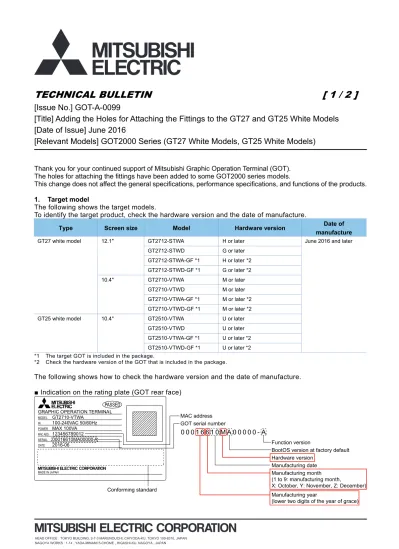

TECHNICAL BULLETIN
[ 1 /
2 ]
[Issue No.] GOT-A-0099
[Title] Adding the Holes for Attaching the Fittings to the GT27 and GT25 White Models
[Date of Issue] June 2016
[Relevant Models] GOT2000 Series (GT27 White Models, GT25 White Models)
Thank you for your continued support of Mitsubishi Graphic Operation Terminal (GOT).
The holes for attaching the fittings have been added to some GOT2000 series models.
This change does not affect the general specifications, performance specifications, and functions of the products.
1. Target
model

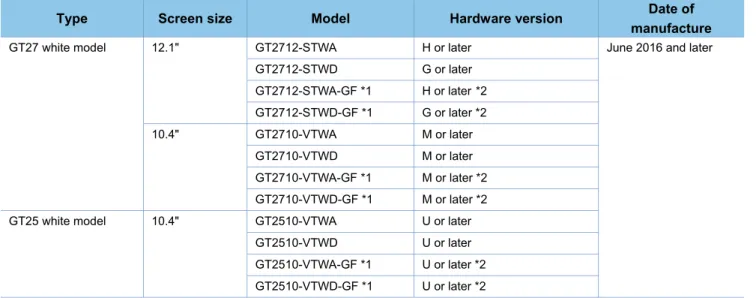

The following shows the target models.
To identify the target product, check the hardware version and the date of manufacture.
Type
Screen size
Model
Hardware version
Date of
manufacture
GT27 white model 12.1" GT2712-STWA H or later June 2016 and later
GT2712-STWD G or later
GT2712-STWA-GF *1 H or later*2
GT2712-STWD-GF *1 G or later *2
10.4" GT2710-VTWA M or later
GT2710-VTWD M or later
GT2710-VTWA-GF *1 M or later *2
GT2710-VTWD-GF *1 M or later *2
GT25 white model 10.4" GT2510-VTWA U or later
GT2510-VTWD U or later
GT2510-VTWA-GF *1 U or later *2
GT2510-VTWD-GF *1 U or later *2
*1 The target GOT is included in the package.
*2 Check the hardware version of the GOT that is included in the package.
The following shows how to check the hardware version and the date of manufacture.
■
Indication on the rating plate (GOT rear face)
Conforming standard
MAC address GOT serial number
Function version
BootOS version at factory default Hardware version
Manufacturing date
Manufacturing year
(lower two digits of the year of grace) Manufacturing month
(1 to 9: manufacturing month,
X: October, Y: November, Z: December) MODEL
DATE
MADE IN JA PAN SERIAL
MAC ADD. 123456789012
POWER
GRAPHIC OPERATION TERMINAL
PASSED IN GT2710-VTWA 2016-06 00016610MA00000-A MAX 100VA 100-240VAC 50/60Hz
TECHNICAL BULLETIN
[ 2
/ 2 ]
[Issue No.] GOT-A-0099
2. Details of change
The holes for attaching the fittings are added as shown below.
Location
Screen size
Before change
After change
Bottom of the GOT
12.1"
Right side of the GOT
12.1", 10.4"
Left side of the GOT
