TECHNICAL BULLETIN
[ 1 /
3 ]
[Issue No.] GOT-A-0102
[Title] Rating Plate and Caution Plate Changes of GOT2000 Series Compliant with Overseas
Standards
[Date of Issue] September 2016
[Relevant Models] GOT2000 Series (GT27 Models, GT25 Models)
Thank you for your continued support of Mitsubishi Graphic Operation Terminal (GOT).
Some GOT2000 series models have complied with the ATEX Directive and met the KCs certification requirements.
We have made some changes on the rating plate and the caution plates along with the compliance with the ATEX Directive and KCs certification.
This change does not affect the general specifications, performance specifications, and functions of the products. 1. Changes
The following shows changes made to the target models. 1.1 Rating plate
1) The Ex mark, use environment, and certification number have been added.
2) The KCs mark, use environment, certification number, and address of factory have been added. 3) The QR code has been relocated.
Before change After change
1)
TECHNICAL BULLETIN
[ 2
/ 3 ]
[Issue No.] GOT-A-0102
1.2 Warning and caution plates
Two warning plates have been added, and the descriptions on the battery caution plate have been changed.
12.1" *1 10.4" *1 8.4"
*1 The 12.1" or 10.4" GOT has the battery caution plate under the battery cover.
1) A warning plate about static electricity and low mechanical impact has been added.
2) A warning plate about the restrictions on using the extension interface has been added.
3) The descriptions on the battery caution plate have been changed.
Before change After change
1)
2)
3)
1)
2)
3)
1)
2)
TECHNICAL BULLETIN
[ 3
/ 3 ]
[Issue No.] GOT-A-0102
2. Target model
All the changes and additions described in Chapter 1 are made to the models that comply with the standards (ATEX, KCs).
Only the changes on the battery caution plate described in Section 1.2 are made to some models other the models.
2.1 Models complying with the standards (ATEX, KCs) The following shows the target models.
To identify the target product, check the hardware version and the date of manufacture.

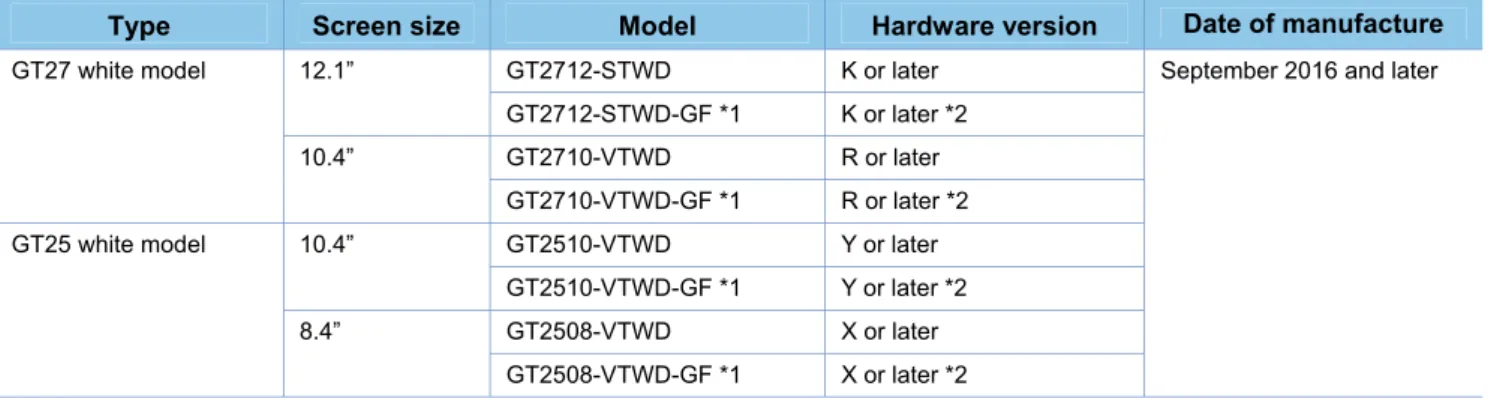

Type Screen size Model Hardware version Date of manufacture
GT27 white model 12.1” GT2712-STWD K or later September 2016 and later
GT2712-STWD-GF *1 K or later *2
10.4” GT2710-VTWD R or later
GT2710-VTWD-GF *1 R or later *2
GT25 white model 10.4” GT2510-VTWD Y or later
GT2510-VTWD-GF *1 Y or later *2
8.4” GT2508-VTWD X or later
GT2508-VTWD-GF *1 X or later *2 *1 The target GOT is included in the package.
*2 Check the hardware version of the GOT that is included in the package.
The following shows how to check the hardware version and the date of manufacture. ■ Indication on the rating plate (GOT rear face)
2.2 Models other than the ones complying with the standards (ATEX, KCs)
Only the changes on the battery caution plate described in Section 1.2 are made to these models. The following lists the target models.
GOT2000 series: GT27 models and GT25 models
(Except for the models described in Section 2.1 and GT2705)
These changes have been made sequentially from the September 2016 production of the above models. There may be cases where both the former and new products exist in the distribution stage.
REVISIONS
Version Print Date Revision
* September 2016 - First edition
Conforming standard
MAC address GOT serial number
Function version
BootOS version at factory default Hardware version
Manufacturing date
Manufacturing year
(lower two digits of the year of grace) Manufacturing month
(1 to 9: manufacturing month,
X: October, Y: November, Z: December) MODEL
DATE
MADE IN JA PAN SERIAL
MAC ADD. 123456789012
POWER
GRAPHIC OPERATION TERMINAL
PASSED IN GT2712-STWD 2016-09 00016920KA00000-A MAX 45W IN 24VDC
