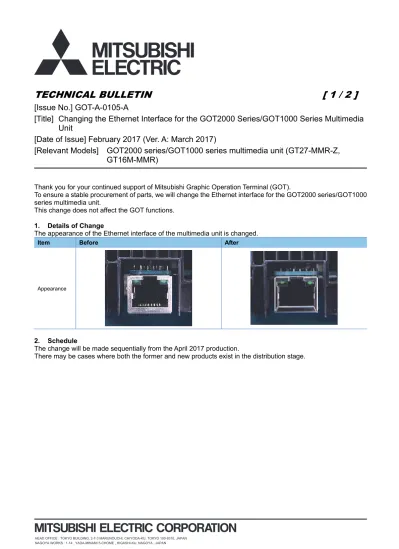

TECHNICAL BULLETIN
[ 1 /
2 ]
[Issue No.] GOT-A-0105-A
[Title] Changing the Ethernet Interface for the GOT2000 Series/GOT1000 Series Multimedia
Unit
[Date of Issue] February 2017 (Ver. A: March 2017)
[Relevant Models] GOT2000 series/GOT1000 series multimedia unit (GT27-MMR-Z,
GT16M-MMR)
Thank you for your continued support of Mitsubishi Graphic Operation Terminal (GOT).
To ensure a stable procurement of parts, we will change the Ethernet interface for the GOT2000 series/GOT1000 series multimedia unit.
This change does not affect the GOT functions.
1. Details of Change
The appearance of the Ethernet interface of the multimedia unit is changed.
Item Before After
Appearance
2. Schedule
The change will be made sequentially from the April 2017 production.
TECHNICAL BULLETIN
[ 2
/ 2 ]
[Issue No.] GOT-A-0105-A
3. How to check the target product
To identify the product with the appearance changed, check the hardware version and the date of manufacture.
Model Hardware version Date of manufacture
GT27-MMR-Z *1 H or later April, 2017 or later
GT16M-MMR S or later
*1 The hardware version of the supplied GT16-MMR-Z and GT27-IF1000 must satisfy the following conditions.
・GT16-MMR-Z: Version G or later
・GT27-IF1000: Version C or later
The hardware version and the date of manufacture can be checked with the rating plate.
REVISIONS
Version Print Date Revision
- February 2017 - First edition (Japanese only)
A March 2017 - Title corrections
Conforming standard
MAC address GOT serial number
Function version
BootOS version at factory default (When the number of digits for the BootOS version is 2, only the last digit is described.)
Hardware version Manufacturing date
Manufacturing year
(lower two digits of the year of grace) Manufacturing month
(1 to 9: manufacturing month,
X: October, Y: November, Z: December)
MODEL
MADE IN JA PAN SERIAL
MAC ADD. 1 2 3 4 5 6 7 8 9 0 1 2 M U LT I M E D I A I / F U N I T
PASSED
G T 1 6 M - M M R - Z
0 0 0 1 3 9 1 0 A A 0 0 0 0 0 - A 5VDC 0.27A 3.3VDC 0.51A
0 0 0 1 3 9 1 0 A A 0 0 0 0 0 - A DATE2016-09
