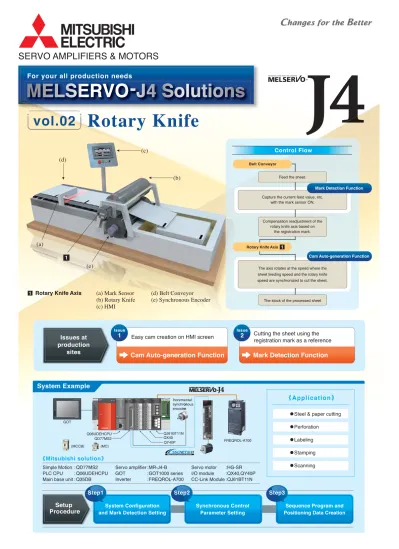

User-created HMI screen
Rotary knife speed
Sheet Belt conveyor speed
Virtual servo axis 2 start
Start signal reset M0
DX0E
BUSY
RST Y11 SET Y11 DMOVP U0 \
G54962 U0 \ G3006 U0 \ G1600 Position compensation data setting M1 MOVP K30 DX0E
Set start No. for auxiliary axis 2 Start the auxiliary axis to compensate the error
by adjusting the rotary knife. Registration
mark The sensor ON
This function can create a cam automatically according to the sheet length and synchronization width, and the rotary knife axis dimension, which greatly reduces the designing and programming time.
Reduced Designing and Programming Time
and Increased Ease of Use
Cam Auto-generation
Function
This function detects any fluctuations caused from the sheet tension or slippage when sending the sheet, and can cut the sheet at the set position by compensating these errors between the current sensed position and the standard position, referring to the registration mark.
Accurately Cutting by Responding
Dynamically to Any Fluctuations
Mark Detection
Function
Compensate the error using auxiliary axes for the output module.
Easy erro r compens
ation Easy cam
data creation Solution
1
Solution2
Time Time Sheet synchronization width Cam data Parameter settings (sheet length, etc.)Cam data
Auto-generated cam data for cutting the sheet:
Belt conveyor speed = Rotary knife speed
Sheet synchronization width Synchronous axis length (Rotary cutter length)
Sheet length Speed
Stroke ratio
Calculate the error compensation length from
the current feed value.
Capture the current feed value, etc.with the mark sensor ON.
Step1
Step2
Synchronous
Control Parameter
Setting
System
Configuration and
Mark Detection Setting
Step3
Sequence Program
and Positioning Data
Creation
Set the parameter where the rotary knife speed (axis 1) is synchronized to the belt conveyor speed.
Set the system configuration and mark detection.
Create the program that starts the inverter which drives the belt conveyor after the rotary knife (axis 1) synchronization starts.
Easy mar k
detection setting
System structure
Double click Double click
Synchronous control parameter
Double click
Mark detection setting window
Auxiliary shaft
Set the Axis #1 Synchronous Parameter to synchronize to the synchronous encoder.
Set the virtual servo amplifier to the auxiliary shaft.
Set the Cam axis length per cycle, Cam stroke amount, and Cam No., etc.
PLC CPU
Belt conveyor start M0
RST Y20 SET Y20 MOVP H1 U0 \
G36320
Axis 1 starts synchronous control M1
M0
Belt conveyor stop
Setup procedure
